Industrial Fuses - General Purpose Electronic Glass

Small dimension or minature fuses are a group of low voltage, general purpose fuses. Fuse dimensions are smaller than midget fuses, typically 1/4” x 1-1/4”, 1/4” x 1,” or 5mm x 20mm. These fuses are used to protect electronic circuits and components.

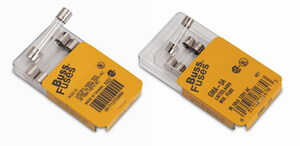

AutomationDirect offers six series of small dimension, general purpose electronic fuses with glass bodies.

AGC Series - 1/4” x 1-1/4” Fast-Acting fuses

MDL Series - 1/4” x 1-1/4” Time-Delay fuses

GMA Series - 5x20 mm Fast-Acting fuses

GMC Series - 5x20 mm Medium Time-Delay fuses

S500 Series - 5x20 mm Fast-Acting, RoHS compliant fuses

S506 Series - 5x20 mm Time-Delay RoHS compliant fuses

Select the "Technical Info" tab above (or see our catalog) to refer to the fuse selection guide, which includes a general summary of the specifications included for each fuse type.

This selection guide does not include the many variables that can exist for specific situations such as local codes, unusual temperature, or other operating conditions.

When selecting fuses, be sure to comply with any applicable PUBLIC SAFETY standards that apply to Overcurrent Protection Devices (OPD).

Part Numbering System
AGC1-5 = AGC 1.5 Amp Fuse

The first 3 (or 4) characters denote the Fuse Series designation (i.e. AGC, MDL, GMA, GMC, S500, S506 Series)
The remaining numbers* denote the Ampere Rating

* NOTE: “ - ” in the part number is used in place of a decimal point for amperage rating values

---

AGC Series - General Purpose Fast-Acting Glass Fuses Applications Supplemental protection for electronic applications Features: Fast-acting design responds quickly to both overload and short-circuit current Provide supplemental protection to end-use equipment Compact dimensions 1/4” x 1-1/4”, (6.3 mm x 32 mm) Glass tube construction, with nickel plated brass endcaps Specifications Fast-Acting Voltage Rating: refer to table Ampere Rating: 0.10 - 30 Amps Interrupting Rating: refer to table Agency Approvals UL Listed product meets standard 248-14 UL Listed Card: AGC 1/500-10 UL Recognition Card: AGC 11-30 CSA Component Acceptance Card (Class No. 1422 30) CSA Certification Card (Class No. 1422 01 For mounting and wiring AGC fuses see our DN-F6 Series fuse blocks in Terminal Blocks and Wiring Solutions.

---

MDL Series - General Purpose Time-Delay Glass Fuses Applications Supplemental protection for electronic applications Features: Compact dimensions 1/4” x 1-1/4”, (6.3mm x 32mm) Glass tube construction with nickel-plated brass end caps Slow-blow functionality Specifications Time-Delay Voltage Rating: refer to table Ampere Rating: 0.0625 - 20 Amps Interrupting Rating: refer to table Agency Approvals UL Listed product meets standard 248-14 UL Listed Card: MDL 1/16-8A (Guide JDYX, File E19180) UL Recognized Card: MDL 9-30A (Guide JDYX2, File E19180) CSA Certification Card: MDL 2/10-15 (Class No. 1422-01) For mounting and wiring MDL fuses, see our DN-F6 Series fuse blocks in Terminal Blocks and Wiring Solutions.

---

GMA Series - General Purpose 5x20 mm Fast-Acting Glass Fuses Applications Supplemental protection for electronic applications Features: Compact 5mm x 20mm dimensions (0.197” x 0.788”) Glass tube construction with nickel-plated brass end caps Fast-acting, low breaking capacity Specifications Fast-Acting Voltage Rating: refer to table Ampere Rating: 0.063 - 15 Amps Interrupting Rating: see table Agency Approvals Designed to UL/CSA 248-14 UL Listed, Guide JDYX, File E19180 63 mA-6A UL Recognition, Guide JDYX2, File E19180, 7A-15A CSA Certified, Class 1422-01, File 053787_C_000, 63 mA-6A For mounting and wiring GMA fuses, see our DN-F10 Series fuse blocks in Terminal Blocks and Wiring Solutions.

---

GMC Series - General Purpose 5x20 mm Glass Medium Time-Delay Fuses Applications Supplemental protection for electronic applications Features: Compact 5mm x 20mm dimensions (0.197” x 0.788”) Glass tube construction with nickel-plated brass end caps Medium time-delay, low breaking capacity Specifications Time Delay Voltage Rating: refer to table Ampere Rating: 0.5 - 10 Amps Interrupting Rating: refer to table Agency Approvals Designed to UL/CSA 248-14 UL Listed, Guide JDYX, File E19180, 63 mA-6.3A UL Recognition, Guide JDYX2, File E19180, 7A-8A CSA Certified, Class 1422-01, File 053787_C_000, 63 mA-6.3A For mounting and wiring GMC fuses see our DN-F10 Series fuse blocks in Terminal Blocks and Wiring Solutions.

---

S500 Series - General Purpose 5x20 mm Fast-Acting Glass Fuses Applications Supplemental protection for electronic applications Features: RoHS Compliant Compact 5mm x 20mm dimensions (0.197” x 0.788”) Glass tube construction with nickel-plated brass end caps Fast-acting, low breaking capacity Designed to IEC 60127-2 (32 mA-6.3A) Specifications Fast-Acting Voltage Rating: refer to table Ampere Rating: 0.5 - 10 Amps Interrupting Rating: refer to table Agency Approvals UL Recognized Card: (160 mA-10A) Guide JDYX2, File E19180 Semko Approval 160 mA-400 mA and 800 mA-10A VDE Approval 160 mA-10A BSI Approval 160 mA-10A RoHS For mounting and wiring S500 fuses see our DN-F10 Series fuse blocks in Terminal Blocks and Wiring Solutions.

---

S506 Series - General Purpose 5x20 mm Time-Delay Glass Fuses Applications Supplemental protection for electronic applications Features: RoHS Compliant Compact 5mm x 20mm dimensions (0.197” x 0.788”) Glass tube construction with nickel-plated brass end caps Time-delay, low breaking capacity Designed to IEC 60127-2 (32 mA-10A) Specifications Fast-Acting Voltage Rating: refer to table Ampere Rating: 0.25 - 6.3 Amps Interrupting Rating: refer to table Agency Approvals UL Recognized Card: (32 mA-10A) Guide JDYX2, File E19180 Semko Approval 32 mA-10A VDE Approval 32 mA-10A BSI Approval 32 mA-10A IMQ Approval 32 mA-10A MITI Approval, 32 mA-10A RoHS For mounting and wiring S506 fuses see our DN-F10 Series fuse blocks in Terminal Blocks and Wiring Solutions.

For more details - select the "Products" tab and click on the desired "Item Code", or select the "Technical Info" tab.
