NITRA™ Pneumatic Cylinder Position Switches - CPS Series

New! ... NITRA Position Switches - interfacing pneumatic actuators and electrical control systems

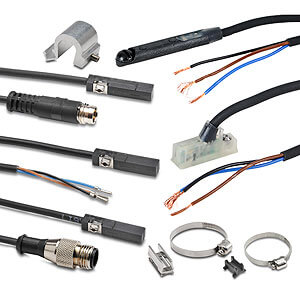

The NITRA CPS Series of pneumatic position switches offers a robust, yet cost-effective interface between pneumatic actuators and electrical control systems. Using state-of-the-art AMR magnetic sensing technology, these magnetic cylinder switches are designed for use with pneumatic cylinders that have a magnet incorporated in the cylinder piston. These cylinder sensors can be used to provide cylinder position indication, cycle count or to confirm operation. The NITRA CPS Series cylinder switches are available in 3-wire DC, PNP normally open, PNP normally closed, and NPN normally open electronic solid state switch configurations with either an M8 wiring connector or wire leads. Designed to provide a low profile, flush installation on cylinders with T-slot channels, these switches are also easily mounted on round body cylinders using CPSB series mounting bands. Integral LED indication provides switch status for speedy switch positioning and troubleshooting. Pre-tested for use with NITRA pneumatic cylinders, these cylinder switches are also suitable for use with other brands of cylinders with magnetic pistons. NITRA pneumatic cylinder position sensors are priced from $18.75 Features Electronic switch output, PNP or NPN, normally open and normally closed Solid state reliability, no moving parts for longer life AMR sensing technology with small hysteresis for precise sensing Compact and easy to mount on round body and T-slot pneumatic cylinders LED switch status indication Available with an M8 wiring connector or 2-meter integral cable with wire leads Electronic cylinder switch performance at mechanical reed switch prices Complete NITRA Cylinder Position Switches Overview

NITRA™ Pneumatic Cylinder Position Switches Part No. Description Price CPS-AP-F NITRA magnetic cylinder position sensing switch; normally open, PNP transistor output; 0.3 meter (0.98 ft) pigtail, M8 snap-fit connector. $19.75 CPS-CP-F NITRA magnetic cylinder position sensing switch; normally closed, PNP transistor output; 0.3 meter (0.98 ft) pigtail, M8 snap-fit connector. $19.75 CPS-AN-F NITRA magnetic cylinder position sensing switch; normally open, NPN transistor output; 0.3 meter (0.98 ft) pigtail, M8 snap-fit connector. $19.75 CPS-AP-A NITRA magnetic cylinder position sensing switch; normally open, PNP transistor output; 2 meter (6.56 ft) cable with wire leads. $18.75 CPS-CP-A NITRA magnetic cylinder position sensing switch; normally closed, PNP transistor output; 2 meter (6.56 ft) cable with wire leads. $18.75 CPS-AN-A NITRA magnetic cylinder position sensing switch; normally open, NPN transistor output; 2 meter (6.56 ft) cable with wire leads. $18.75

NITRA™ Cylinder Switch Mounting Bands Part No. Description Price CPSB-07 Mounting band to secure cylinder position switch to a 5/16, 7/16, 9/16 inch (or 8, 10, 12, 16 mm) bore pneumatic round body cylinder. $2.50 CPSB-14 Mounting band to secure cylinder position switch to a 3/4, 7/8 inch (or 20 mm) bore pneumatic round body cylinder. $2.75 CPSB-20 Mounting band to secure cylinder position switch to a 1-1/16 or 1-1/4 inch (or 25, 32 mm) bore pneumatic round body cylinder. $3.00 CPSB-24 Mounting band to secure cylinder position switch to a 1-1/2, 1-3/4 inch (or 40 mm) bore pneumatic round body cylinder. $3.25 CPSB-32 Mounting band to secure cylinder position switch to a 2 inch (or 50 mm) bore pneumatic round body cylinder. $3.50

For more details, select the "Products" tab and click on the desired "Item Code", or select the "Technical Info" tab.
