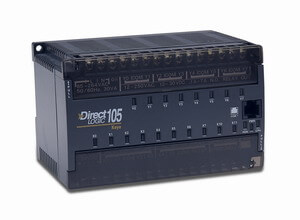

DirectLOGIC 105 Micro Programmable Logic Controller (DL105)

10 inputs and eight outputs
2 K program memory
384 words data memory
91-instruction programming includes time or event-based drum sequencer, timed interrupt, immediate I/O, etc.
7 amp relay outputs
One RS-232C communication port
Removable terminal connectors
Eight I/O configurations
110/ 220 VAC or 24 VDC power supply versions
Built-in 24 VDC auxiliary power supply for field devices
DeviceNET slave I/O blocks

DL105 PLC prices start at $179.00 .

Complete DL105 Overview

DeviceNET slaves offer affordable I/O nodes

Connect these DeviceNET slaves (F1-DVNET models) to any DeviceNET master for inexpensive nodes of I/O in the following configurations: DC in/Relay out, AC in/Relay out, and DC in/DC out. You get all the same macro I/O features - powerful relays, high-speed I/O modes, plus a built-in RS232 communications port for ASCII device interface.

Use the DL105 micro PLC to:

Build an electronic drum sequencer with 18 I/O and connect an operator interface without paying a high price
Drive high-current (up to seven amps) loads with the AC/ relay model
Use the high-speed I/O modes of a DC input or output model to perform counting or positioning tasks

Note: For more details, select the "Products" tab and click on the product "Item Code", or select the "Technical Info" tab.
