DirectLOGIC 205 (DL205) PLC Relay Outputs

The DL205 offers relay output modules in 4, 8 and 12-point versions, including:

4-point relay output modules

• D2-04TRS - 4 pt. 5-30 VDC or 5-240 VAC isolated relay output module, 4 Form A (SPST) relays, 4 commons, 4A/point, 8.0A/module, replaceable fuse, removable terminal

8-point relay output modules

• D2-08TR - 8 pt. 5-30 VDC or 5-240 VAC relay output module, 8 Form A (SPST) relays, 1 common (2 common terminals), 1A/point, 4.0A/module, replaceable fuse, removable terminal


• F2-08TR - 8 pt. 12-28 VDC or 12-250 VAC relay output module, 8 Form A (SPST) relays, 2 isolated commons, 10A/common max., no fuses, removable terminal


• F2-08TRS - 8 pt. 12-28 VDC or 12-240 VAC relay output module, 5 Form A (SPST) relays, 3 Form C (SPDT) relays. 8 isolated commons, 7A/point max., no fuses, removable terminal

12-point relay output modules

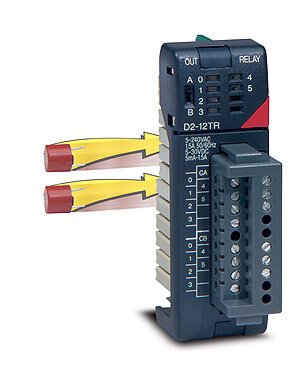

• D2-12TR - 12 pt. 5-30 VDC or 5-240 VAC relay output module, 12 Form A (SPST) relays, 2 commons, 1.5A/point max., 3.0A/common, 2 replaceable fuses, removable terminal

Combo relay output modules

• D2-08CDR - 4 pt. 24VDC sinking/sourcing input, 1 common, 4 pt. relay output, 1A/pt., 4A/module, 1 common, replaceable fuse
