22mm Plastic Push buttons / Push Switches / Panel Indicator Lights

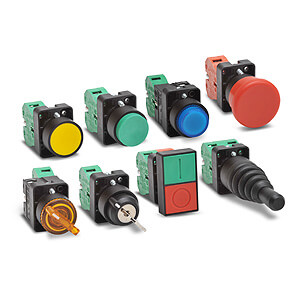

22mm Plastic Push buttons, Selector Switches, and Monoblock Indicators
This rugged yet economical line of 22mm plastic pilot devices provides solutions for all your operator control panel designs.
Nothing has been sacrificed to offer you the highest quality plastic push button switches, LED indicator lights, and momentary switch
products at the lowest prices. Choose from a complete line of illuminated or non-illuminated push button switch products and
e stop switch and rotary switch products. A variety of push button switch accessories are also available.
Features include:
- Support base mounts into panels up to 6 mm thick. Secure mounting method eliminates twisting in mounting hole
- Self-cleaning gold-plated silver contacts provide reliable low energy switching
- Mount up to six contact blocks in any combination to a support base (two wide by three deep)
- Pressure plate wire terminals for easy, secure wiring, accept up to 14 AWG wire
- Contacts rated at 10 amps thermal current
- Six colors available in push buttons, illuminated push buttons and indicator lights, including red, green, yellow, blue and white (clear for indicating devices)
- IP65 Rating after installation (Start/Stop combos are IP40)
- RoHS compliant
|
 |
22mm Plastic Pilot Devices Selection Guide
from $4.75
(GCX3100) |
Non-Illuminated
- GCX3100 Series
- Momentary 30mm operator mounts in 22mm hole
- Available in six colors: black, red, yellow, blue, white and green
- Flush or extended actuators available
- One contact block included or sold separately
- ON/OFF models also available
|
from $9.50
(GCX3201-24) |
Illuminated
- GCX3200 Series
- LED and incandescent models
- Colors: red, green, yellow, blue, clear, white
- Momentary and push-push styles
- Flush or extended push button operators available
- 24 and 120-volt models
- One contact block included
|
from $10.50
(GCX3191-24) |
Push ON/OFF Illuminated
- GCX3190 Series
- Latching Push-ON/ Push-OFF actuator
- 24V and 120V with incandescent lamp in six colors
- 24V and 120V with LED lamp in six colors
- Replacement bulbs are available
- 24V and 120V lamps can be ordered separately
- One N.O. contact block included
|
from $7.50
(GCX3134)
|
Mushroom
- GCX3220 Series
- Available in momentary and twist-to-release
- One contact block included
- Also available in incandescent and LED illuminated push button models
|
|
from $9.25
(GCX3131)
|
Emergency Stop
- GCX3100 Series
- Large 60mm actuator, mounts in standard 22mm hole
- Available in momentary, twist-to-release, and key release
- Non-illuminated
- Yellow E-STOP legend ring available
- One N.C. contact block included
|
from $9.50
(GCX3150)
|
Two Way, Start / Stop Combos
- GCX3150 Series
- Two way on/off control
- With or without illuminated indicators
- One N.O. and one N.C. contact block included
|
from $7.25
(GCX3300)
|
Selector Switches
- GCX3200 & 3300 Series
- Two and three-position in maintained and spring return
- non-illuminated and illuminated models
- Knob and lever versions
- Contact block(s) included
|
from $13.50
(GCX3420)
|
Key Switches
- GCX3400 Series
- Two and three-position
- Maintained and spring return
- Contact blocks included
- Replacement keys available
|
from $19.75
(ECX3510)
|
Joysticks
- ECX3500 Series
- Two and four-position
- Maintained and momentary
- Contact blocks included
|
from $4.75
(ECX2051-24L)
|
Plastic Monoblock Indicators
- ECX1050 & 2050 Series
- Available in six colors
- 24 and 120-volt models
- Frosted diffuser for even lighting
- Incandescent or LED indicators
- Monoblock design for easy mounting
|
from $6.25
(ECX2070-24)
|
Audible Annunciators
- ECX2070 Series
- Annunciators with LED indicator (red) or without (black)
- Audible 80 db @ 10 cm
- 24VAC/DC and 120VAC/DC versions
- IP64 rating after installation
- 25 mA @ 24V
|
from $6.25
(SA100SL)
|
22mm Pushbutton Enclosures
- SA Series
- One through six-hole enclosures
- 51mm and 74mm deep
- Thermoplastic ABS material
- IP65 rating
- Molded knock-outs for 1/2 inch conduit
|
 |
22mm Pushbutton Accessories
- ECX Series
- Replacement incandescent and LED bulbs
- Protective pushbutton covers
- Replacement 22mm support base, contact blocks and keys
- Emergency Stop legend plate
|
For more details, select the "Products" tab and click on the desired "Item Code", or select the "Technical Info" tab.
|
