22mm Push Button Enclosures - Thermoplastic and Metal
Plastic and metal pushbutton enclosures are offered for the 22mm line of plastic (or metal) pushbuttons.
- Plastic enclosure material is thermoplastic ABS and conforms to UL94/HB. Gasket material is caoutchouc (rubber) foam.
The degree of protection offered is IP65 according to CEI EN 60529.
- Metal enclosure material is 14 gauge steel with continuously welded seams ground smooth and with closed cell oil-resistant neoprene gaskets.
- Push switches with two-deep contact blocks require enclosures that are 74mm deep: 51mm-deep enclosures are too
shallow and the switch contact block will not fit.
- For push switches with one-deep contact blocks, either 51mm-deep or 74mm deep enclosures can be used.
SA Series - 22mm Thermoplastic Push Button Switch Enclosures
- SA111-00 - No-hole
- SA100-SA104 Series - Single-hole

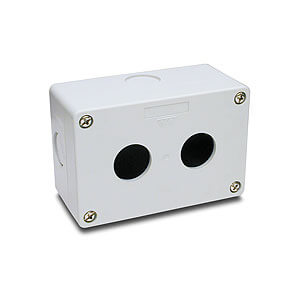

- SA105-SA106 Series - Two-hole
- SA107-SA108 Series - Three-hole
- SA109-SA110 Series - Four-hole
- SA111 and SA112 - Five-hole and six-hole
Thermoplastic Pushbutton Enclosures Overview
NOTE: These plastic enclosures work with most 22mm push buttons, but they may not work with the Cutler-Hammer E22 series.
Check pushbutton dimensions before ordering.
PBGX Series - 22.5mm Metal Pushbutton Enclosures
- 14 gauge steel NEMA 12/13 pushbutton enclosures
- Standard “4-way” miniature pushbutton holes accept all brands of oil-tight pushbuttons, switches and pilot lights
- Provide protection from dirt, dust, oil and water
- Nine models from PBGX1 up to PBGX25 (25 mounting holes)
- Push buttons/switches with two-deep contact blocks require enclosures that are 74mm deep
- For push buttons/switches with one-deep contact blocks, either 51 mm-deep or 74mm deep enclosures can be used
Metal Pushbutton Enclosures Overview
|
|
For more details, select the "Products" tab and click on the desired "Item Code", or select the "Technical Info" tab.
|
