22mm Plastic Mushroom Pushbuttons
Mushroom Push Buttons (Illuminated and Non-Illuminated)
22mm plastic pushbuttons - a rugged yet economical line of plastic pilot devices
for your operator control panel designs. These push button switches are made with fiberglass reinforced
thermoplastic and can be used as a direct replacement for the existing 22mm Metal Pilot Devices.

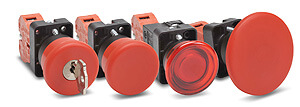

GCX3220 Series - Illuminated Mushroom Style Pushbuttons
- Push buttons fit 22mm diameter mounting hole
- 40mm diameter mushroom style red push button actuator
- Incandescent or LED illuminated push button switches
- 24 VDC/VAC and 120 VDC/VAC versions available
- Momentary switch or twist-to-release actuators
GCX3130 Series - Non-illuminated Mushroom Style Pushbuttons
- Push buttons fit 22mm diameter mounting hole
- Red, black and yellow colors
- 40mm diameter mushroom style actuator - Twist-to-Release and Momentary switch action with N.O. or N.C. contact block
- 60mm diameter actuator style actuator - Twist-to-Release and Momentary switch action with N.C. contact block
- Key operated release with N.C. contact block and 40mm mushroom style actuator
- Replacement keys available
22mm Plastic Mushroom Pushbuttons Overview
Note: All pushbuttons include operator, mounting
adapter, plastic bezel, indicating bulb (if applicable),
and contact block. Push switches are shipped
unassembled. Legend plate is not included and
must be ordered separately. All push button switches in this
series use replacement contact block ECX1030
(Red, NC) or ECX1040 (Green, N.O.), sold separately
in packages of two or five.
|
|
For more details, select the "Products" tab and click on the desired "Item Code", or select the "Technical Info" tab.
|
