Safety Light Curtains

Active Optoelectronic Protective Devices

Safety Light Curtains (Machine Safety Light Barriers)
AutomationDirect offers two series of safety light curtains; the YBB-14 light curtain series with 14mm resolution for finger protection, and the YBB-30 light curtain series with 30mm resolution for hand protection. These safety curtains are used for human protection and product/machine safety where risks cannot be eliminated by machine design and the process might require open and frequent access.

Safety Curtain Series

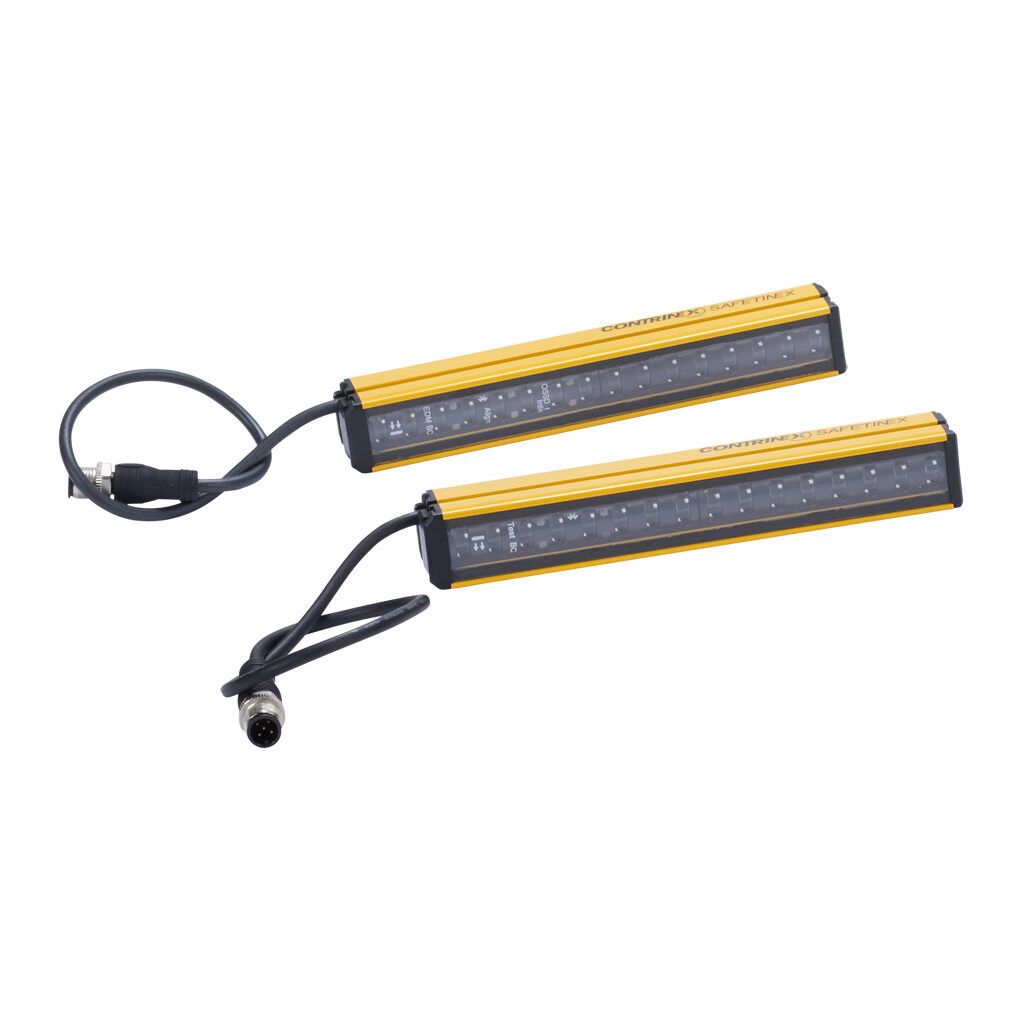

YBB-14 Series - Safety light curtain with 14mm resolution - Finger Safe protection

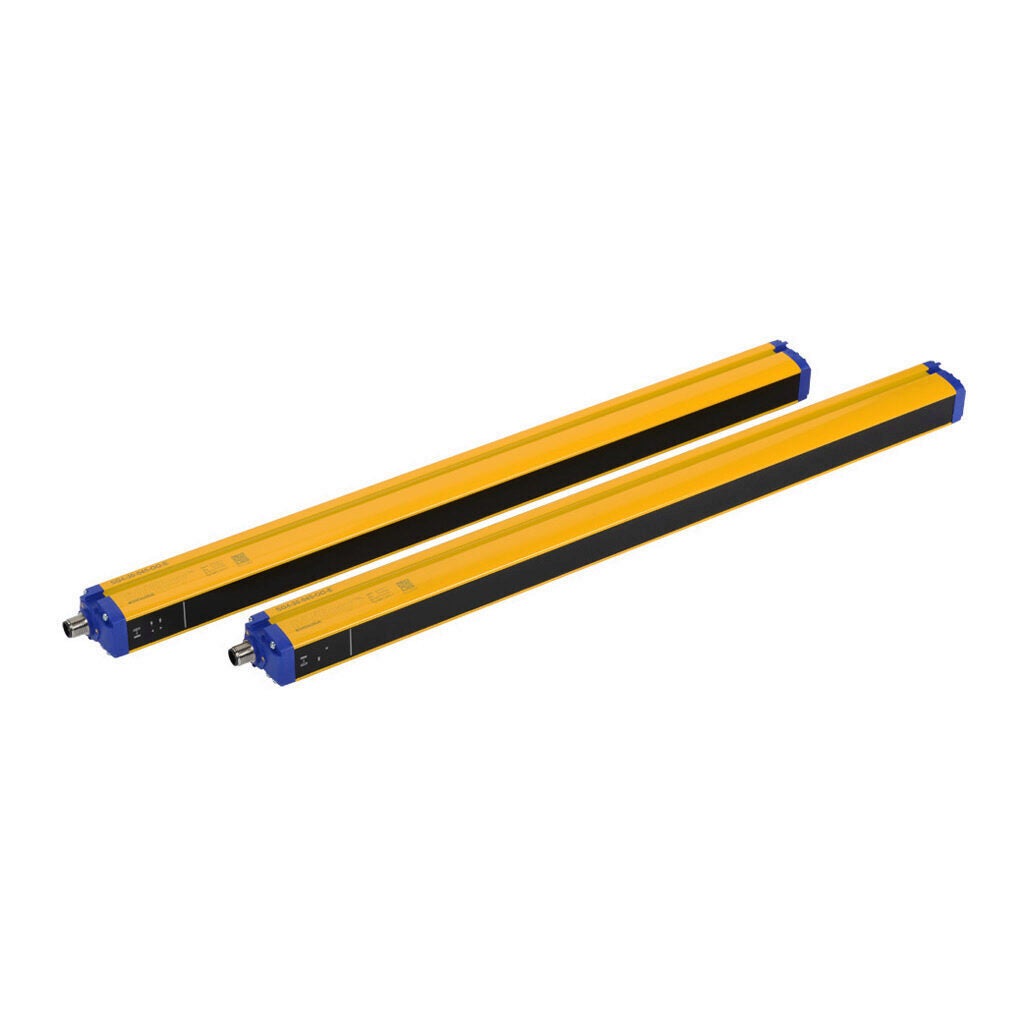

YBB-30 Series - Safety light curtain with 30mm resolution - Hand Safe protection

Common terms:

Resolution � minimum diameter of an intruding object in order to disrupt one beam at any angle
Protective Height � width of area monitored by the beams
Operating Distance � max distance between Sender and Receiver light curtain units

Features

Fully meet category 4, PL e according to EN/ISO 13849-1:2008 (former EN 954-1) and EN/IEC 61496-1:2004/-2:2006 type 4 machine safety requirements
Protective height:
14mm resolution - from 142mm to 1045mm
30mm resolution - from 279mm to 1827mm
Operating distance:
14mm resolution - up to 3.5 m
30mm resolution - up to 12 m
High Safety Ratings - all light curtain units are capable of Cat 4 PL e (EN/ISO 13849-1)
Double PNP outputs
M12 quick-disconnect models (order cable separately)
Mounting brackets included with all light curtain units
Instruction manual and testing rod included with light curtain sender unit
IP65 rated

Order both Sender and Receiver units to make a complete light curtain sensor.

Safety curtain sender prices start at: $277.00
Safety curtain receiver prices start at: $305.00

Safety Light Curtains Overview

Safety Light Curtains Product Categories

machine safety light curtains common terms

Warning: Machine safety products sold by AutomationDirect are Safety components only.

The purchaser/installer is solely responsible for the application of these components and ensuring all necessary steps have been taken to assure each application and use meets all performance and applicable safety requirements and/or local, national and/or international safety codes as required by the application. AutomationDirect cannot certify that our products used solely or in conjunction with other AutomationDirect or other vendors products will assure safety for any application.

Any person using or applying any products sold by AutomationDirect is responsible for learning the safety requirements for their individual application and applying them, and therefore assumes all risks, and accepts full and complete responsibility for the selection and suitability of the product for their respective application.

AutomationDirect does not provide design or consulting services, and cannot advise whether any specific application or use of our products would ensure compliance with the safety requirements for any application.
