Heavy-Duty Photoeyes at Incredible Prices!

Photoelectric Sensors - High Performance Rectangular

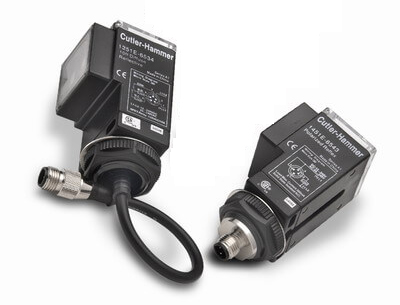

Enhanced 50 Series from Cutler-Hammer

The Enhanced 50 Series of high performance photoelectric sensors offers outstanding features, flexibility and durability at an incredible price. Choose from a wide selection of Thru-beam, Polarized Reflex, Diffuse and even Clear Object models, all designed in a rugged, industry standard, rectangular package. A variety of cables and accessories are also available.

Each model comes with a variety of input options, including DC 10-40 VDC, and AC/DC inputs at a universal voltage range (12-240 VDC/ 24-VAC), for maximum flexibility across many voltage ratings. AC/DC output choices include robust 3A SPDT relays. Cabling choices include built-in mini-connector, microconnector, pigtail micro-connector or a 6 ft. integrated cable. Other convenient features included are Dark-On/Light-On selectability and Gain adjustment available on all models.

See the Selection Guide information under the "Technical Info" tab on our Web site, or in our product catalog to find the sensor model that best suits your requirements.

Available model types include:

• Thru-Beam
• Diffuse Reflective
• Polarized Reflex
• Clear Object Detectors

NOTE: Cutler-Hammer parts are available for sale in North America only.

---

Application Guide

The Enhanced 50 Series Photoelectric Sensors are a great fit for applications such as material handling, packaging and wrapping, sortation and much more.

With the four models available, this family of sensors fits the requirements for almost any sensing need, including harsh environments with excessive dust or high temperature.

Review the application guide information below to help you choose the best sensor model for your application.

Thru-Beam

• Most accurate
• Longest sensing range
• Most reliable
• Must be installed in two points on system: emitter and receiver
• More costly

Diffuse

• Lower cost
• Install at one point
• Less accurate than Thru-Beam or Polarized Reflex
• More setup time involved

Polarized Reflex

• Lower cost than Thru-Beam
• Longer sensing range than Diffuse
• Very reliable
• Must be installed in two points on system: sensor and reflector
• Small and focused spot for easier alignment
• Excellent immunity to false triggering with most shiny targets

NOTE: All Enhanced 50 Series reflective photoelectric sensors (photo eyes) are shipped with an RL110 model reflector.

Clear Object Detector

• Most reliable for sensing transparent objects
• Must be installed in two points on system: sensor and reflector
• Short sensing distance: 45 inches maximum

NOTES:
All Enhanced 50 Series reflective photoelectric sensors (photo eyes) are shipped with an RL110 model reflector.

For further details or technical specifications, select the desired product category and select the "Products" tab and click on the desired "Item Code" link, or select the "Technical Info" tab.

Cutler-Hammer parts are available for sale in North America only.

Benefits Some of the more attractive benefits the Enhanced 50 Series sensors offer include: PRICE! As low as ½ the cost of equivalent A-B 9000 units. You can lower your total system cost without sacrificing quality or functionality. Replacement for A-B 9000 units Replacement for equivalent A-B 9000 units allows you to easily migrate to the Enhanced 50 series as your standard without the need to maintain spares/ inventory for two vendors products. NOTE: While the replacement Cutler-Hammer sensor will attach to the existing mating cable, external wiring changes are required before the sensor's output will function. Full Family of products: Diffuse, Polarized Reflex, Thru-Beam, Clear Object Detector Industrial design engineers, OEMs & System Integrators can design in one standard product package. With the same mounting for all units, these sensors can be easily adapted to changes in application requirements. Maximum flexibility Input supply voltage ranges and output types including DC 10-40VDC inputs and AC/DC inputs at a universal voltage range (12-240VDC/24-VAC). AC/DC output choices include robust 3A SPDT relays, 250mA NPN/PNP transistor outputs, 300mA Solid State Relay outputs. Simple interfacing to a wide variety of input supply voltages and applicable to almost any output device requirement or control system. Powerful Built-in Features Light/Dark Operate selection, Gain adjustment available on all models, Multi-color LED indicators. Easy to maintain, adjust and troubleshoot, reduces maintenance costs and increases system uptime. Rugged environmental specifications and temperature ranges -13 – 131 degrees F (-25 - 55 degrees C), IP67 enclosure rating, short circuit and overcurrent protection along with reverse polarity protection. UL508, CSA, CE approved. Excellent immunity to false triggering on most fluorescent lights
