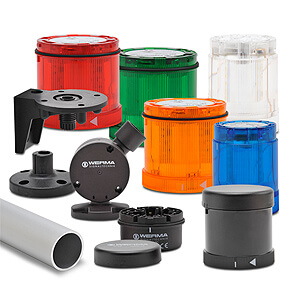

WERMA Stack Lights and Stack Light Components

50mm and 70mm Modular WERMA Light Stack Systems

• Optical Elements: Incandescent Permanent - LED Permanent, Flashing, Blinking, Rotating - Xenon Flashing


• Audible Elements: Buzzers - Multi-Function Sirens


• The bayonet mechanism allows elements to be mechanically and electrically connected within seconds. Elements can be safely and easily changed (contact-voltage proof) without the need for tools.


• Typical product applications include; machine tools, packaging machines, conveyor systems, printing machines, loading docks, andon lights, retail centers (check outs), queuing indicators for theme parks, and more.

      WERMA Stack Lights

• Signal elements in common voltages (24 VDC and 115 VAC)
• Modular system allows combination as required
• Two different sizes (70mm and 50mm diameter)
• Five colors available
• Wide range of audible elements
• Diverse and flexible solutions

• Simple mounting and removal of the elements with bayonet mechanism
• New combinations at the twist of a hand
• Tool-free bulb change
• Position marks to guide alignment

• For use in standard applications.
• KS 71 stack lights are available in 5 colors and multiple light effects (permanent, blinking, rotating, flashing).
• Multiple light sources (incandescent, LED, Xenon tube) and a wide variety of mountings are available.
• Combine up to 5 elements per terminal.
• Various terminal design choices are available as well as multiple voltages.
• Audible elements up to 105 dB.
• WERMA 70mm stack light elements start at $20.50

WERMA 70mm Modular Stack Lights Overview

• 24 VDC and 115 VAC, 5W incandescent bulbs
• Mounting hardware - tube, tube with clamp, base with integrated tube, plastic base, metal base
• Brackets and contact boxes
• Foldaway base (for KS 71 and KS 50)
• Surface mounting, single hole mounting and tube mounting adapters

• For use on smaller machines.
• KS 50 stack lights are available in 5 colors with either permanent or blinking light effects in multiple voltages.
• A choice of incandescent or LED light sources is available as well as an 80 dB audible element.
• Elements can be combined in a variety of mountings, up to 4 elements per mounting for 360° of visibility.
• WERMA 50mm stack light elements start at $20.00

WERMA 50mm Modular Stack Lights Overview

• 24 VDC and 115 VAC, 5W incandescent bulbs
• Mounting hardware - tubes, plastic base, metal base
• Base for surface mounting with rubber seal
• KS 50 contact boxes and brackets
• Foldaway base (for KS 71 and KS 50)
• Single hole mounting adapters
