NITRA™ Pneumatic Cylinder Position Sensors - CPS9T Series

7.2 x 3.9 mm T-Slot Cylinder Switches

NITRA CPS9T Series cylinder position switches are general purpose switches for use with cylinders having a magnetic piston. The switches are designed to mount on cylinders with 7.2 x 3.9 mm T-slots.

The NITRA CPS Series of cylinder position switches offers a robust, yet cost-effective, interface between pneumatic or hydraulic actuators and electrical control systems. Using state-of- the-art magnetic sensing technology, these switches are designed for use with cylinders that have a magnet incorporated in the cylinder piston. They can be used to provide cylinder position indication, cycle count, or to confirm operation.

• Compact and easy to mount on cylinders with 7.2 x 3.9 mm T-slots
• Electronic switch output, PNP (normally open or normally closed) or NPN (normally open)
• Solid state reliability, no moving parts for longer life
• GMR sensing technology for basic industrial applications
• LED switch status indication

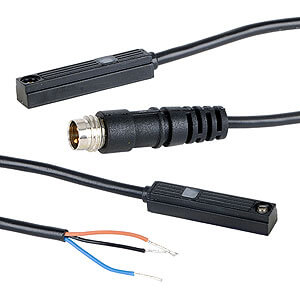

• Integral 0.15m cable with M8 snap-fit connector or 3-meter wire leads
• 5-28 VDC operating voltage
• NEMA 6 / IP 67 rating
• CE, RoHS, REACH approvals
• 3-year warranty

CPS9T Series Air Cylinder Switches Overview
