You are looking at:

Process Control & Me... > Temperature Sensors ... > RTD (PT100) Sensors > Probes (with Attached Plug)

Probes (with Attached Plug)

Most resistance temperature detectors (RTDs) consist of a fine wire (typically platinum) wrapped around a ceramic core, exhibiting a linear increase in resistance as temperature rises. ProSense Pt100 type RTD probes with an attached plug allow for quick and easy plug-in connections (mating connectors sold separately). Measuring rang is -58 to 572 degrees F.

Probes (with Connection Head)

Probes (Spring-loaded with Connection Head)

Probes (with Hex Nipple)

Probes (Spring-loaded with Hex Nipple)

Probes (with Attached Plug)

Probes (with Lead Wire Transition)

Sensors (Adjustable Immersion)

Probes (with M12 Cable Connection)

Probes (with Sanitary Connection)

Sensors (Bolt-on Ring)

Sensors (Room)

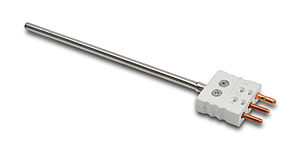

ProSense™ RTD Probes with Attached Plug

RTD1 - PXX-01 RTD Probes

All RTD temperature sensors are pre-built stock items
100 ohm platinum RTD 3-wire element
Class A accuracy
1/4" diameter, 316 SS sheath to protect against harsh environments
3-wire RTD element encased in alumina powder insulation provides excellent vibration dampening and heat transfer
6" probe, 12" probe or 18" probe lengths
Attached 3-pin plug for quick and easy wiring connections
Made in the USA
