Do-more Designer PLC Programming Software

• Supports the Do-more PLC instruction set


• Project Browser (Window to organize the user project)


• Data View (Interface to monitor PLC data in a list)


• Trend View (Interface to monitor PLC data with trend graphs)


• PID View (Interface to monitor and tune the individual PID control loop)


• PID Overview (Interface to monitor multiple PID control loops)


• Debug View (Interface to debug the ladder programs)



• Do-more Simulator (Offline simulator of ladder program execution and PID control)
• Do-more Logger (Software tool to log PLC data)
• NetEdit 3 (Configuration tool for the ECOM/EBC Ethernet modules)



• Minimum PC to PLC Connectivity, at least one of the following:
  - USB Port: connects to the CPU with USB-A connector (USB-A to USB-B cable)
  - RS-232 Serial Port: connects to the CPU with RJ-12 connector (RJ-12 to DB9 or RJ-12 to USB-B serial converter cable)
  - Ethernet Port: connects to the CPU (H2-DM1E) with RJ-45 10Base-T or 100Base-T (Cat5 Patch Cable)
• Hard Disk: 100MB free disk space
• Video Display: 1024x768, 256 colors resolution (1280x720, true color recommended)
• Windows XP, 32-bit:
  - 800MHz, single core CPU (2GHz, multi-core or hyperthreaded recommended)
  - 512MB RAM (2GB recommended)
• Vista, Windows 7, Windows 8 - 32 or 64-bit:
  - 1GHz, single core CPU (2GHz, multi-core recommended)
  - 1GB RAM (3GB recommended)



PLC Programming and Communication Cables
The Do-more T1H Series CPU module T1H-DM1 has two communication ports (USB and RS-232 serial). The T1H-DM1E has three communication ports (USB, RS-232 serial and Ethernet). You can use any of those ports for programming and monitoring.

• Optimized for flexibility and ease-of-use
• Pop-up "Instruction Palette" allows quick selection and insertion of instructions into the Do-more program
• The powerful spreadsheet style MATH instruction allows mixing of data types and accepts formulas and variables.
• Dedicated High Speed I/O & Motion Control instructions greatly simplify and improve functionality
• Communications are easy to set up, define and troubleshoot
• Powerful monitoring and trouble-shooting tools allow precise tuning of PID loops; monitoring of program elements and status bits
• Do-more Designer program management tools support a mix of stage and ladder for a best-of-both-worlds approach that simplifies code and makes troubleshooting easier.
• Project Management - all project files are stored on-board the CPU, no more searching for the most recent copy of the program
• Do-more Designer offers versatile password protection for multiple users and assigning combinations of privileges from available options

Do-more Designer PLC Programming Software & Cables

PART NO.	DESCRIPTION	PRICE	INFO
DM-PGMSW	Do-more Designer Windows PC programming and documentation software for the Do-more series PLCs. Also available for Free Download online. Order programming cable separately.	$10.00
T1H-DM-M	Do-more T1H series PLC user manual. Covers CPUs, bases, discrete I/O, analog I/O and specialty modules. Free Download	Free download

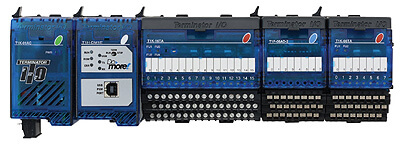

Do-more T1H Series PLC Overview
