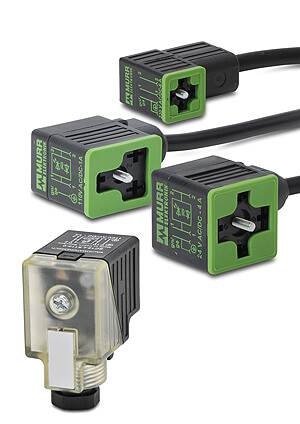

Pneumatic Solenoid Valve Cables & Valve Connectors

• Square DIN style, reduced wiring time
• Three DIN 43650 standard forms A, B, & C
  Pin spacing: A = 18mm, B = 10mm, C = 8mm
• Two DIN style industrial forms
  (referred to as BI & CI)
  Pin spacing: BI = 11mm, CI = 9.4mm
• 4V AC/DC, 110V AC/DC and 230V AC/DC models available
• 8mm, 9.4mm, 10mm, 11mm and 18mm (3-pole) connectors
• 9.4mm and 18mm (4-pole) connectors
• Standard 1-year warranty

These high quality solenoid valve connectors and over-molded solenoid cables help reduce wiring time. The lower voltage models, 24V or 110V AC/DC, include built-in surge suppression, yellow LED indicator and are rated for connecting with electronics. The 230V AC/DC models are rated for straight wired products. All models are available in five sizes based on DIN 43650.

Features

• 8mm, 9.4mm, 10mm, 11mm and 18mm square DIN styles
• Fits most popular solenoid valves and sensors
• Suppression and LED indication available in 24V or 110V AC/DC models
• PVC jacketed cables in 1, 3 or 5 meter lengths on select connectors
• Field-wireable solenoid connectors on select models
• Not polarity sensitive (follow solenoid, sensor, or other devices wiring diagram)
• Label plates
• Integrated gasket
• Captured screw on over-molded models
• IP67 rating on over-molded solenoid cables, IP65 rating on field-wireable valve connector pieces
• Agency approval: CSA 080128-0-000 (on over-molded solenoid cables)
