Reduce wiring time with over-molded solenoid valve cables. A perfect match for NITRA AVP and AVS series pneumatic valves, these square DIN style Form B industrial cables (11mm pin spacing) are available in 24V AC/DC and 110V AC/DC with surge suppression and yellow LED indicators. Straight-wired 230V AC/DC models and field-wireable connectors are also available.
Pneumatic Solenoid Valve Cables & Valve Connectors
- 11mm (DIN Style)

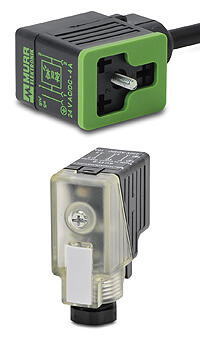

High quality solenoid connectors and over-molded solenoid cables for pneumatic solenoid valves
11mm Over-Molded and Field-Wireable Solenoid Valve Connectors and Cables
-3R and -5R cables with reversed connector (ground pin opposite cable entry) work well with most popular solenoid valves and sensors.
- 11mm DIN style connector: Form B industrial
Pin spacing = 11mm - Square DIN, reduced wiring time
- Field-wireable valve connectors are also available
- 24V AC/DC, 110V AC/DC and 230V AC/DC models available
- Standard 1-year warranty
These high quality solenoid valve connectors and over-molded solenoid cables help reduce wiring time. The lower voltage models, 24V or 110V AC/DC, include built-in surge suppression, yellow LED indicator and are rated for connecting with electronics. The 230V AC/DC models are rated for straight wired products.
Features
- 11mm square DIN style
- Fits most popular solenoid valves and sensors
- Suppression and LED indication available in 24V or 110V AC/DC models
- PVC jacketed cables in 3 or 5 meter lengths
- Reversed connector cables (ground pin opposite cable entry) are available
- Field-wireable connectors on select models
- Not polarity sensitive (follow solenoid, sensor, or other devices wiring diagram)
- Label plates
- Integrated gasket
- Captured screw on over-molded models
- IP67 rating on over-molded solenoid cables, IP65 rating on field-wireable valve connector pieces
- Agency approval: CSA 080128-0-000 (on over-molded solenoid cables)
11mm solenoid cables and connectors for solenoid valves start at
$12.50
(SC11-3)
Solenoid Valve Cables and Valve Connectors Overview
