Reduce wiring time with over-molded solenoid valve cables. Square DIN 43650A standard Form A cables (18mm pin spacing) are available in 24V AC/DC and 110V AC/DC ratings with surge suppression and yellow LED indicators. Straight-wired 230V AC/DC models and field-wireable connectors are also available.
Pneumatic Solenoid Valve Cables & Valve Connectors
- 18mm (DIN 43650A)
High quality solenoid connectors and over-molded solenoid cables for pneumatic solenoid air valves

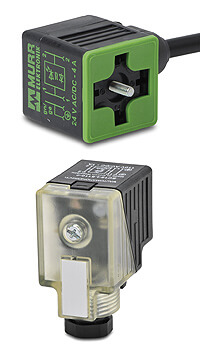

18mm Over-Molded and Field-Wireable Solenoid Valve Connectors & Solenoid Cables
- 18mm (3-pole) Connectors (per DIN 43650 Form A)
- 18mm (4-pole) Connectors (DIN Style, Form A Industrial) ... New!
- Square DIN style, reduced wiring time
- Field-wireable valve connectors are also available
- 24V AC/DC, 110V AC/DC and 230V AC/DC models available
- Standard 1-year warranty
These high quality solenoid connectors and over-molded solenoid cables help reduce wiring time. The lower voltage models, 24V or 110V AC/DC, include built-in surge suppression, yellow LED indicator and are rated for connecting with electronics. The 230V AC/DC models are rated for straight wired products.
Features
- 18mm square DIN style
- Fits most popular solenoid valves and sensors
- Suppression and LED indication available in 24V or 110V AC/DC models
- PVC jacketed cables in 3 or 5 meter lengths
- Field-wireable connectors on select models
- Not polarity sensitive (follow solenoid, sensor, or other devices wiring diagram)
- Label plates
- Integrated gasket
- Captured screw on over-molded models
- IP67 rating on over-molded solenoid cables, IP65 rating on field-wireable valve connector pieces
- Agency approval: CSA 080128-0-000 (on over-molded solenoid cables)
18mm solenoid cables and connectors for solenoid valves start at
$12.50
(SC18-3)
Solenoid Valve Cables and Valve Connectors Overview
