Midget (Class M) & Class CC Fuse Holders, Fuse Blocks and Accessories

Buy with confidence:

• 30-Day Money-Back Guarantee
• Free Technical Support
• 1-Year Warranty
• Free Shipping on orders of $49 or more

Improved Fuse Holder Design

• The new fuse holder products are rated to accept up to #4 AWG wire
• The new fuse holders accept a standard 6mm comb bus bar terminal or a spade terminal
• The new fuse holders accept 90C rated wire, 75C rated wire and fine stranded wire
• Dual Agency approval ratings - UL and CSA
• Minor dimensional changes to product height (2mm increase) and depth (0.71mm increase), and no change to the width
• 200kA SCCR

Features:

• EHCC Series: High SCCR rated, UL Listed Class CC fuse holder with indicator option for 600VAC/DC
• EHM Series: UL Recognized Midget class fuse holders
• Minimum 90 VAC/DC required for illumination on indicating models
• Rated for use with 75°C or 90° wire, fine stranded wire, spade terminals and comb-bus bars. Use any higher temperature rated wire with appropriate derating.
• Complete range of UL Listed and high SCCR rated 1-phase and 3-phase finger-safe comb-bus bars and power feed lugs
• Polyester material is UL 94V0 rated, self extinguishing
• Multi-phase connections available for ganging up to 4 poles
  (To add additional poles, see multi-pole connection kit JV-L in accessories. One JV-L kit is sufficient to gang up to 4 poles.)
• Mounts on 35mm DIN rail
• IP20 rated
• Spade terminals are accepted (Max width-10mm, Min ID of slot 4mm, Max ID of slot 5mm)
• Wire ferrules may NOT be used.

Midget Class Fuse Holders
start at $9.00 (EHM1DU)

Class CC Fuse Holders
start at $10.50 (EHCC1DU)

Applications

• EHM Series: Edison MCL, MOL, MEQ, MEN, or Midget fuses
• EHCC Series: Edison HCLR, HCTR, EDCC fuses, or class CC fuses

Class CC Fuse Holder Agency Approvals

• UL File E300536 Guide IZLT Listed
• CSA File 47235, Class 6225-01
• CE Compliant
• RoHS, Reach

Midget Fuse Holder Agency Approvals

• UL File E300536 IZLT2 Recognized
• CSA File 47235, Class 6225-30
• IEC 60269-2
• CE Compliant
• RoHS, Reach

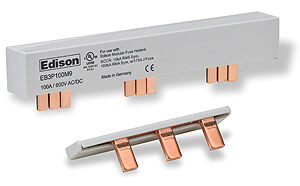

Edison Comb-Bus Bars

• Easily distribute power in single-phase or three-phase configurations
• Flexible cut-to-length solutions without compromising the product's finger-safe features
• 10kA (default) SCCR
• 100kA SCCR (Short Circuit Current Rating) when protected by a 200A Class J fuse
• Single-phase bus bars rated to 1000VDC/600VAC and 100A in end-fed configuration (200A for center-fed configuration)
• Three-phase bus bars rated to 600VAC/DC and 100A in end-fed configuration. (200A for center-fed configuration)
• Power feed terminals for single-phase and three-phase service
• Agency Approvals/Standards: UL508, File E195399, CE, RoHS, Reach

Modular Class CC/ Class M Fuse Holders Overview

Class CC / Class M Fuse Blocks Overview

A fuse puller and a multi-pole connection kit to connect multiple Class CC fuse holders and Midget Class fuse holders together are also available. The kit consists of 6 fuse holder connectors and 3 handle pins to allow you to connect up to 4 fuse holders.

Fuse Accessories Overview
