DC voltage is used to power countless industrial automation devices from sensors, to controllers, valves, and much more. RHINO DC specialty modules include redundancy, buffer, and battery control modules to provide steady, reliable DC power even in the event of a power failure. Build a back-up system or DC UPS with practical low-cost specialty modules.
Battery Control Module
The PSL-24-BCM240 battery control module is designed to use in small cabinets where space is very critical. The tough plastic case is flame retardant, certified to UL 94V-0 specification. The module supports 24VDC systems with external battery up to 12AH capacity and comes with contacts for battery management signals and an LED indicator for battery status.
The PSL-24-BCM240 module is
Battery Control Module

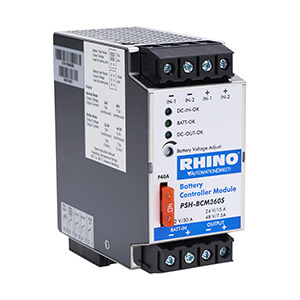

The PSH-BCM360S module provides a battery management system to charge and monitor an external 12V lead-acid battery with a capacity greater than 2.5 Ah. This standalone unit functions with one or a pair of 24VDC or 48VDC power supplies to provide a DC UPS (uninterruptible power supply) power protection system.
PSH-BCM360S is priced at
PSB Series Battery

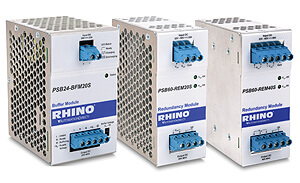

PSB Series Buffer and Redundancy Specialty Modules
The PSB24-BCM960S battery control module is designed to support a 24V system with up to 40A output and 4.5 minutes back up time for 15AH battery capacity. With dry contacts for battery management signals and LED indicator for battery status.
The PSB24-BCM960S module is
The RHINO PSB60-REM series redundancy modules are used with two RHINO PSB series power supplies in parallel to create redundancy to help prevent costly downtime due to power supply failure. The redundancy module decouples the outputs of the two connected power supplies so that in case of failure, one power supply cannot overload the other. The modules can handle power supply voltages from 22 to 60 VDC and provides alarm relay contacts for remote monitoring.
PSB60-REM prices start at
The RHINO PSB24-BFM20S buffer module is a cost-effective alternative to battery-based backup systems. Utilizing electrolytic capacitors, the buffer module is maintenance free and will maintain the output voltage of a 24 VDC power supply system for 250 msec minimum with a 20A load and 5 sec minimum with a 1A load. Output signals provide remote stand-by and buffering mode indication.
The PSB24-BFM20S is

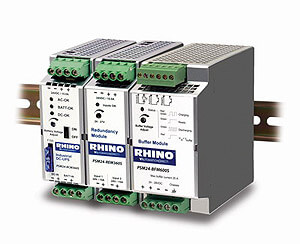

The battery control module, when combined with a PSM24 DC power supply, makes a perfect DC UPS (uninterruptible power system) by providing the means to charge and monitor an external lead acid battery.
PSM24-BCM360S is priced at
Using two PSM24 DC power supplies and a redundancy module, you can configure a redundant power system, featuring active current sharing, without any additional components.
PSM24-REM360S is priced at
The buffer module will maintain the output voltage of a 24 VDC power supply after brownouts or voltage dips for typically up to 200 ms at 25 amps, or up to 4 seconds at 1.2 Amps.
PSM24-BFM600S is priced at
The PSP redundancy module is used with two RHINO PSP Series power supplies for redundancy to help prevent costly downtime due to power supply failure.
PSP24-REM240S is priced at
