Power Products (Elec... > Electronic Circuit P... > WAGO Electronic Circuit Breakers - One Channel

WAGO Single-Channel Electronic Circuit Breakers

Single-channel electronic circuit breakers (ECB) offer supplementary circuit protection for 24 VDC circuits in a compact modular design. Jumper bars are available to stack up to 10 ECBs together to simplify wiring. Fixed ratings are available up to 8A; an adjustable model offers a range of 1-8A.

WAGO Electronic Circuit Breakers - One Channel

WAGO Electronic Circuit Breakers - Two Channel

WAGO Electronic Circuit Breakers - Four Channel

WAGO Electronic Circuit Breakers - Eight Channel

Shop Now

Electronic Circuit Protection - Single Channel

Single Channel

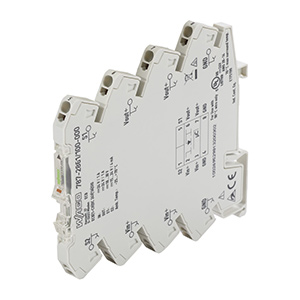

WAGO Single Channel Electronic Breakers

Space-saving ECB with one channel
This model safely and reliably stops power in the event of an overload or if it short circuits on the secondary side
The switch on capacity is >50,000 µF
Minimizes wiring via two voltage outputs and maximizes commoning options in both input and output sides
Switch the breaker on or off via remote input, or a local switch
Prevents power supply overload due to total inrush current thanks to time delayed switching on during interconnected operation
Bus up to 10 units together with the use of Jumper Bars

Single channel channel breakers start at
$57.00
(787-2861-100-000)

WAGO Single Channel Electronic Circuit Breakers Overview
