General Purpose Cast-Iron Helical Bevel Gearboxes

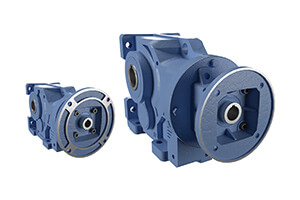

The new HBR series of helical bevel gearboxes combines the helical gearset with a bevel gearset to create an output that is perpendicular to the input. All HBR series gearboxes are hollow shaft output and accept double or single shafts. Dual and single output shaft kits are available.

• 5 box sizes
• 56C up to 254/6TC NEMA motor frames
• 9 ratios, 10:1 to 120:1
• Sized to handle from 1 to 24 hp

IronHorse helical bevel gearboxes are manufactured in an ISO9001 certified plant by one of the leading and most internationally acclaimed gearbox manufacturers in the world today. Only the highest quality materials are tested, certified, and used in the manufacturing process. Strict adherence to and compliance with the toughest international and U.S. testing standards and manufacturing procedures assure you the highest quality products.

Features

• C-face and TC-face input; bevel, perpendicular output
• Universally interchangeable compact design ensures easy OEM replacement
• Flexible installation: 6 mounting positions
• FCD45 cast-iron one-piece housing

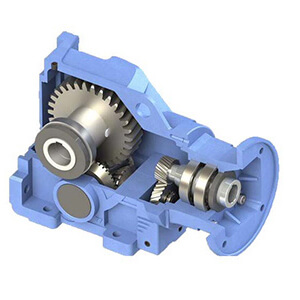

• Alloy steel (20CrMO) pinion and gears
• AGMA 11 & 12 rated, SCM415 pinion gears
• Gears supported by generously-sized precision ball and tapered bearings
• Double-lipped embedded oil seals to prevent leakage
• 2-year warranty

Applications

• Use with electric motors for reducing output speed, increasing torque
• Use for conveyors, packaging machines, rotary tables, etc.
