ProSense^® Sanitary Sensor and Transmitter Probes

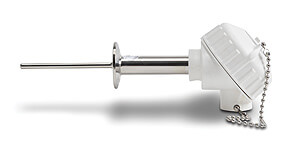

RTD1 - S04-XX Series RTD Probes

All RTD temperature sensors are pre-built stock items
Designed to meet the stringent requirements of HTST pasteurization systems

• RTD Probe
  • 100 ohm platinum RTD 3-wire element
  • Class A accuracy
  • Clean-in-place (CIP) sanitary 316 stainless steel connectors for use in processing applications where sensor corrosion and product contamination are critical factors
  • Certified to meet or exceed 3A Sanitary Council Standard surface finish specifications
  • 316 stainless steel sheaths available in standard 1/4" diameter, or 3/8" diameter with 3/16" diameter reduced tip for greater durability in high viscosity applications
  • Commonly used 4" probe insertion length
• Connection Head
  • FDA compliant white thermoplastic screw cover head with captive o-ring seal provides excellent washdown protection
  • One turn cover removal & installation eliminates cross threading and saves time
  • 3/4" NPT conduit opening with internal stop to prevent overtightening and installation damage
  • Gripping ribs on cover edge
  • Stainless steel cover chain
• Wiring
  • Ceramic terminal base
  • Brass terminals with stainless steel screws eliminate the need to wrap connections around screws
  • Elevated terminal block for easy wire termination
• Made in the USA
