PLC discrete DC I/O modules allow monitoring and control of ON/OFF signals and devices that switch DC power, such as limit switches and other sensors, and small loads such as pneumatic solenoid valves and indicating lights. DirectLOGIC 205 PLC discrete I/O modules are high density with up to 32 points of sinking or sourcing I/O points in a single module.

CPUs

WinPLC

Bases & Expansion

DC I/O

AC I/O

AC/DC I/O (Relay Outputs)

Analog I/O

Ethernet Remote I/O

Communications & Networking

Motion & Specialty Modules

Programming SW & Cables

ZIPLink Wiring Solutions

Spare Parts & Specialty Items

Documentation

DirectLOGIC 205 (DL205) PLC - DC I/O Modules (4 - 32 points)

The DirectLOGIC DL205 PLC offers DC I/O modules in several configurations.
Modules range from 4 points to 32 points and 5-15 VDC, 12-24 VDC or 24 VDC.

DirectLOGIC DL205 DC I/O modules start at $56.00(D2-08ND3)

Available DC I/O modules for the DL205 PLC include:

4-point modules

D2-04TD1 - 4 pt. 12-24 VDC current sinking output module, 1 common (4 common terminals),4.0A/point, 8.0A/module, fused per point (non-replaceable), removable terminal

8-point modules

D2-08ND3 - 8 pt. 12-24 VDC current sinking/sourcing, 1 common (2 common terminals), removable terminal
D2-08TD1 - 8 pt. 12-24 VDC current sinking output module, 1 common (2 common terminals), 0.3A/point, 2.4A/module, fused per common (non-replaceable), removable terminal
D2-08TD2 - 8 pt. 12-24 VDC current sourcing output module, 1 common (2 common terminals), 0.3A/point, 2.4A/module, fused per common (non-replaceable), removable terminal

16-point modules

D2-16ND3-2 - 16 pt. 24 VDC current sinking/sourcing 2 commons (isolated), European type removable terminal
D2-16TD1-2 - 16 pt. 12-24 VDC current sinking output module, 1 common (2 common terminals), 0.1A/point, 1.6A/module, no fuse, European type removable terminal
D2-16TD2-2 - 16 pt. 12-24 VDC current sourcing output module, 1 common (2 common terminals), 0.1A/point, 1.6A/module, no fuse, European type removable terminal

Electronic Short Circuit Protection (ESCP) Modules (16 point)
F2-16TD1P and F2-16TD2P Electronic Short Circuit Protected (ESCP) DC Output Modules detect missing external 24VDC, open load, over temperature, and over load current faults.

F2-16TD1P - 16-point, 12-24 VDC current sinking output module, 2 common terminals, 0.25A/point continuous, overcurrent trip 0.6A min, 1.2A max, independent overtemperature protection for each output, removable terminal block
F2-16TD2P - 16-point, 12-24 VDC current sourcing output module, 1 common terminal, 0.25A/point continuous, overcurrent trip 0.6A min, 1.2A max, independent over temperature protection for each output, removable terminal block

32-point modules

D2-32ND3 - 32 pt. 24 VDC current sinking/sourcing 4 commons (isolated). Requires one connector, sold separately.
D2-32ND3-2 - 32 pt. 5-15 VDC current sinking/sourcing 4 commons (isolated). Requires one connector, sold separately.
D2-32TD1 - 32 pt. 12-24 VDC current sinking output module, 4 commons (isolated), 0.1A/point, 3.2A/module, no fuse. Requires one connector, sold separately.
D2-32TD2 - 32 pt. 12-24 VDC current sourcing output module, 4 commons (isolated), 0.1A/point, 3.2A/module, no fuse. Requires one connector, sold separately.

Combination discrete modules

D2-08CDR - 4 pt. 24VDC sinking/sourcing input, 1 common, 4 pt. relay output, 1A/pt., 4A/module, 1 common, replaceable fuse

DirectLOGIC DL205 PLC DC I/O Overview

Direct Logic DL205 DC I/O - removable terminal

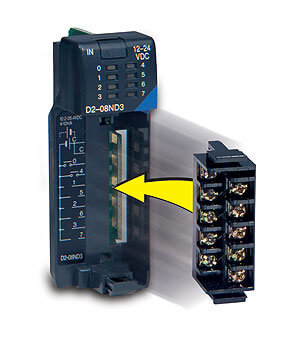

DirectLOGIC DL205 DC I/O module with removable terminal

Direct Logic DL205 DC I/O with ZIPLink connection

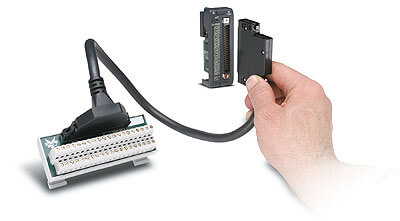

DL205 DC I/O Module with ZipLink pre-wired connection cable
