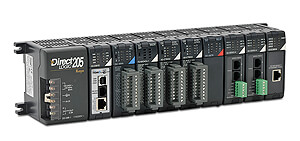

The Do-more™ H2 Series PLC is the newest logic control technology available that makes industrial control applications easier to implement. The Do-more PLC CPU uses proven DirectLOGIC DL205 PLC hardware for a flexible control platform with more powerful performance specifications.
The Do-more PLC CPUs introduce a new and more powerful, user-friendly programming instruction set.
The Do-more PLC line provides options for connecting to networks of other
AutomationDirect products, or MODBUS RTU or Ethernet networks.
The following modules and accessories are available for Do-more PLC serial or Ethernet networking options.
Add serial ports to your Do-more H2 Series PLC system by simply plugging the H2-SERIO or H2-SERIO-4 module into the base. Allows connection of a wide range of serial devices, such as barcode scanners, scales, printers, modems, etc.
The Ethernet Communication (ECOM) Modules represent a price breakthrough for high-speed peer-to-peer networking of PLCs. No longer are you forced to designate a single PLC to be the network master. Any PLC can initiate communications with any other PLC. Ethernet Communications Modules offer features such as:
Use NetEdit 3 to configure the ECOM modules for your network. Flexible addressing allows you to use your choice of protocols and identification methods. Assign each module a number, a name or both. You don't have to use an IP address, but you can if it's necessary for your network. NetEdit 3 uses two protocols for PC-to-PLC communications: IPX and TCP/IP.
|H2-SERIO||3-port RS-232 serial I/O module for Do-more H2 series PLCs, WinPLC, or an H2-EBC100 based system connected to a PC, (3) RS-232 ports||$181.00|
|H2-SERIO-4||3-port RS-232/RS-485 serial I/O module for Do-more H2 series PLCs, WinPLC, or an H2-EBC100 based system connected to a PC, (2) RS-232 ports, (1) RS-485 port||$181.00|
|H2-ECOM100||Ethernet Communication Module for Do-more H2 series PLCs. Supports master/slave communication, 10/100 Mbps auto-detect, TCP/IP, UDP/IP, IPX, and Modbus TCP application layer protocols.||$334.00|
|FA-UNICON||In-line, DB25, RS-232C to RS-422/RS-485 converter, not for noisy industrial environments (provides no signal isolation)||$99.00|
|FA-ISOCON||Universal, isolated RS-232C to RS-422/RS-485 converter||$105.00|
|FA-ISOCON-P||Replacement terminal plugs for FA-ISOCON, includes all three plugs||$8.25|
