Do-More PLC - H2 Series CPU Modules

Do-more PLCs - H2 Series

The Do-more™ H2 Series PLC is the newest technology available that makes control applications easier to implement. Do-more PLCs use proven DirectLOGIC PLC DL205 hardware for a flexible control platform, but with more powerful and faster performance. Do-more PLCs also introduce a new and powerful, user-friendly programming instruction set.

• H2 Series Do-more CPU modules plug into a standard DL205 PLC base unit and can utilize almost all of the proven DL205 family of PLC modules.
• Do-more Designer is the new full-featured programming software for Do-more PLCs.

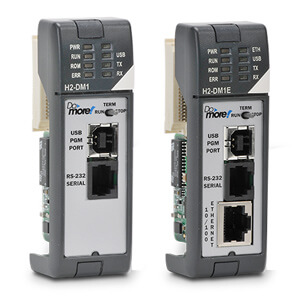

H2-DM1 and H2-DM1E CPU Modules

Two CPU modules are available with Do-more H2 Series PLCs: the H2-DM1 and H2-DM1E. Both CPU modules are programmed using the Do-more Designer programming software.

NOTE: Existing DirectLOGIC DL205 CPU modules (D2- 230, D2-250(-1) and D2-260) cannot utilize Do-more Designer PLC programming software.

Features - Do-more CPUs

• 192k words total memory
  • 64k words ladder (flash memory)
  • 128k words user data memory (SRAM with battery backup)
• Ladder programming,
• Real time clock/calendar
• Two or three built-in communications ports:
  • RS-232 port - supports programming, K-sequence slave, MODBUS RTU master/slave and ASCII IN/OUT
  • USB port - supports programming
  • Ethernet port (H2-DM1E) - supports programming, TCP/IP, UDP/IP and Modbus/TCP
• Bumpless run-time editing
• Up to 2000 PID loops
• Back-up battery included
• Do-more CPU modules require the Do-more Designer programming software (free online download, or on CD for a nominal fee)
• User manual H2-DM-M is available as a free download, or you may purchase a hard copy separately
• One-year warranty
