Safety > Safety Switches > Cable-Pull Safety Switches > IDEM 100m (328 ft) Max Protection Length

IDEM 100m (328 ft) Max Protection Length

Cable-pull safety rope switches allow operators to initiate an E-stop from any point along the installed cable length. IDEM cable-pull switches rated up to 100m (328 ft) maximum protection length offer positive operating contacts and reset function; switches are sold separately from cable kits.

15m (49 ft) Max Protection Length

25m (82 ft) Max Protection Length

IDEM 50m (164 ft) Max Protection Length

IDEM 80m (262 ft) Max Protection Length

IDEM 100m (328 ft) Max Protection Length

Cable-Pull Safety Switches - 100m (328 ft) Max Protection Length

Cable-Pull (Grab-Wire) safety rope switches are designed to be mounted on machines and sections of conveyors which cannot be protected by guards. In contrast to traditional mushroom head type emergency stop buttons, Cable-Pull Safety Rope Switches can initiate the emergency command from any point along the installed rope length and provide robust emergency stop rope pull protection for exposed conveyors or machines.

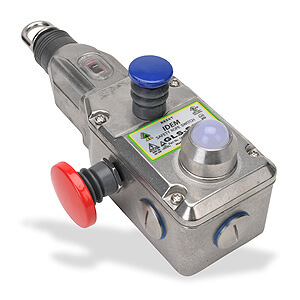

GLS-SS Series

100m cable-pull safety interlock switches

Safety switch, cable-pull interlock operated
With reset
Versions with or without E-stop button
2-color LED versions available
65mm Stainless steel housing
Multiple N.O. and N.C. contact configurations
Three 1/2 in. NPT female conduit fittings
Includes one tamper-proof T20 Torx bit
Rope pull kits sold separately and recommended for increased reliability
IEC IP69K Washdown Rated
Agency approvals: cULus (E258676), CE, TUV, RoHS

100m cable-pull switches
start at $281.00

Cable-Pull Interlock Safety Switches Overview

GLS-SS Series Cable-Pull Safety Switches

Recommended rope span options and fittings

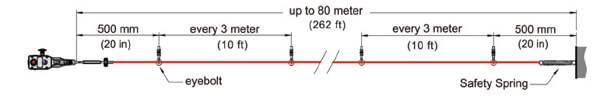

GLS-SS 80m span with safety spring

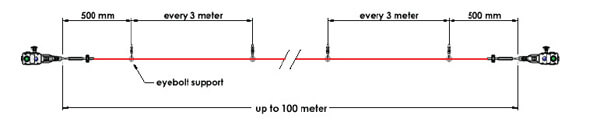

GLS-SS 100m span

Warning: Machine safety products sold by AutomationDirect are Safety components only.

The purchaser/installer is solely responsible for the application of these components and ensuring all necessary steps have been taken to assure each application and use meets all performance and applicable safety requirements and/or local, national and/or international safety codes as required by the application. AutomationDirect cannot certify that our products used solely or in conjunction with other AutomationDirect or other vendors products will assure safety for any application.

Any person using or applying any products sold by AutomationDirect is responsible for learning the safety requirements for their individual application and applying them, and therefore assumes all risks, and accepts full and complete responsibility for the selection and suitability of the product for their respective application.

AutomationDirect does not provide design or consulting services, and cannot advise whether any specific application or use of our products would ensure compliance with the safety requirements for any application.
