Encoder Linear Measuring Systems & Components
Encoder measuring wheels ride along the surface of moving material to measure its distance of travel. An encoder-coupled wheel is mounted to a spring-loaded arm (sold separately or as a unit) to generate quadrature output signals used for speed control, cut-to-length, and positioning applications.
This page will refresh momentarily.
Warning
Some of the selected facets have been selected by the {{ assistanceData.title }} Help.
Resetting/clearing ALL facets will end {{ assistanceData.title }} Help.
![Help icon]()
Selection Assistance - {{ assistanceData.title }}
Lika Preassembled Unit
Wachendorff Three-piece Assembly
Newest Additions!
- Wachendorff IP69K Measuring Wheel Components
Encoder linear measuring systems include:
Lika preassembled measuring wheel units
- Medium-duty incremental (quadrature) encoder, 250 or 1250 ppr
- Metric & US/imperial wheel sizes
- Standard 4” wheel (12.5” circumference)
- Optional 80mm wheel (250mm circumference)
- Spring-loaded arm with up to 30mm deflection
- IP65 environmental rating

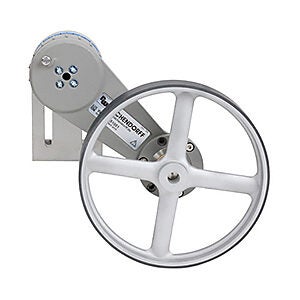

Wachendorff measuring wheel components: encoder, spring mount, and wheel
- Heavy-duty incremental (quadrature) encoder, 60 up to 5000 ppr
- 200mm and 500mm wheel circumferences with a variety of contact surfaces
- Spring mounts include encoder mounting brackets
- Precise tension adjustment: from 5 - 30 N in 5 N increments
- IP67 and IP69K environmental rating
- Components purchased separately (all hardware is included for simple, straightforward assembly)
Components starting at
(36J10603GSC8)
For part listing and specifications, go to Shop Now
