Photoelectric Sensors - 8 mm Round - HE Series

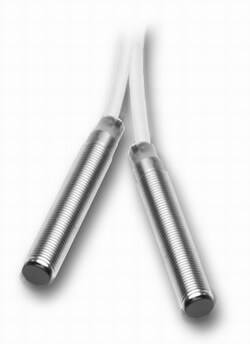

HEE/HER series through-beam sensors feature miniature 8 mm tubular stainless steel housings. Small size and rugged IP67 rating make the HEE/HER series a good solution for sensing applications with limited mounting space in harsh environments.

The M8 miniaturized HEE and HER series thru-beam sensors are available with NPN or PNP, and NO or NC outputs. In the PNP models the load is connected between the output (black wire) and the negative (blue wire). In the NPN models the load is connected between the output (black wire) and the positive (brown wire).

In the Normally Open models, the output is ON when the target is present (beam interrupted); in the Normally Closed models the output is ON when the target is absent (beam free).

All models feature a maximum switching frequency of 10 kHz that accommodates high speed counting or motion control applications.

Features

• M8 Small dimension housing
• LED status indicator for all models
• Overload protection
• IP67 protection
• Strong stainless steel housing
• Fast switching frequency 10 KHz
• Sensing distance: 1 m
• Supply voltage: 10 - 30 VDC
• NPN or PNP, NO or NC models

Selection

HE Series Photoelectric Emitters
- 8 mm diameter, through beam emitter, 10-30 VDC, 1 meter sensing distance, 10KHz switching frequency.

• HEE-00-3A - 1 meter cable


• HEE-00-3F - M8 quick disconnect (purchase cable separately)



HE Series Photoelectric Receivers
- 8 mm diameter, through beam receiver, 10-30 VDC, 1 meter sensing distance, 10kHz switching frequency
(purchase M8 quick disconnect cable separately).

• HER-AP-3A - PNP, normally open output, 1 meter cable


• HER-CP-3A - PNP, normally closed output, 1 meter cable


• HER-AN-3A- NPN, normally open output, 1 meter cable


• HER-CN-3A - NPN, normally closed output, 1 meter cable


• HER-AP-3F - PNP, normally open output, M8 quick disconnect


• HER-CP-3F - PNP, normally closed output, M8 quick disconnect


• HER-AN-3F - NPN, normally open output, M8 quick disconnect


• HER-CN-3F - NPN, normally closed output, M8 quick disconnect



Photoelectric Sensors - 8 mm Round - HE Series Overview
