Konnect-It Terminal Block End Brackets

End brackets prevent terminal blocks and other DIN rail mounted components and devices from sliding along the rail. They are available in configurations for 15mm and 35mm DIN rails.

• Housing: Polyamide 66
• Clamping connector: Zinc plated steel
• Available color - Gray
• Internationally approved by national and international standards organizations - UL, CSA, CE, VDE, and IEC

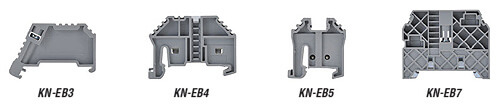

• KN-EB3-xx: 35mm, screw-type, 10/pkg & 100/pkg
• KN-EB4-xx: 35mm, screwless, 10/pkg & 100/pkg
• KN-EB5-xx: 15mm, screwless, 10/pkg & 100/pkg
• KN-EB7-xx: 35mm, screw-type, 10/pkg & 50/pkg

Other Konnect-It Terminal Block Accessories

• DIN Rail (35mm & 15mm), mounting clips, support brackets
• End brackets
• End covers
• Top covers
• Separators
• Marking tags
• Label Holder
• Jumper bars, comb-style jumpers
