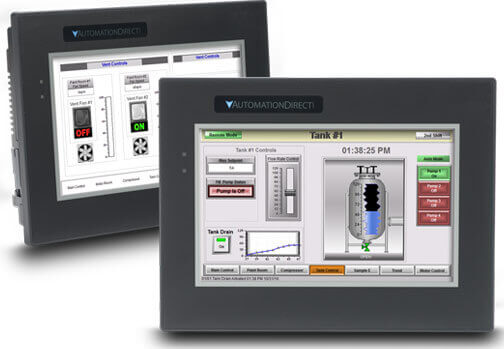

These units have all the capabilities of the Full Feature Models below
AND huge high resolution screens
AND 82MB of project memory
AND a second SD card slot

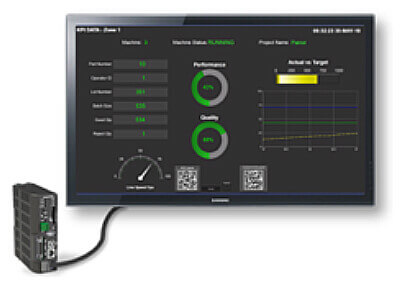

AND an HDMI video out port.
These Full Feature Models are NEMA 4/4X (IP65) and include full color TFT screens with LED backlight; 800MHz CPUs; 1 Ethernet, 3 serial, and 2 USB ports; and an SD card slot.
Offering exceptional value, the Base Models have all the capabilities of the Full Feature Models above EXCEPT:
Only one serial port
No audio out
No Ethernet port (thus no support for features like: Webserver, Email, or Remote HMI)
Only one serial port
No audio out
Yes, the 7-inch base model even has Ethernet!

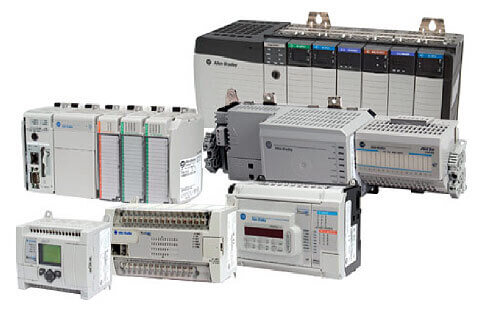

Added additional setting in the Panel Manager configuration to help AB PLC users with communication and/or version changes that often occur with the AB PLC products. These features are configured in the Panel Manager.

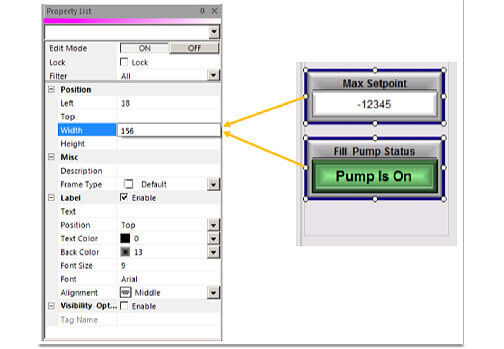

For our C-more power users, the New Property List Tool reduces the time to make bulk edits to multiple objects with similar properties. From this window the user can select a property and edit the field.

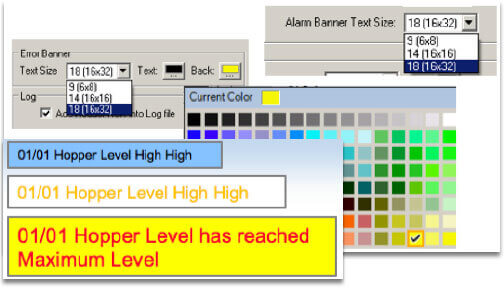

The Alarm and Error Banners now allow larger fonts and color selections. Multiple lines are also now supported for longer messages that may wrap text. These features are configured in the Panel Manager.
Our development team is continually working to improve the entire software user experience with every new release. We have added three new protocols, however many of the items in this release are requested by users and help to edit or navigate a project.

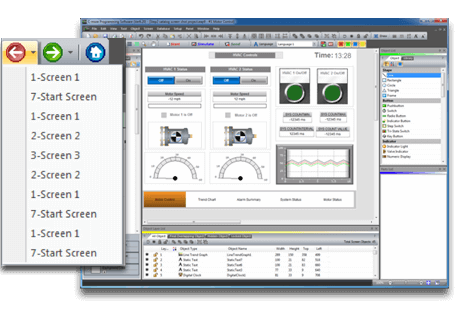

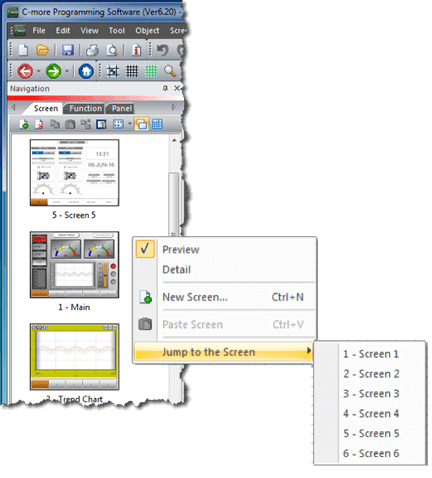

Navigate the project screens much faster using this new tool that retains a history of the screens as you have selected them:

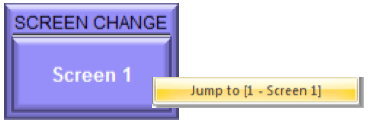

Right Clicking the mouse on the screen window will also enable the âJump to Screenâ list. This will list all the screens in our project with the screen number and the screen name. No more scrolling endlessly to find that screen you need.

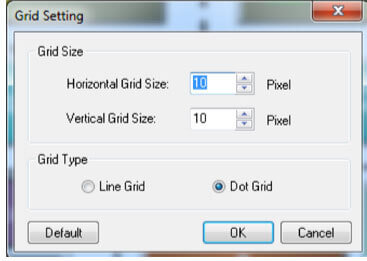

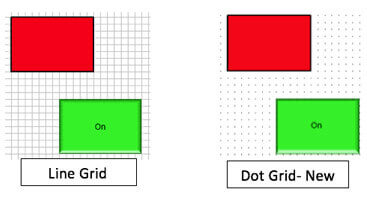

The Grid type for the Screen workspace has been improved to offer a foreground Dot Grid that helps for positioning objects on the screen

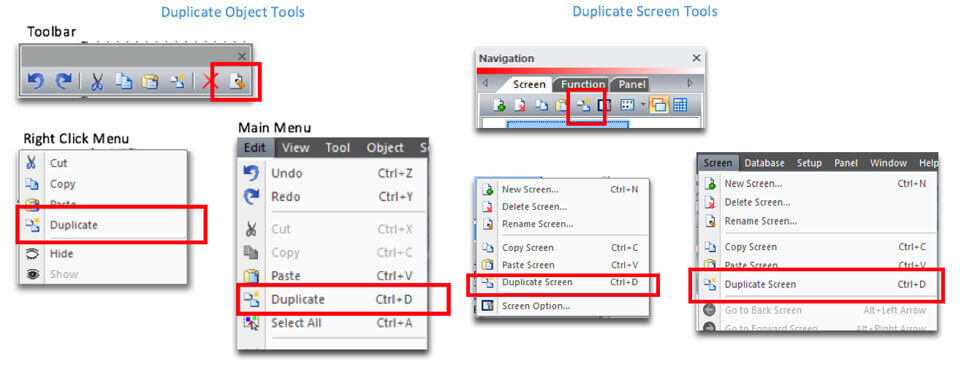

The Duplicate tool (Ctrl + D) allows you to duplicate selected objects or screens within the project. It does not use the windows Clipboard so there is no effect on the data stored in the clipboard.

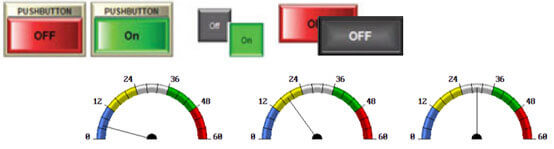

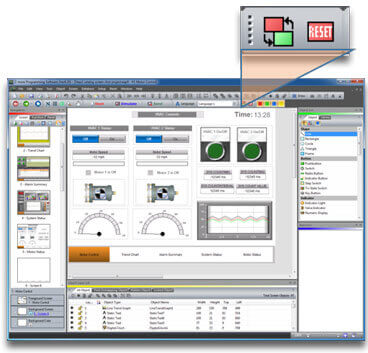

This new feature allows a you to quickly cycle selected objects or all the objects on a screen to visually see how the objects will appear in their active states. The tools are conveniently located on the main toolbar for quick access. And donât forget you can always use the and the Simulate feature to run a complete project simulation

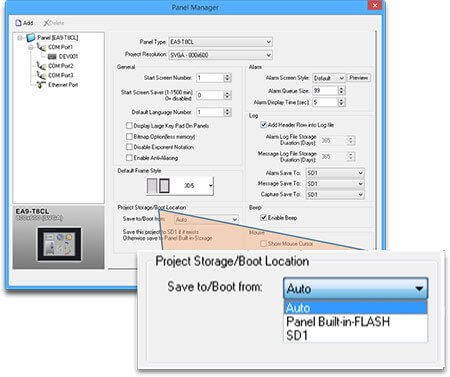

New options have been added for more choices on where to store the project in the panel. The Project Storage/Boot location tells the software the target memory storage location on the panel and also the sets the panels Boot location.
This feature allows the project to be loaded to the Built-in-Flash memory even when an SD1 card is installed. This leaves the SD1 card free for logging data if needed. The SD1 can then be removed for use without removing the project from the Panel

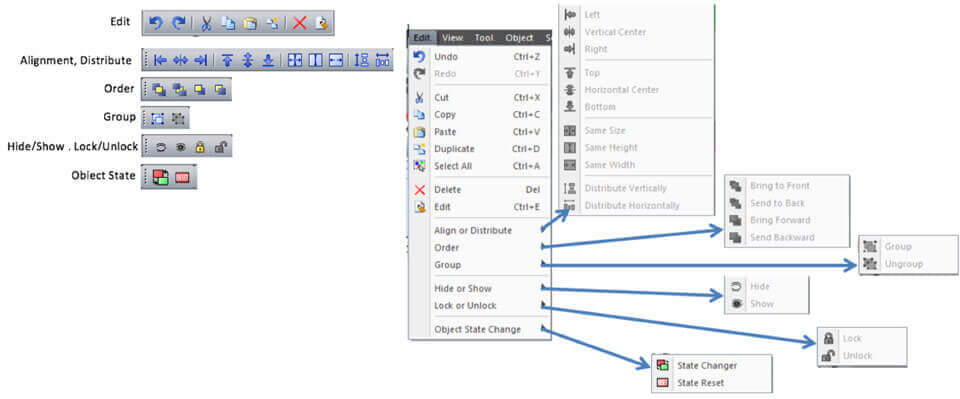

The Edit Tool has been grouped to for quicker access and to allow arrangement of the toolbars to better suit your editing preference.
