600V rated automation cables suit controls and instrumentation applications requiring flexibility. Continuous flexing and high-flex continuous flexing cables are available in shielded or unshielded styles. Order cables cut to your specified lengths, or in any bulk length.
This page will refresh momentarily.
Warning
Some of the selected facets have been selected by the {{ assistanceData.title }} Help.
Resetting/clearing ALL facets will end {{ assistanceData.title }} Help.
![Help icon]()
Selection Assistance - {{ assistanceData.title }}
600V Automation Cable
600V rated automation cables suit controls and instrumentation applications where flexibility is needed. A variety of flexing styles allow installation in even the most movement-intensive equipment. Cables from igus and LUTZE ensure high-quality, dependable installations, cut to length in one-foot increments, with minimum footage dependent on part number.
For part listings and specifications, go to Shop Now
igus Continuous Flexing Control Cable
igus Chainflex CF5 and CF6 series multi-conductor control cables are specifically designed, tested, and manufactured for continuous flexing, high mechanical load requirements.
- Conductor sizes from 0.5 mm2 to 2.5 mm2 (20 AWG to 14 AWG)
- 3 to 25 conductors, including ground
- Unshielded or shielded constructions
- Individual conductors with black TPE or PVC insulation, marked with white identification numbers
- PVC outer jacket is sunlight and oil resistant, and flame retardant
- Unique tear strip allows jacket to be opened like a zipper to the desired length
- Guaranteed service life between 5 million and 10 million cycles when operated within specified conditions
- UL/CSA Style 10492 and 2570, NFPA 79
- EAC; Certified to no. TC RU C-DE. ME77.B.01254
- Clean Room rated
Starting at
/ ft. (20 ft. min.)
(CF5-05-03-1)
LUTZE Continuous Flexing Control Cable
LUTZE SUPERFLEX® control cable is well suited for short to medium length articulated drag chain (C-tracks) installations where moderate to high performance is required. This cable features High Glide TPE insulation and a specially formulated PVC outer jacket resistant to sunlight, oil, and moisture penetration, making this cable ideal for indoor wet and dry applications or outdoor installations.
The multiple ratings and approvals for these cables support a wide range of industrial applications. They are suitable for both stationary and flexing applications with limited mechanical stress and free movement without any tensile stress, loads or forced movements.
- Conductor sizes from 21 AWG to 12 AWG
- 3 to 34 conductors, including ground
- Shielded and unshielded versions available
- Individual conductors with black PVC/TPE insulation, marked with identification numbers
- Multiple ratings and approvals include cUL AWM Style 2586; CE, RoHS, REACH
- Designed for linear constant motion
- Made in the USA
Starting at
/ ft. (20 ft. min.)
(A1482003-1)

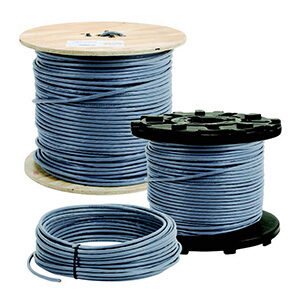

igus Tray Rated Continuous Flexing Control Cable
igus CF130US and CF140US series tray rated cables accurately transmit process signals in control applications that require continuous movement or cable flexing.
- Conductor sizes from 0.75 mm2 to 4mm2 (18 to 12 AWG)
- 4 to 25 conductors, including ground
- Unshielded or shielded constructions
- Individual conductors with black PVC/nylon insulation, marked with white identification numbers
- Low adhesion pressure extruded gray PVC mixture outer jacket is sunlight and oil resistant, and flame retardant
- Guaranteed service life between 1 million and 5 million cycles when operated within specified conditions
- UL Tray cable for exposed run (TC-ER) rating allows installation in cable tray or between tray and devices without the need for conduit
Starting at
/ ft. (20 ft. min.)
(CF130US-07-04-1)

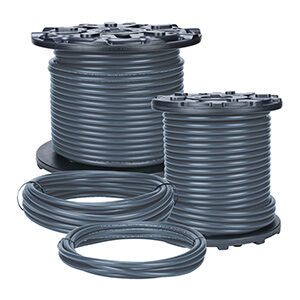

igus High Flex Continuous Flexing Control Cable
igus Chainflex CF9 and CF10 series multi-conductor control cables are specifically designed, tested, and manufactured for continuous flexing, high mechanical load application requirements, and can remain bent for long periods with no degradation in performance.
- Conductor sizes from 20 AWG to 14 AWG (0.5 mm2 to 2.5 mm2)
- Unshielded cables with 3 to 7 conductors (CF9), including ground
- Shielded cables with 4 or 5 conductors (CF10), including ground
- Stranded bare copper conductors with black TPE insulation, marked with white identification numbers
- TPE jacket is sunlight and oil resistant, and flame retardant
- Unique tear strip allows jacket to be opened like a zipper to the desired length
- Guaranteed service life between 5 million and 10 million cycles when operated within specified conditions
- UL/CSA Style 10492 and 2570, NFPA 79
- EAC; Certified to no. TC RU C-DE. ME77.B.01254
- Clean Room rated
- UL Recognized type AWM (appliance wiring material)
- PVC free
Starting at
/ ft. (20 ft. min.)
(CF9-UL-05-03-1)
