We didn't invent the PLC ...
We just made them affordable

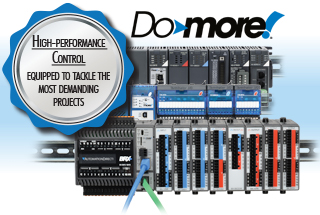

The Do-more PLC family

The Do-more PLC family is determined to get it done. This programming powerhouse has one of the most advanced instruction sets in the market and many other features that allow it to stand strong against any challenge.

Advanced Control:

• PLC units with built-in I/O and communications, plus stackable I/O modules
• Discrete and built-in high-speed I/O
• Analog with robust PID control
• Universal (all-in-one) analog and temperature I/O modules
• PWM outputs
• Coordinated motion control using on-board or expansion I/O modules and advanced motion instructions
• Ethernet, serial, USB and custom communications ports
• Internal RAM and external MicroSD data logging
• Project simulator
• Integrated security
• Rack-based systems also available
• Seamless integration with high-level IT systems and IIoT/cloud platforms using MQTT(S), HTTP(S), FTP protocols and Rest API capability (BRX only)

Starting at $213.00
(BRX PLC Unit)

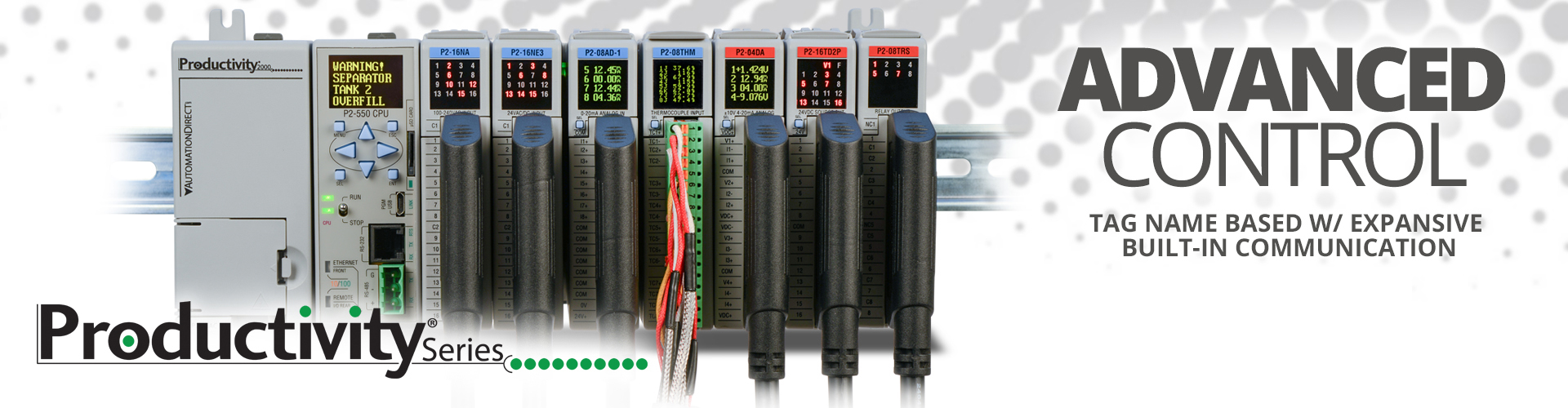

The Productivity Series PLCs

The Productivity family of PLCs is our most versatile family. In terms of hardware, Productivity offers three distinct form factors with two being rack-based and one being stackable. Each series (P1000, P2000, P3000) offers different I/O capacities but all use the same programming software, allowing you to easily scale your control up or down depending on the application or machine build. The ProductivitySuite software provides versatile programming with tag name addressing that has no predefined memory structure, and offers convenient device integration for easy plug-and-play operation with our PS-AMC motion controllers, GS drives, Protos X field I/O, and StrideLinx VPNs.

Advanced Control:

• Rack-based systems with pluggable CPU and I/O modules, or stackable form factor available
• Tag name based programming with 50MB user memory
• Numerous built-in communication options including Ethernet, serial, USB, remote and local expansion
• Support for EtherNet/IP (implicit and explicit) with convenient EDS library
• MQTT(S) capability for cloud networking connections
• Web server and mobile access
• OLED/LCD module data displays (P2000/P3000)
• Integrated motion controller, GS drive, StrideLinx VPN and Protos X field I/O support
• External microSD data logging
• Scalable platforms from 128 to over 59K I/O points with analog, discrete, pulse width modulation, and high-speed options
• ABS certified for marine applications (select P2000/P3000 modules)
• Project simulator
• Easy-to-use coordinated motion control with the PS-AMC motion controllers and built-in motion instructions

Starting at $237.00
(P1000 CPU module)

ProductivityCODESYS PLC

The ProductivityCODESYS PLC system combines the Productivity2000 hardware with a CODESYS engine for those who prefer CODESYS programming but need a low-cost hardware solution. The ProductivityCODESYS PLC does not support Productivity Suite software.

Advanced Control:

• Rack based system utilizing Productivity2000 bases, power supplies, and I/O modules
• CPU with CODESYS runtime application and numerous built-in communication ports
• Fully IEC 61131-3 compliant with sequential function charts, ladder diagrams, function block programming, structured text, and more
• Several CODESYS add-on licenses included for fieldbus communication, system visualization, and IIoT applications

CPU priced at $534.00
(ProductivityCODESYS CPU)

The XGB PLC is designed and manufactured by LS Electric - a well-established, global PLC manufacturer with over 40 years of experience. This controller series features many advanced features and although it is designed with motion control in mind, its many capabilities would prove beneficial in any application.

Advanced control:

• Super compact design
• 7 stackable, micro PLC processors with up to 16 inputs and 16 outputs including motion control capability
• 2-axis and 6-axis versions available
• NPN and PNP versions available
• 4 high-speed counter inputs, 4 preset inputs
• Support for several positioning methods including linear, circular, helical, and ellipse interpolation
• Ethernet, serial, and USB ports
• Supports up to 7 expansion modules including analog I/O, high-speed counter, EtherCAT, and EtherNet/IP modules
• EtherCAT expansion modules allow for up to 16 axes of ultra precise motion control
• Supports several IEC standard programming languages including structured text
• Project simulator
• Up to 16 PID loops for reliable process control

Starting at $307.00
(XGB PLC Unit)
