What's New at AutomationDirect

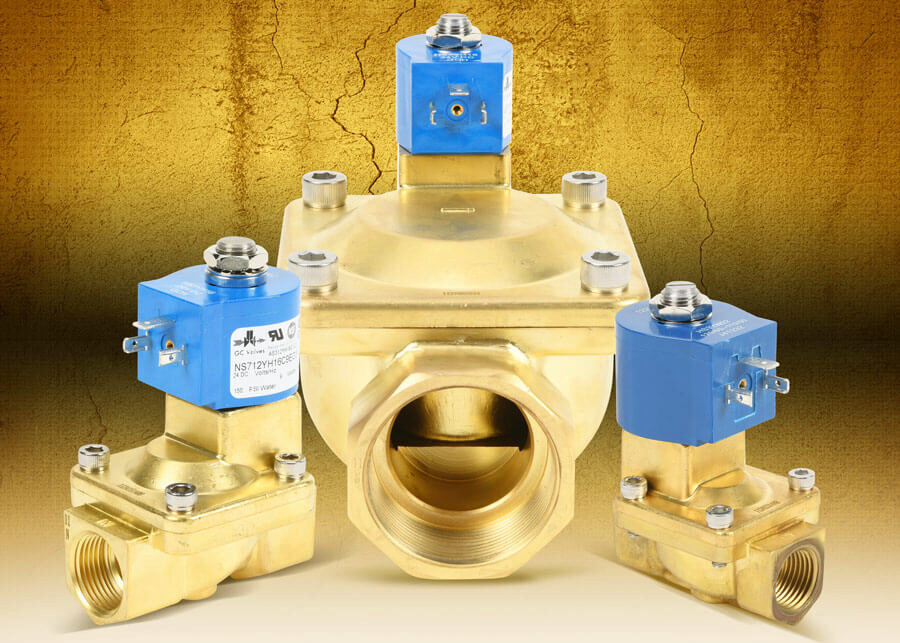

GC Valves 71 series 2-port water valves are now available and are constructed of durable lead-free brass. They are certified to NSF/ANSI 61 and have NSF-approved EPDM diaphragms. They are a great choice for drinking water applications and are ported for the most popular NPT sizes (up to 2") with a 120 VAC or 24 VDC solenoid coil. Series 71 valves are offered in normally closed (N.C.) or normally open (N.O.) styles, have a piloted diaphragm, and include an 18mm (DIN 43650A) style wiring plug. These valves also feature a 150 or 200 psi max operating pressure.

GC Valves NSF brass water valves are made in the USA, have a 3-year warranty, and start at $128.00 (NS711YH02C9CG1).

ICON Process Controls Truflo^® TKM series paddle wheel liquid flow meters provide reliable, full-pipe liquid flow measurement with exceptional long-term performance. These rugged, highly repeatable sensors deliver outstanding value with no scheduled maintenance required. Built with a chemically resistant PVC body, they are ideal for corrosive liquid process applications. Each unit comes preprogrammed, and offers a bright, 360° rotatable LED display for clear, convenient readability.

Models offer sensing ranges up to 357 GPM and are available with 1/2 to 2-inch Schedule 80 socket process connections. Featuring 4-20 mA and pulse outputs, they incorporate the proprietary ShearPro^® paddle wheel and through-pin designs for enhanced reliability and ±0.5% accuracy. The true-union design enables easy installation, allowing quick sensor removal and servicing without disrupting the pipeline.

The new ICON flow meters are CE marked and RoHS compliant. They offer a NEMA 4X and IP66 protection rating, a 1-year warranty, and start at $944.00 (TKM-15-P).

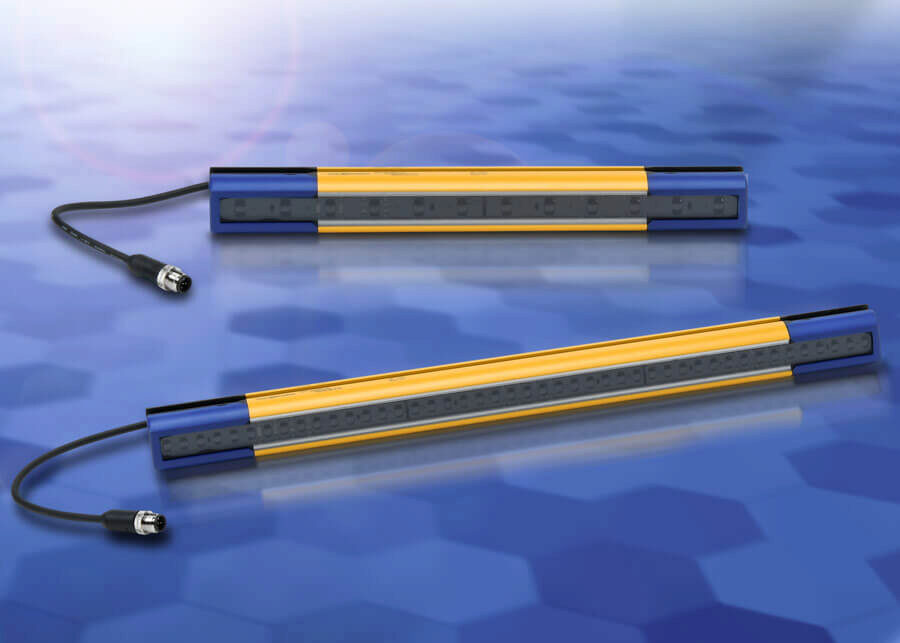

Datasensing SH4 series 14mm finger and 30mm hand safety light curtains are available in basic models with automatic restart or standard models, which add external device monitoring (EDM) and an optional manual restart. Body protection models in 300 or 400mm resolution are available only in the standard version. The finger and hand protection light curtains offer no dead zone for maximum protection.

14mm resolution light curtains provide a protective height from 300 to 1200mm and operate at a distance of 0.2 to 10m. Hand protection models provide a protective height from 300 to 1800mm and have a 0.2 to 20m operating distance. The body protection models come in protective heights from 800 to 1200mm and operate from 0.5 up to 70m.

All light curtains for this launch include 2 OSSD outputs, M12 connectors, IP65 and IP67 protection ratings, and simple alignment with an LED guide. Accessories to aid with installation and setup are also offered.

Datasensing SH4 Category 4/Type 4 safety light curtains are available as sender/receiver pairs, come with a 1-year warranty, and start at $602.00 (SH4-30-0300-B-5).

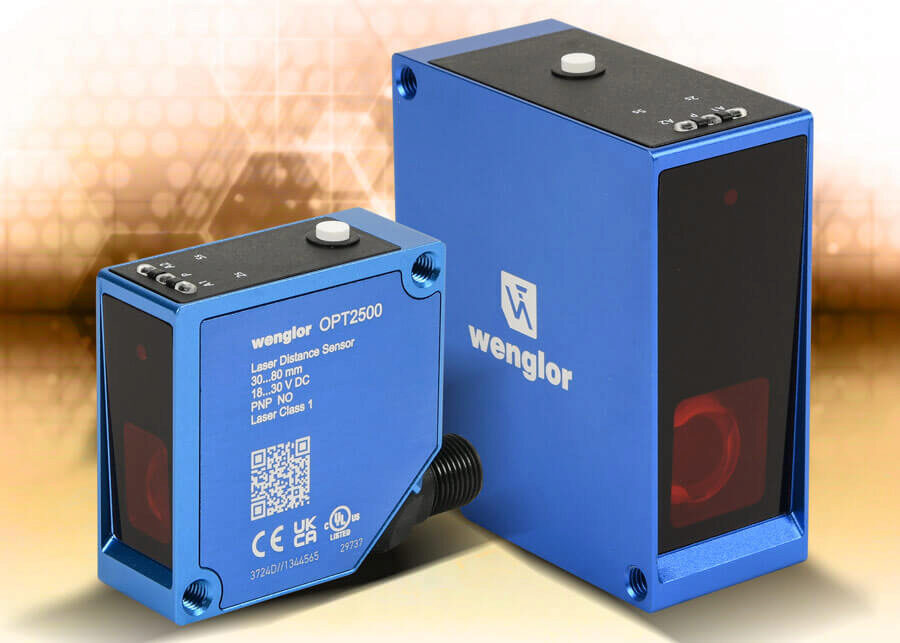

Wenglor OPT25 series laser measurement sensors offer best-in-class distance sensing for ranges within 1 meter. These sensors are IO-Link v1.1 compatible, employ a Class 1 red or Class 2 blue laser, use triangulation to measure distances with extreme accuracy, and can reliably detect tiny objects with a reproducibility up to 0.8µm.

Powered by Wenglor's proprietary TripleA technology, the OPT25 series ensures precise distance readings regardless of object material, color, or shape, even in demanding environments with fluctuating light and temperature conditions. They can even detect flat objects directly in front of a background. T-splitters are also offered to allow two sensors to make automatic thickness measurements.

Blue laser light models provide enhanced performance for red-hot or organic surfaces, polished metals, shiny plastics, or dark paints. The shorter wavelength blue laser light does not penetrate as deeply into the surface, resulting in high accuracy. Sensor configuration methods vary by model, with options including a teach-in button, an easy-to-read OLED display, or the intuitive Wenglor weCon Bluetooth app.

The new Wenglor laser measurement sensors are UL Listed, CE and UKCA marked, and RoHS compliant. They offer a 1-year warranty and start at $802.00 (OPT2512).

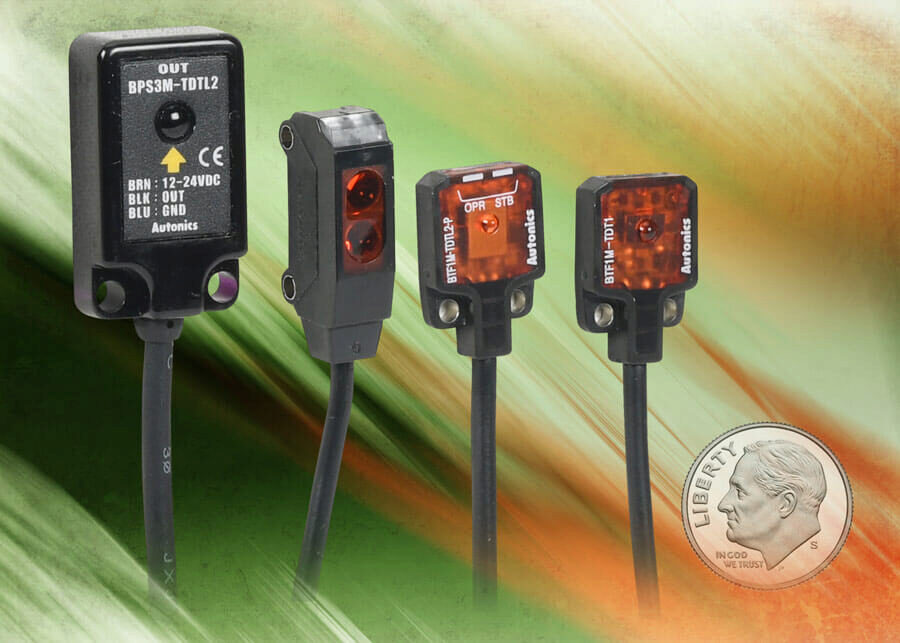

Autonics BTF, BTS, and BPS series miniature photoelectric sensors feature ultra-compact slim or narrow housings that are easy to install in tight spaces. The lineup includes:

• BTF ultra-thin series with housings only 3.7mm thick (4.6mm including lens)
• BTS ultra-slim series with housings only 7.2mm wide
• BPS compact series low-profile, flat housings only 7.5mm thick (8.1mm including lens)

These miniature sensors offer sensing distances up to 3m, durable PBT thermoplastic housings, and an IP67 protection rating. They feature highly visible red LED or infrared light sources for reliable detection and are available in diffuse, diffuse with background suppression, retroreflective, and through-beam sensing styles.

The new Autonics miniature photoelectric sensors are CE and UKCA marked and RoHS compliant. They offer a 3-year warranty and start at $79.00 (BTF30-DDTL).

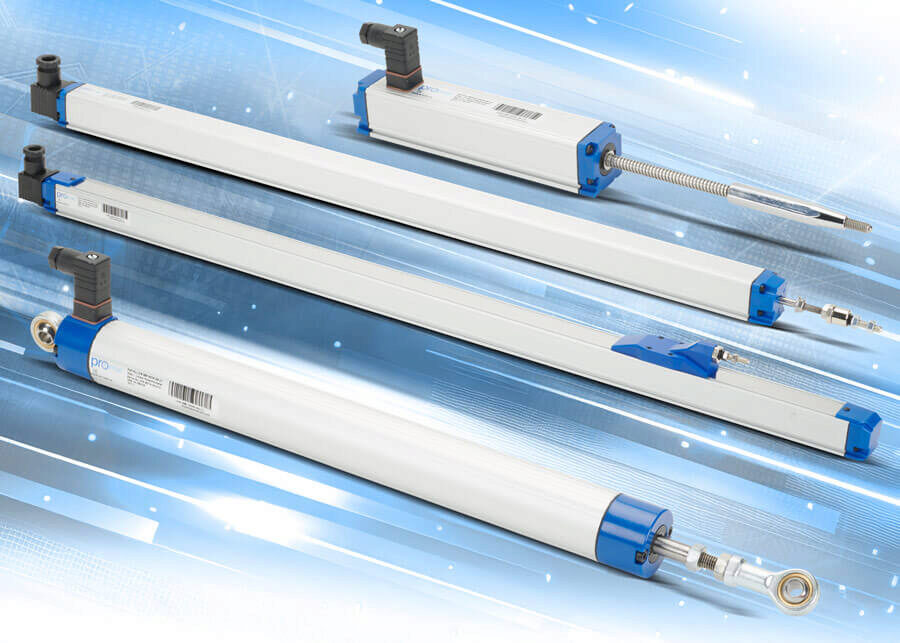

New ProSense linear potentiometers offer reliable and consistent position measurement while delivering exceptional value and performance. These position sensors measure linear displacement by converting mechanical movement into a resistive output. Typically, they require a signal conditioner or a 10 VDC supply to provide an analog signal for a PLC.

ProSense linear potentiometers provide accurate position feedback for a variety of applications, from manufacturing equipment and robotics to automotive systems. These versatile devices are offered in fixed, rodless, spring-loaded, and pivoting-slide mechanical styles with stroke lengths ranging from 10 to 1250 mm.

The new ProSense linear potentiometers are CE marked, RoHS compliant, and offer a 1-year warranty. They are competitively priced and start at $94.00 (LSR-33P-0030-A5-C1).

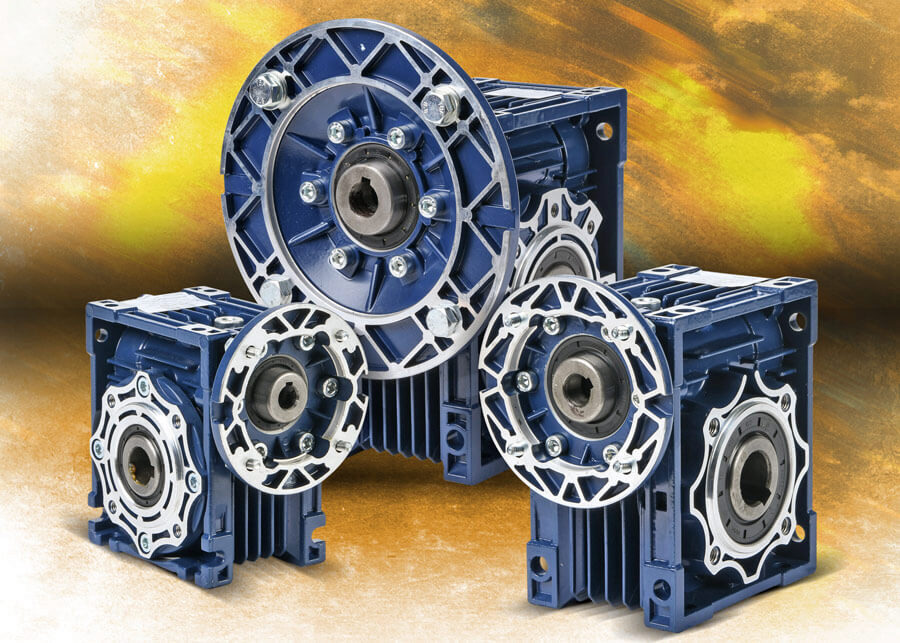

IronHorse worm gearboxes with IEC inputs offer all the same features and advantages as our existing aluminum models, including 30mm to 75mm frame sizes, 10:1 to 100:1 ratios in most sizes, and maintenance free operation. They are factory filled with synthetic oil and their double lip oil seals prevent leakage. These new models offer IEC input flange types B5 and B14 in order to fit IEC motors in frame sizes 63, 71, 80, and 90.

Just like their NEMA input counterparts, they offer hollow shaft outputs, with single or double output shafts available as accessories, and a hardened worm shaft for increased durability.

Aluminum worm gearboxes are a lower cost, lower weight alternative to stainless steel and cast-iron models. They are ideal for medium-duty applications that have a less frequent run rate or can justify a shorter service life.

IronHorse aluminum gearboxes with IEC inputs start at $118.00

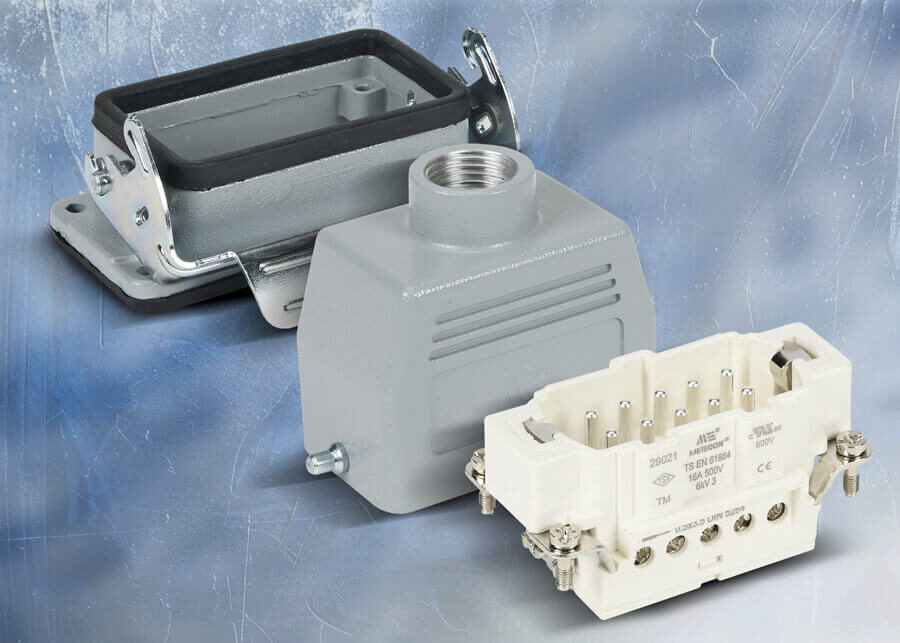

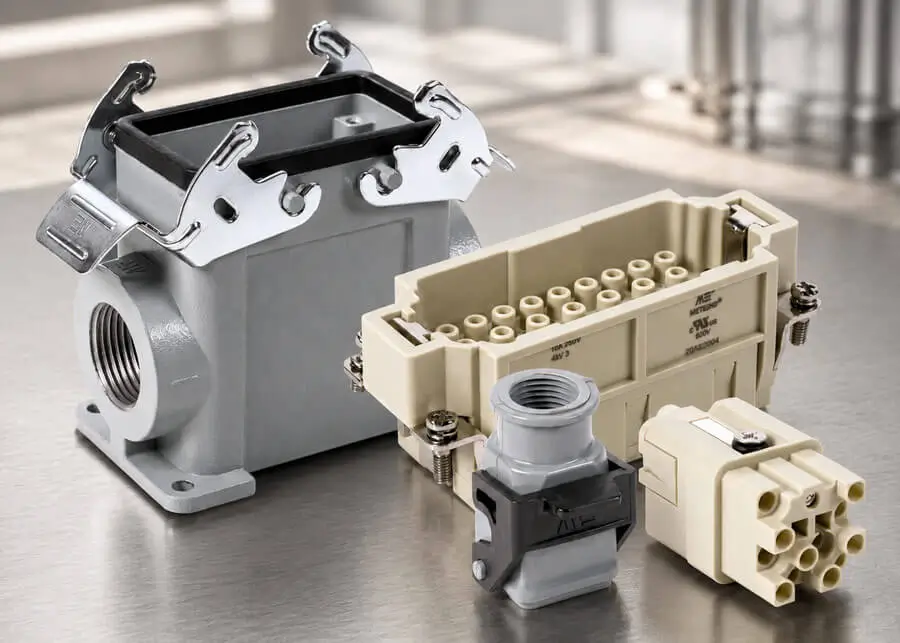

METEcon multi-wire connectors feature quality and cost-effective inserts and housings. Inserts are available in multiple pole configurations from 2 poles plus ground up to 108 poles plus ground, with screw or crimp termination types and sizes ranging from 26 to 12 AWG, 10 to 80 Amps. METEcon housings are made of die-cast aluminum with a polyester powder finish or self-extinguishing thermoplastic and are suitable for use in electrical panels, power connections, and other industrial applications. Crimp contacts ensure a gas-tight, corrosion-free connection with very low contact resistance. METEcon multi-wire connectors provide secure connections and carry UL and CE agency approvals.

METEcon multi-wire connector housings start at $1.50 (29644), inserts start at $2.00 (29007), and crimp contacts start at $35.50 / 100pk. (14106164).

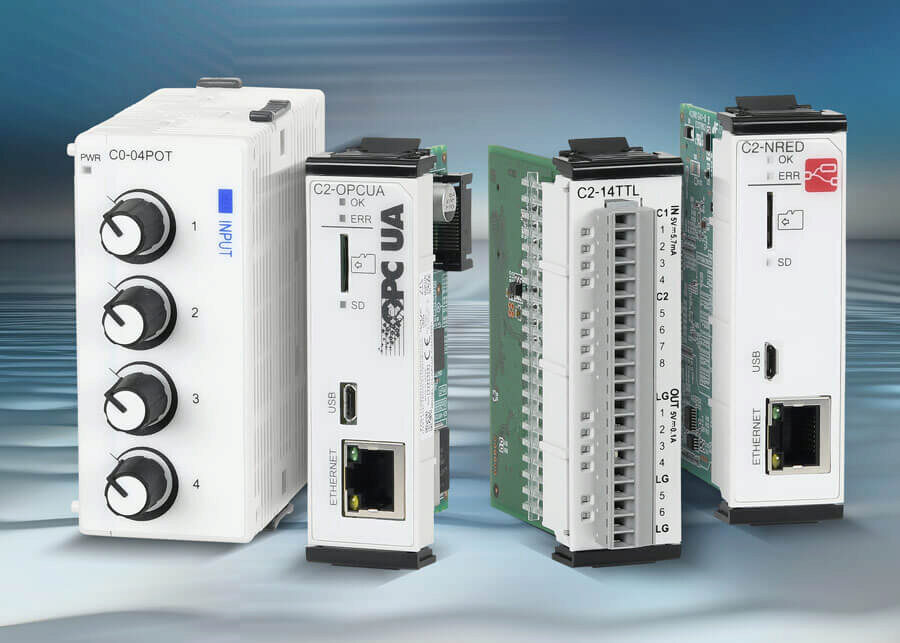

CLICK PLUS CPUs offer the utmost versatility with up to two option slots for custom I/O configurations. These option slots also allow for specialty modules including the C2-DCM serial communication module and the new C2-NRED and C2-OPCUA modules.

The C2-NRED module provides an industrial interface to the most popular open-source software tool for developing IIoT applications - Node-RED^�. With low-code Node-RED programming, you can easily facilitate interactions between the CLICK PLUS CPU and upper-level IT/business systems. This intelligent module utilizes its own processor, ensuring the main CPU remains unburdened but has direct access to the memory of the PLC and all the data needed. The C2-NRED also supports custom JavaScript programming, extending the CLICK PLUS platform's functionality even further.

OPC UA� (Open Platform Communications Unified Architecture) is a long-standing communication protocol used throughout industry and provides a standardized way for industrial systems, regardless of manufacturer, to communicate and share data. The C2-OPCUA module, when added to a CLICK PLUS CPU, allows the simplicity and reliability of CLICK PLCs to be deployed in many more applications that support this protocol.

Also now available is the C2-14TTL option slot module which supports up to 14 low-voltage (~5VDC) high-speed motion control signals. TTL I/O has a much faster response time than standard I/O and provides a long service life due to solid-state switching.

For both the CLICK PLUS and standard CLICK PLCs, a new 4-channel 12-bit analog simulator (C0-04POT) is available. This stackable I/O module connects to the side of the CPU and provides 4 potentiometers that can be used to simulate an analog device for testing or manual control.

All modules come with a 2-year warranty and a 45-day money-back guarantee.

The new option slot modules for CLICK PLUS CPUs start at $65.00 for the C2-14TTL output module, $195.00 for the C2-OPCUA module, and $235.00 for the C2-NRED module. The stackable C0-04POT analog simulator for CLICK and CLICK PLUS is only $68.00.

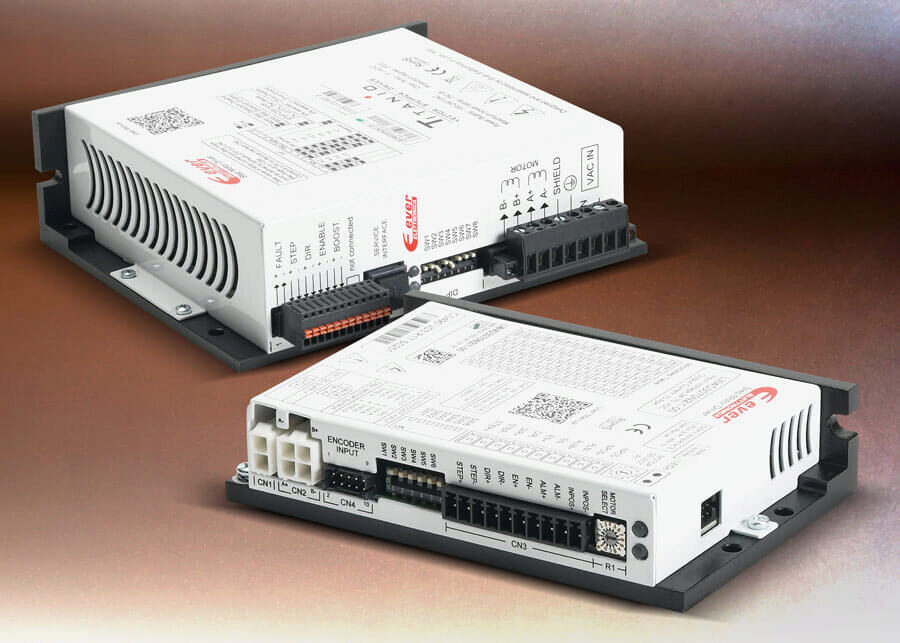

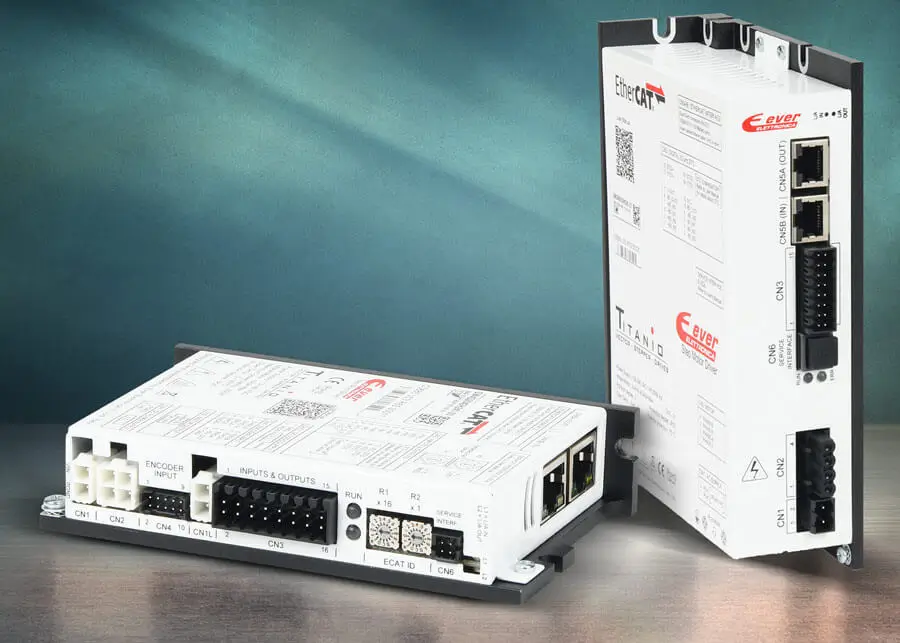

The new Titanio series of stepper drives from Ever Motion Solutions^® offers peak performance, a rich feature set, and works with our existing SureStep^® stepper motors. Three new drives are available with two open-loop (no encoder feedback) models and one open/closed-loop version (a motor mounted encoder provides position feedback to the drive). Unlike typical stepper drives, Titanio steppers can detect stalls in open-loop control mode by monitoring the motor's back EMF. This allows system designers to take advantage of stall detection without the hassle and expense of a closed-loop system.

Among other advanced features, the Titanio drives use sinusoidal current control to provide extremely smooth motor movement, with reduced audible noise, significant dampening of vibration and resonances, and higher system efficiency (less heat) along with increased and more consistent torque output at all speeds.

The LW3A model is a high-bus-voltage unit which accepts 100-240 VAC power input and is compatible with all STP-MTRACx series high-bus-voltage stepper motors.

While basic dip-switch setup is possible for all models, the optional Ever Studio configuration software (a free download) allows advanced configuration of the LW3A and LW4D stepper drives, including setup of additional microstepping resolutions, and even allows jogging/indexing and a built-in oscilloscope for tuning and debugging the LW4D.

Ever Motion Solutions stepper drives start at $105.00 (LW4D3070N2I1-00).

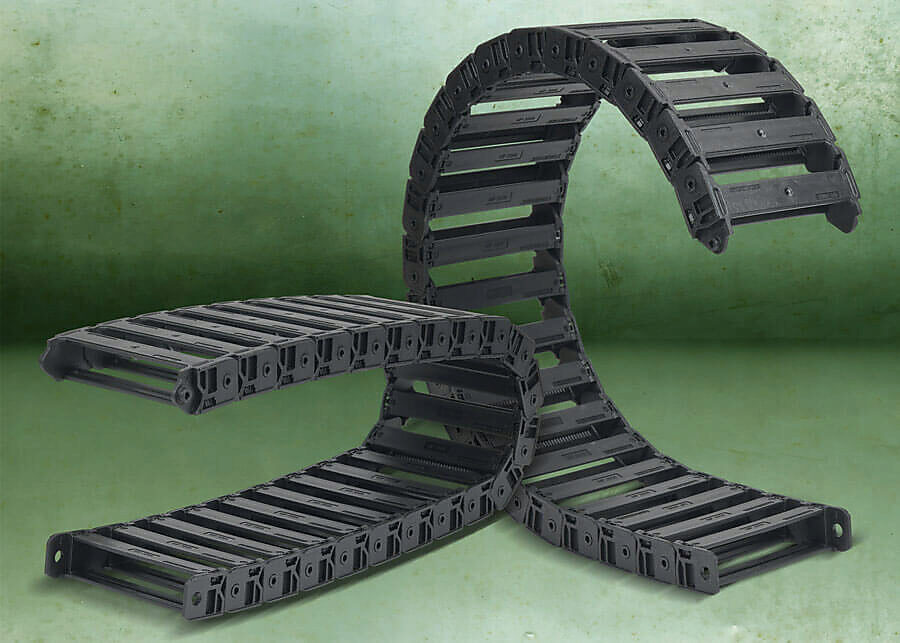

Murrplastik MP10 series cable/hose drag chains and chain brackets have been added to our growing selection of wire and cable management products. Drag chains route cables/hoses to moving components and help to extend cable/hose life, provide protection for personnel, and reduce equipment downtime and repair costs. The MP10 series is built from rugged polyamide (PA) and is available in various widths with support for cables up to 8mm in diameter. MP10 series cable / hose drag chains feature open slots that allow cables and hoses to be added or replaced after installation. In addition, they can easily be extended or shortened by adding or removing chain links, are available with one, two, or three chambers to enable segregation of cables/hoses within the same chain, and have end brackets that provide secure mounting points.

Murrplastik MP10 drag chains start at $31.00 (CDC-04X02R07T) and drag chain accessories start at $5.50 (CDC-KAZ-04X02).

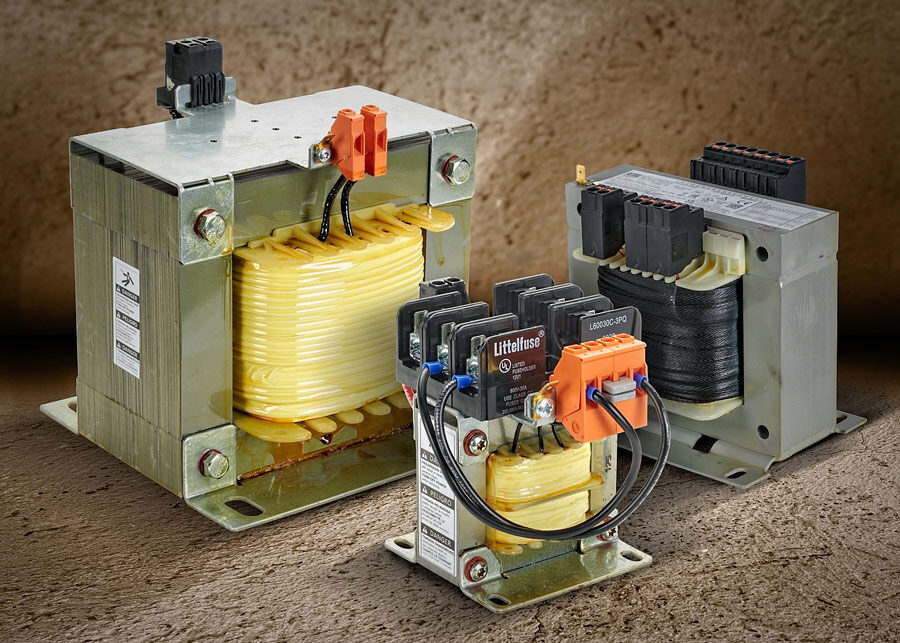

BLOCK CT and USTE series open core control transformers provide a flexible solution for stepping down a wide range of voltages from 208 to 600 VAC.

The BLOCK CT series is made in the USA, offering a rugged design specifically engineered for isolation, lighting, or signaling systems. It is available with a 240/480 or 600 VAC primary and a 24 or 120 VAC secondary. Ratings range from 50 to 2500 VA, providing a cost-effective solution to guarantee uninterrupted power delivery in various applications. Fused versions are available.

The BLOCK USTE series provides a versatile solution for a wide range of input voltages, allowing OEMs and system integrators to save time and reduce costs by standardizing on a single model. Available in ratings from 40 to 3200 VA, they feature low inrush current, tool-free push-in wire terminals, and thirteen jumper selectable primary inputs from 208 to 600 VAC. In addition, the 12/24 VAC models comply with safety standards to ensure a safe power supply for SELV (Safety Extra Low Voltage) circuits.

BLOCK open core control transformers are RoHS compliant, CE marked, and come with a 3-year warranty. The CT series is UL Recognized and starts at $53.00 (CT-005-060-24-0), while the USTE series is UL Listed and starts at $64.00 (USTE40/2X12).

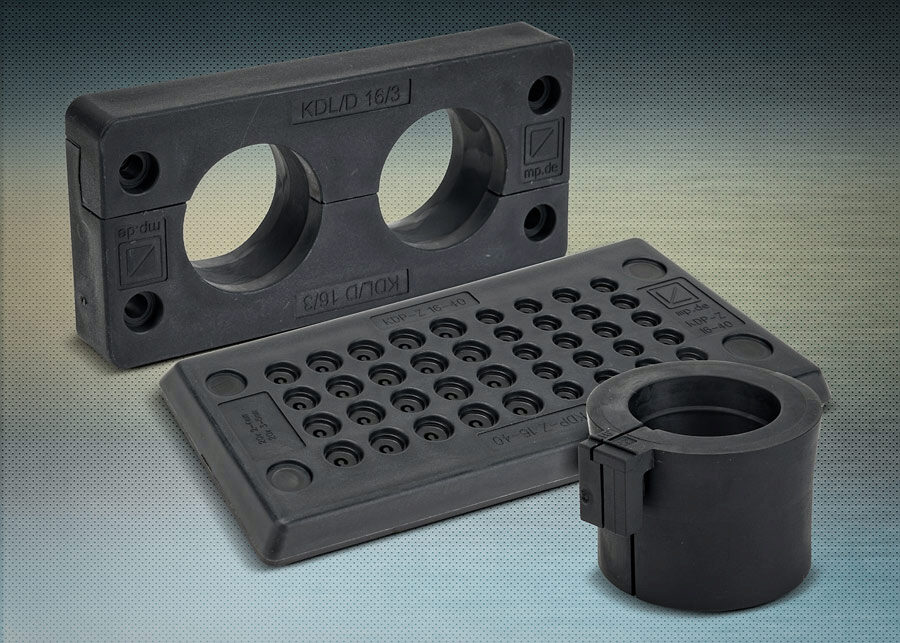

Additional Murrplastik frames and grommets have been added to our current offering of cable entry systems. Cable entry frames used in conjunction with the required grommets provide easy cable installation through an enclosure and strain relief while maintaining environmental ratings. This expansion adds more frame sizes to our existing KDL/D and KDL/D-Mono series, a blank large BTG/XL grommet to the KDT/X series, and the new KDL/D-R and KDP/Z series which provide more solid- and split-frame options. The KDP/Z series features a built-in sealing membrane that does not require separate grommets to be purchased.

Murrplastik KDP/Z series frames have a high IP65, IP66, IP67, IP69K protection rating (depending on model) and start at $63.00 (567409); KDL/D, KDL/D-R, and KDL/D-Mono series frames start at $29.00 (568318), and KDT/X and BTG/XL large grommets start at $15.00 (568375).

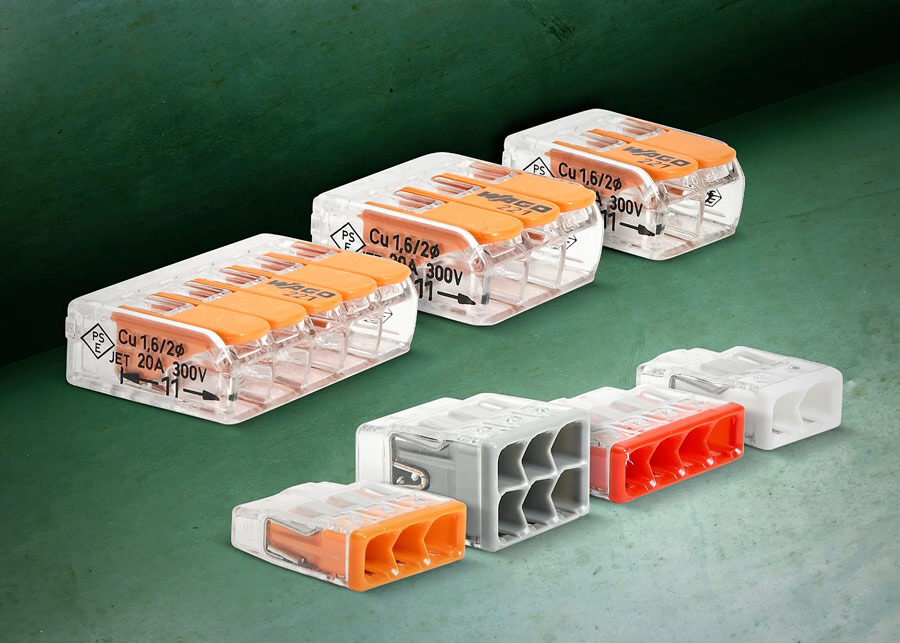

Our growing selection of wiring solutions has expanded to include WAGO splicing connectors. The 221 series LEVER-NUTS^� are equipped with WAGO's CAGE CLAMP^� spring technology, allowing quick and easy connection of all conductor types of different cross sections using two-, three-, and five-wire connectors without soldering or using tools. The 221 series connectors accommodate solid, stranded, and fine-stranded conductors in two variants from 12-24 AWG and 10-20 AWG. The 221 series inline splicing connector includes all the trusted advantages of the 221 series but in a slim design. The 2773 series' PUSHWIRE^� technology allows solid, stranded, ferruled, and fine-stranded conductors to be terminated by simply pushing them in, with no operating tool needed.

WAGO 221 series LEVER-NUTS splicing connectors start at $14.00 / 25pk. (221-415), the inline 221 series splicing connector is priced at $22.00 / 60pk. (221-2401), and the 2773 series splicing connectors start at $8.00 / 60pk. (2773-405).

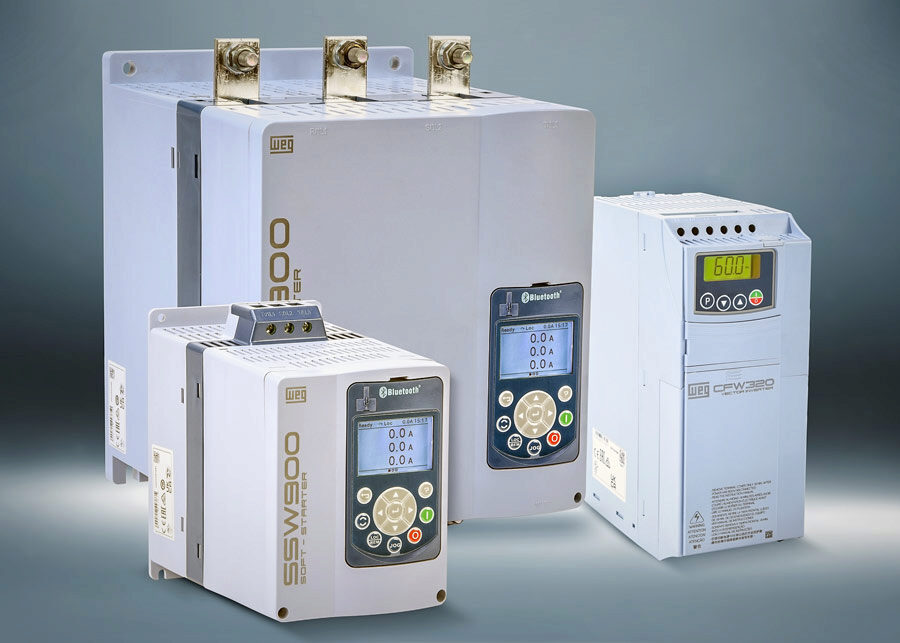

New WEG general-purpose CFW320 AC drives and full-featured SSW900 soft starters are now available. The CFW320 series VFDs offer all the features of the existing CFW300 plus provide support for 460 VAC operation and Ethernet communications. These drives support 230 VAC 3-phase motors up to 5 hp and 460 VAC motors up to 10 hp. Dynamic braking is built in on many models, so no external braking chopper is required. The optional Ethernet module communicates over EtherNet/IP and Modbus TCP networks.

The new SSW900 soft starters offer motor support up to 950A and a voltage range of 220-575 VAC. These soft starters feature an advanced setup with parameter help and event history on the included HMI. Software setup is optional using free WPS software and the same software is used for all WEG drives and soft starters. Ethernet communication is optional on the SSW900.

All WEG AC drives, soft starters, and accessories come with a 1-year warranty. WEG CFW320 drives start at $165.00 (CFW320A01P6S2NB20) and the SSW900 soft starters start at $860.00 (SSW900A0010T5E2B).

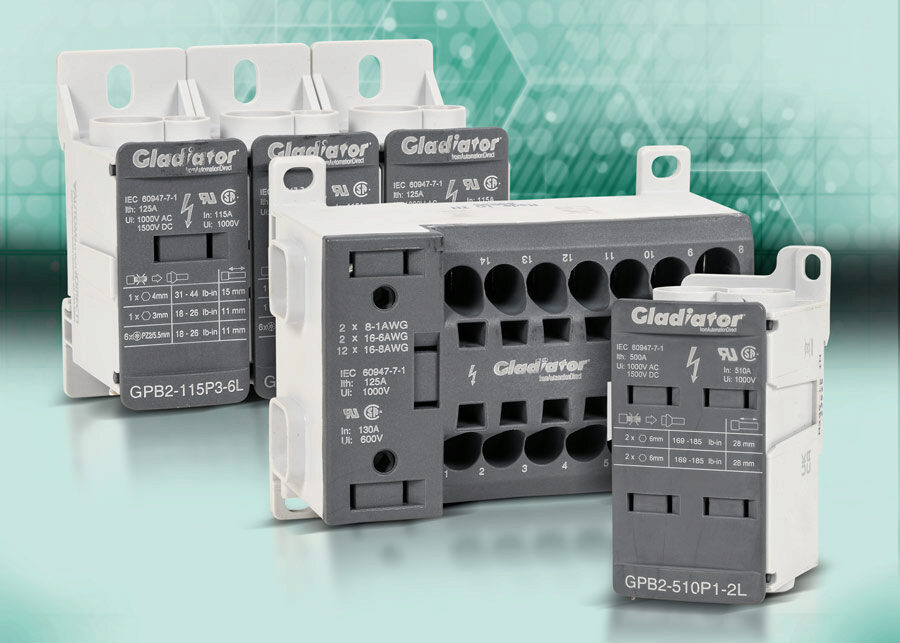

New Gladiator GPB1 and GPB2 series enclosed style terminal blocks provide a safe and reliable way to connect multiple electrical circuits to a single power source.

The GPB1 series terminal blocks are ultra-compact, offering time-saving multiple wire connection options for a variety of control panel applications. Push-in spring connections save installation time by locking the screwdriver into place for virtually hands-free wiring. GPB1 series terminal blocks are offered in ampere ratings up to 130 Amps and voltage ratings up to 1000 VAC / 1500 VDC (suitable for solar applications). They provide an IP20 finger-safe protection rating and a 100kA SCCR with proper fusing.

The GPB2 series terminal blocks feature a space-saving modular design and an innovative interlocking system for easy multi-pole assembly. They offer a 100kA SCCR rating with proper fusing and are available in ampere ratings up to 510 Amps and voltage ratings up to 1000 VAC / 1500 VDC (suitable for solar applications). The blocks can be reversed to group multiple inputs into a single output. Covers can be opened in two directions; pre-printed markers provide fast and easy identification.

The Gladiator enclosed style terminal blocks and busbars are UL recognized, CE approved, and RoHS compliant. They come with a 1-year warranty and start at $11.25 (GPB2-80P1-4L).

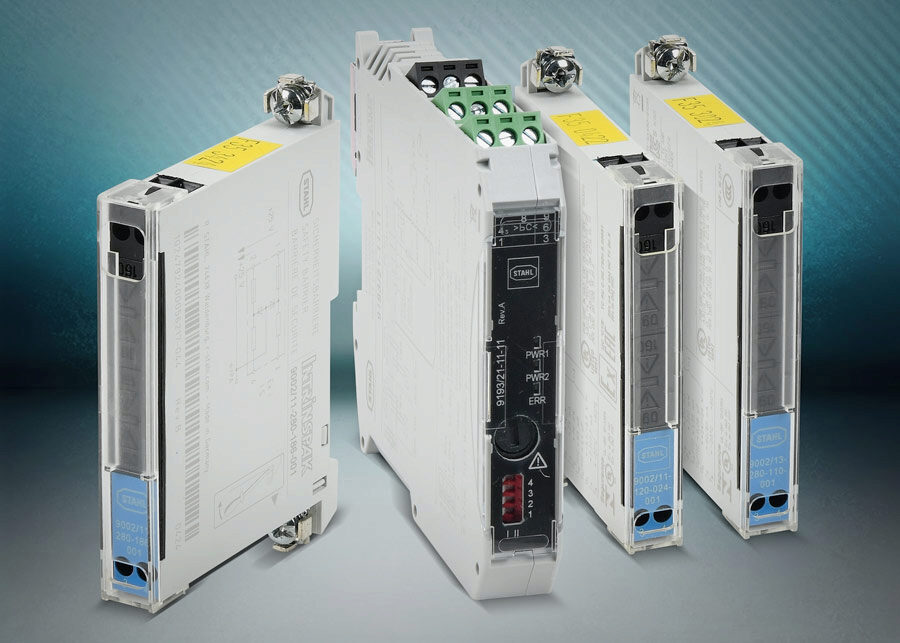

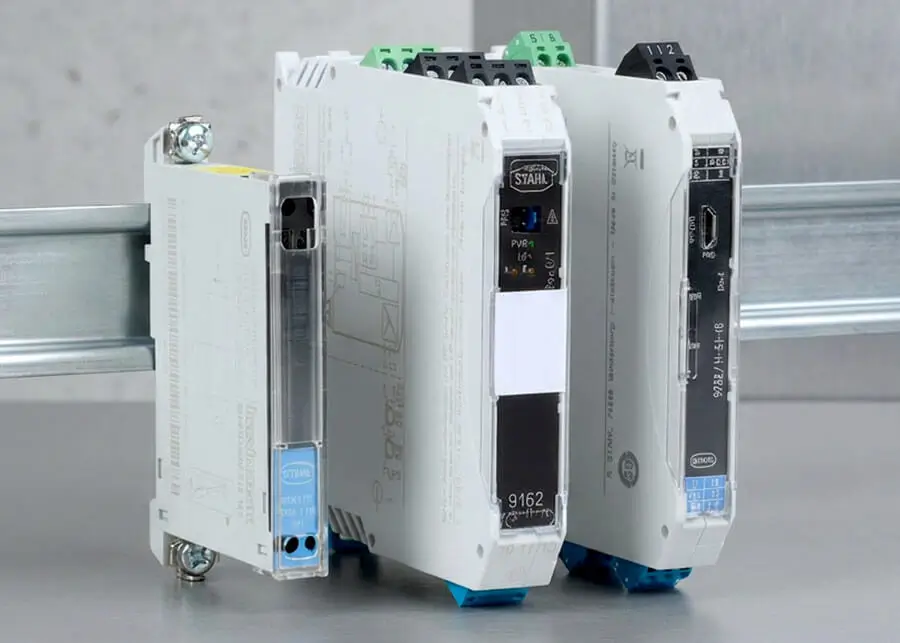

Additional Zener barriers from STAHL have been added to isolate various control signal types from hazardous environments. For automated systems installed in potentially explosive atmospheres (ex., oil and gas production), extra precautions must be taken to ensure the electrical circuits do not become ignition sources. Properly grounded Zener barriers isolate the electrical signal from the hazardous area. New barriers are available to protect the following circuits: 4-20 mA/PNP sensor, NPN sensor/dry contacts, pulse trains (11 or 18 VDC), and strain gauges.

STAHL Zener barriers come with a 1-year warranty and start at $201.00 (9002/22-240-024-001).

AutomationDirect announces the addition of configurable and programmable safety relays from Schmersal. Many safety systems require more than one specialty safety relay but don't justify the need for a safety controller. Schmersal PROTECT SRB-E configurable relays are easy to set up and reduce the number of safety relays required for a machine or system. They include up to 4 pairs of safety inputs and up to 5 safety outputs. Configurable relays support several different applications and can monitor all conventional safety devices. Schmersal PROTECT SELECT programmable relays can replace up to 8 safety relays, have a simple multilingual menu on a color display, and report error and status messages. Programmable relays require no prior programming experience and offer 4 pre-configured safety monitoring programs to choose from.

All relays provide a safety level up to PLe/SIL 3, come with a 1-year warranty, and start at $171.00 (SRB-E-201LC).

Dold VARIMETER series voltage and phase monitoring relays safeguard electrical equipment and prevent costly downtime by evaluating voltage levels and phase sequences to provide early detection and response to abnormalities such as undervoltage, overvoltage, phase loss, phase reversal, and phase imbalance. The VARIMETER series monitoring relays feature wide voltage measuring ranges, compact frame sizes, and integrated terminal bases.

The new Dold voltage monitoring relays are available in measuring ranges up to 250 VDC or 300 VAC. They continuously monitor voltage levels and respond when the voltages exceed or fall below a predetermined threshold. Four single-turn switches offer quick and easy configuration for a broad range of applications.

VARIMETER series phase monitoring relays detect phase unbalance, phase reversal, phase loss, and missing or broken neutrals in three-phase AC systems up to 525 VAC. Select models offer advanced phase loss protection, while others provide overvoltage, undervoltage, voltage range, and missing neutral monitoring options for single- or three-phase applications. Simple single-turn switches allow quick and easy configuration without a complex menu structure.

The new Dold VARIMETER series phase and voltage monitoring relays are UL listed, CE marked, and RoHS compliant. They offer a 1-year warranty and start at $110.00 (RN9877-1203P4W525V)

Seven new sizes of PBC Linear guide tracks with slides are now available in lengths up to 2000mm. The guide tracks are ceramic coated 6061-T6 aluminum, paired with a self-lubricating slide. The slides have a proprietary, PTFE (FrelonGOLD^�) plain bearing bonded to the mating surface.

These guide tracks and slides are rated for static loads up to 8,200 N (1,843 lbf) and extreme temperatures from -400�F to 400�F (-240�C to 204�C). They offer smooth, quiet operation with inherent vibration damping and shock resistance, and the maintenance free bearing surfaces require no additional lubricant.

New roller pillow blocks have aluminum housings with sealed cam follower bearings (carbon steel) and offer linear travel speeds up to 7.6m/s (25ft/s). These industry-standard pillow blocks are designed for use with precision ground linear shafts such as the PBC Simplicity 60 Plus series (sold by AutomationDirect) and are available in single, double, and twin styles. Single styles are self-aligning and can be used on curved rails.

New PBC Linear guide tracks with slides included start at $47.00 (MR07-0100-1). The roller pillow blocks start at $140.00 (SPB-12-OPN).

Southwire flexible metal conduit has joined our growing selection of electrical conduit and wiring solutions. Southwire's Alflex^™ type RWA (Reduced Wall Aluminum) and Galflex^™ type RWS (Reduced Wall Steel) conduits are built using a metal strip that is helically formed into a continuously interlocked flexible metal conduit which can withstand impact and crushing forces. Southwire's Alflex type RWA and Galflex type RWS are designed for use with connectors intended for NEC Type FMC (Flexible Metal Conduit) and are REACH/RoHS-2 compliant. Alflex type RWA is manufactured with a lightweight, high-strength aluminum alloy 66% lighter than steel and has superior corrosion resistance. Galflex type RWS is hot-dipped for a heavy zinc, rust/corrosion resistant coating.

Alflex type RWA flexible metal conduit coils start at $22.00 (55082021), and Galflex type RWS flexible metal conduit coils start at $25.50 (55081711).

ProSense FLG series detecting grids offer a cost-effective solution for object detection, featuring a simple setup with no programming required. They have no dead zone on the full detection height and are perfect for a variety of applications, such as material handling, counting, and warehousing.

The ProSense FLG series detection light grids with discrete complementary outputs provide object detection signals and are available with detection heights up to 1580mm. They offer 20 or 40mm beam resolution options, a 0.1 to 10m operating distance, and rugged aluminum housings with an IP67 protection rating.

ProSense detection light grids are NOT protective devices and should not be used to guarantee personnel safety.

ProSense FLG series detection light grids are sold in sender/receiver pairs, are UL listed, CE marked, and RoHs compliant. They offer a 1-year warranty and start at $308.00 (FLG-A46-0280).

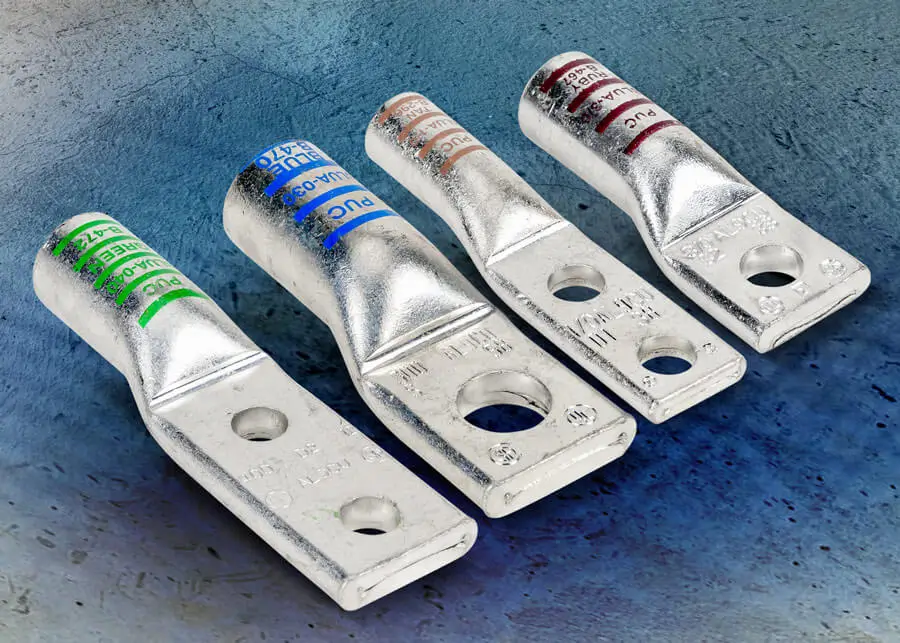

New Penn-Union compression lugs provide a secure method of terminating electrical cables, especially high power or large diameter cables, to electrical equipment. Unlike mechanical lugs, that are screwed/clamped in place, these connectors are crimped onto the cable using the appropriate crimping tool for a permanent installation. These connectors are rated for use with copper conductors, have a beveled entry for easy cable insertion, and have color-coded barrels that are marked with die index numbers making inspections and certified installations much simpler. Penn-Union compression connectors are certified to be installed using commonly found tools and do so without loss of agency certification.

Also included are Penn-Union compression lug tools that feature a small head designed for use in confined spaces. The unique telescopic handle design (TDM) provides increased leverage when needed and the tools support 8 AWG up to 500 MCM wire/cable.

The new Penn-Union compression lugs offer quick and easy cable/wire installation and start at $1.50 (BLU-8S14-1). The Penn-Union compression lug tools start at $361.25 (TDM-250).

Four new series of Lika Electronic encoders are available, with unique features or applications. Linear measuring wheel encoders are also available.

A41 series models are compact (41mm diameter body) medium duty encoders with hollow or solid shafts. Resolutions from 100 to 3600 PPR are available.

A50 series units are medium duty encoders designed to withstand high temperature environments up to 100 C (212F) with � inch or 3/8 inch hollow shafts, in resolutions from 360 up to 2048PPR.

A80 series medium duty encoders are designed to fit large AC motors, with a 30mm hollow shaft and 1024 PPR resolution. A selection of reducer bushings is available to accommodate metric or SAE shafts.

AQ5x series medium duty encoders have programmable resolution from 1 to 16,384 PPR. These encoders have a 58 mm or 59 mm body diameter and either a 3/8 inch solid shaft or a 15mm hollow shaft; reducer bushings are available.

All Lika Electronic encoders operate at 5-30VDC and have universal output circuitry which provides push-pull (HTL/totem pole), NPN/PNP open collector (HTL), or line driver (TTL) output signals. A selection of M12 and M23 cables are available for connectorized encoders.

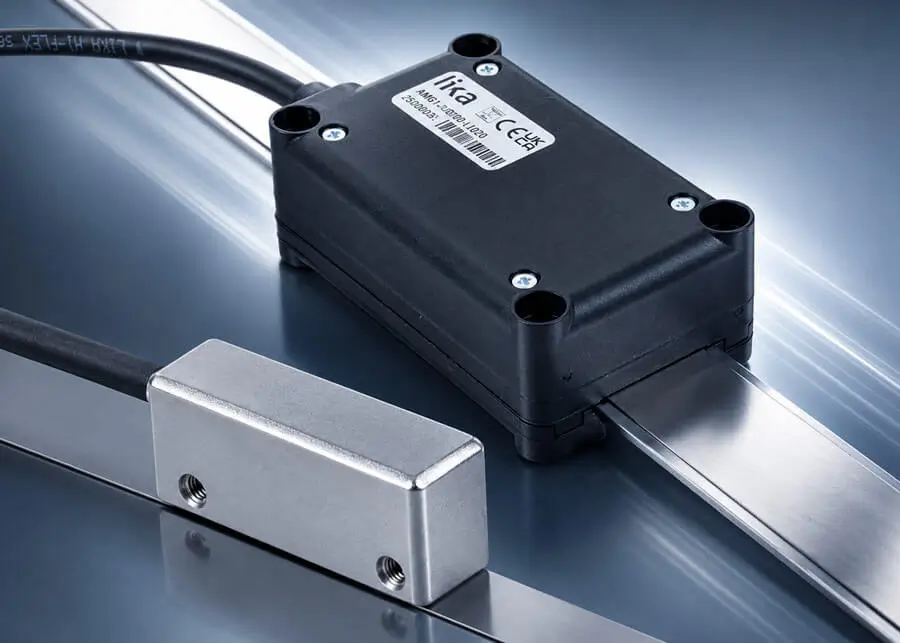

AR01 series encoder linear measuring systems are designed to ride directly on a product or a conveyer belt to measure length, distance, or provide speed control feedback. They are often used for cut-to-length and positioning applications.

New Lika rotary encoders start at $92.00 (A41S-0200-HZCP6-AL2). The encoder linear measuring systems are priced at $299.00 (AR01-0250-HM12-A). A complete line of accessories (cables, bushings, couplings and replacement parts) is also available.

Endress+Hauser Soliphant vibration rod level switches detect fine- or coarse-grained, non-fluidized bulk solids in silos, hoppers, and bins. They can even detect solids underwater, such as sediment buildup in a tank. These robust switches are insensitive to build-up, providing maintenance-free operation and easy setup with no calibration required.

They feature rugged plastic or aluminum housings, 316L stainless steel sensing elements, and come with solid state or relay outputs. Select models offer hazardous location ratings. These cost-effective sensors have a wide range of applications and can be installed in any orientation to indicate full, demand, or empty status.

The new Endress+Hauser Soliphant vibration rod level switches are UL Listed, CSA general purpose or FM hazardous location approved (certain models), CE marked, and RoHS compliant. They offer a 1-year warranty and start at $673.00 (FTM20-AM23A).

Captron capacitive pushbuttons utilize touch control and are activated without pressure when a hand or body part nears the device's surface. They feature a robust IP69K design, wear-free operation, resistance to water, oil, and harsh environments, and are available in various mounting/operator sizes.

Caneo Series10 additions include more standard and stainless-steel hygienic models with static or dynamic switch types and blank, power symbol, or RESET legends. They are available in automatic or semi-automatic LED control modes and provide a convenient 7.87in. (200mm) pigtail connection for quick installation.

New Caneo Series41 solid display capacitive switches combine a flange-mount capacitive switch with a sturdy aluminum terminal base that can withstand the harshest of environments. These switches feature an ergonomic design for ease of use and a robust construction for long-lasting, reliable performance. They combine status, control signal, and 7-segment display into one compact device.

New Caneo Series40 puck-style standard and display type capacitive switches offer the same reliable performance as the Series41 in a compact, encapsulated polycarbonate housing. Their standard 22mm mounting provides a low-cost solution to quickly and easily retrofit and modernize aging installations.

The new Captron Caneo series capacitive pushbuttons start at $59.00 , are CSA approved, CE marked, RoHS compliant, and come with a 5-year warranty.

Advantech Modbus gateways allow connections of multiple serial devices to an industrial Ethernet network for centralized machine communication management. Advantech Modbus gateways provide easy integration of Modbus TCP and Modbus RTU/ASCII networks and offer two 10/100 Mbps Ethernet ports for LAN redundancy. These gateways allow quick setup and easy troubleshooting with a simple-to-use web interface and provide up to four software selectable RS-232/422/485 ports. Configurations allow up to 16 peer connections under Modbus Client mode and up to 32 peer connections under Modbus Server mode on each serial port.

Also added is the ZIPLink ZL-CMA9 9-position terminal block to 9-pin D-sub female port adapter communication module. This adapter provides fast and convenient screw terminal connections for D-sub ports on Advantech Modbus gateways or any other compatible device.

The Advantech Modbus gateways start at $278.00 (EKI-1221-CE). The ZIPLink ZL-CMA9 adapter is $24.00 (ZL-CMA9).

Teknokol Eco series HMI enclosures and suspension arm systems are designed to work together to provide customized arm systems using a selection of their components and cut-to-length arm profiles to best fit specific applications. The medium-duty TK060 series suspension arm system is designed for lighter loads and includes component options that allow custom configurations. The TK120 series offers the same design flexibility but is a heavy-duty option for heavier enclosures. Accessories that fit these specific enclosures have been added including various handle options that can be mounted on the sides or bottom of the enclosure and removable front plates.

Teknokol HMI enclosures start at $349.00 (ECO1500.0008), suspension arm system components start at $27.00 (TK120.310), and accessories start at $26.00 (ECO.HAND.401).

The new Murrelektronik Premium EtherCAT IO-Link master module adds more communication options to our IO-Link product lineup. IO-Link masters provide standardized, point-to-point connections between smart devices and controllers. The new Murrelektronik master module adds EtherCAT capability to our IO-Link offering which also includes options for MQTT, OPC UA, and EtherNet/IP. Typical IO-Link systems consist of one IO-Link master (the interface between IO-Link and higher-level systems that also controls data traffic between the connected IO-Link devices) and at least one IO-Link device. Murrelektronik IO-Link hubs allow several sensors and actuators to be easily connected to an IO-Link master via a standard sensor cable. These hubs transmit standard field I/O signals, and several new models have been added, including more discrete I/O modules and modules that support analog/temperature inputs.

The Murrelektonik Premium EtherCAT IO-Link master module is priced at $399.00 (54632), the new IO-Link hubs start at $215.00 (59712).

New high quality Helukabel unshielded "extra hard use" 600V SOOW and 300V SJOOW portable cord is now available. Portable cord (also called service cord) is a cable with multiple conductors used for electrical power connections that are not intended to be permanent. Applications for these cables often involve portable equipment such as power tools or temporary installations such as work site lighting. These cables have EPDM thermoset rubber conductor insulation material and a black CPE thermoset rubber jacket that provides excellent resistance to abrasion, hot surface contact, harsh conditions, and extreme temperatures.

Order Helukabel SOOW and SJOOW portable cord cut to length in 1-foot increments with a 20 ft. minimum, starting at $0.33 / ft. (H11131802-1).

AutomationDirect announces the addition of more high-performance ACCU-Torq motors from Nidec U.S. MOTORS. ACCU-Torq motors are inverter duty motors and are an excellent cost-effective solution for applications that require 100% torque down to zero speed. These motors are available in 230/460 VAC and are now offered in sizes up to 20 hp at 1800rpm and from � to 10 hp at 1200rpm. Additionally, models with a preinstalled encoder are available in sizes from � to 20 hp at 1800rpm. A separately purchased encoder retrofit kit, which includes an Avtron HS35A full-quadrature encoder, is also now available.

ACCU-Torq motors with a 143 frame or larger come with a 3-year warranty and start at $578.00 (UN1T3BC).

New Schneider Electric Easy TeSys series manual motor protectors, contactors, thermal overload relays, and accessories have been added to AutomationDirect's lineup of motor control products. Schneider Electric Easy TeSys series IEC manual motor protectors are compact, easy to use, and cover the functions of disconnect, controller, thermal overload relay, and branch circuit protection in a single device. They are pushbutton operated and available in ratings up to 32A. Easy TeSys series IEC magnetic contactors offer a compact design for easy installation, a 45mm frame width, and have a long life expectancy of up to one million electrical operations. They have a built-in N.O. auxiliary contact and are available in a variety of coil voltages, with ratings from 3 to 20 hp (38A) at 480 VAC. Schneider Electric Easy TeSys series IEC thermal overload relays offer an adjustable current range and are designed for direct connection to the Easy TeSys contactors. They protect against overloads, phase failures, Iong starting times, and are available in ratings up to 32A.

Schneider Electric motor controls have a 1-year warranty and are UL Listed, CSA approved, CE marked, and RoHS compliant. The Easy TeSys series IEC manual motor protectors start at $69.00 (GP2E01), contactors start at $29.50 (DPE09B7), and thermal overload relays start at $29.50 (DPER01).

New FTG enclosed style power distribution and terminal blocks provide a convenient central location to connect several wires and distribute power from a single source to multiple loads.

The enclosed power distribution blocks feature a modular design for easy multi-pole assembly and an IP20 finger-safe protection rating. They are offered in ampere ratings up to 380A, UL voltage ratings up to 1000 VAC/VDC, and a 100kA SCCR with proper fusing. These enclosed style blocks include many innovative refinements, such as selectable phase identification, color marking plates, simple and secure DIN mounting clips, an incoming cable safety slide, and connection clips for multi-pole applications.

The enclosed style terminal blocks feature an IP20 finger-safe construction and are available in ampere ratings up to 840A, voltage ratings up to 600 VAC, and a 10kA SCCR. They are suitable for aluminum or copper conductors for maximum safety and flexibility. DIN rail or surface mounting makes installation fast and easy.

In addition, new Gladiator cuttable busbars for GMCB/GMCBU series miniature circuit breakers and supplementary protectors are now available. These busbars feature an IP20 finger-safe protection rating, are rated up to 100A (200A with center feed), and can connect up to (57) 1-pole, (28) 2-pole, or (19) 3-pole breakers without auxiliary components.

The FTG enclosed style power distribution and terminal blocks are CE marked, RoHS compliant, and offer a 2-year warranty. The power distribution blocks are UL listed and start at $19.00 (38680C); the terminal blocks are UL recognized and start at $14.00 (38049AL); the new Gladiator busbars start at $20.50 (GMCBU-BB1P-12-100C).

New AchieVe FDM series 12mm tubular photoelectric sensors offer a rugged metal construction, high IP67 protection ratings, and sensing distances up to 4 meters. These photoelectric sensors feature selectable light-on/dark-on operation, a 10 to 30 VDC operating voltage range, potentiometer or teach-in button sensitivity adjustment, and a fast 1kHz switching frequency. Highly visible red LED models are offered with the polarized reflective sensing style, while infrared models are available in diffuse and through-beam styles.

The new AchieVe FDM series photoelectric sensors are UL Listed, CE and UKCA marked, and RoHS compliant. They offer a 3-year warranty and start at $35.00 (FDM3-0N-1A).

Bondhus hex and Torx tools are precision machined in the USA with a proprietary high-torque steel for reliable long-lasting service life. Hex-end L-key sets have chamfered tool tips to eliminate burrs and provide proper seat. Ball-end L-key sets insert at a 25� angle, allowing for superior torque transfer and natural wrist movement, ideal for hard-to-reach places. Torx L-key sets are designed for more torque and can be used on Torx and star screws. GorillaGrip fold-out hex and Torx sets are compact, color coded, easy to use, and include a speed-wrench feature. HEX-PRO^™ pivot head wrenches feature a head that pivots from 90� to 270� and eliminates constant removal and repositioning of the tool. ProHold� socket bit sets provide firm grip of the bits and seat firmly into sockets, providing stability and efficiency.

Bondhus hex and Torx tool sets start at $7.00 (BH12237).

AutomationDirect has added the powerful LS Electric XMC motion controller to provide full EtherCAT master motion control. With a blindingly fast processor (scan times as low as 5ns) and built-in support for 8 or 16 axes of EtherCAT-based motion control (depending on the model), the XMC controller can handle virtually any motion control application. These brick-style controllers feature 8 discrete inputs, 16 discrete outputs, 2 analog inputs, and 2 analog outputs. Utilize the new EtherCAT bus coupler with the diverse LS XGB PLC I/O modules to expand the XMC controller I/O capability.

The controllers also have two embedded quadrature encoder inputs to support full-closed-loop control. If further I/O expansion is required, the controllers support the addition of up to 32 racks of EtherCAT remote I/O (depending on the model).

The new EtherCAT bus coupler (XEL-BSSCT) supports LS Electric XGB I/O modules (already offered by AutomationDirect) with over 30 I/O modules available, including discrete, analog, relay, temperature, high-speed counter, and load cell models. With the XEL-BSSCT bus coupler, these economical EtherCAT I/O racks are compatible with any EtherCAT master controller.

XMC controllers utilize the powerful XG5000 software to configure and program all the control logic for advanced motion and basic PLC applications. XG5000 has a comprehensive set of motion function blocks (in ladder or structured text) to handle any application. These function blocks meet the standards of PLCopen to ensure interoperability, efficiency, and easier code development for motion applications.

The EtherCAT XMC motion controllers start at $779.00 (XMC-E08A). The EtherCAT bus coupler is $199.00 (XEL-BSSCT).

EtherCAT^® is a registered trademark and patented technology, licensed by Beckhoff Automation GmbH, Germany.

New Schmersal 250 series heavy-duty limit switches feature rugged cast iron housings for the harshest environments. The selection includes models with side rotary levers with metal or plastic rollers, metal belt alignment rollers, and high-temperature models with metal rollers. The belt alignment switches prevent costly equipment damage by providing warning, alarm, or auto-align signals when a conveyor belt drifts too far to one side and activates the switch.

The new Schmersal limit switches are UL listed, CE marked, and RoHS compliant. They offer a high IP65/66/67 protection rating and a 1-year warranty. Prices start at $490.00 (TD250-02Z).

New CITO StackFlow series modular process valves are a system of high-flow, robust components that can stack together to form a valve bank assembly. Each module includes common inlets at each end and an outlet discharge at the bottom. Manual and solenoid valves are available, as well as distribution blocks that can all be included in the same assembly. Port adapters are sold separately, allowing multiple threaded connection options to the inlet or outlet port. Flow control outlet port adapters allow fine-tuning fluid flow out of the discharge. End caps can be placed at one of the inlets and act as a blanking plate or include a temperature or pressure gauge. The new manifolds are rugged general-purpose models with 4 to 8 stations and come with a blue or red anodized finish. Also available are standalone check valves, flow indicators, and numerous modular process valve accessories. CITO products are proudly made in the USA, come with a standard 1-year warranty, and start at $29.00 (SP-1000-BR).

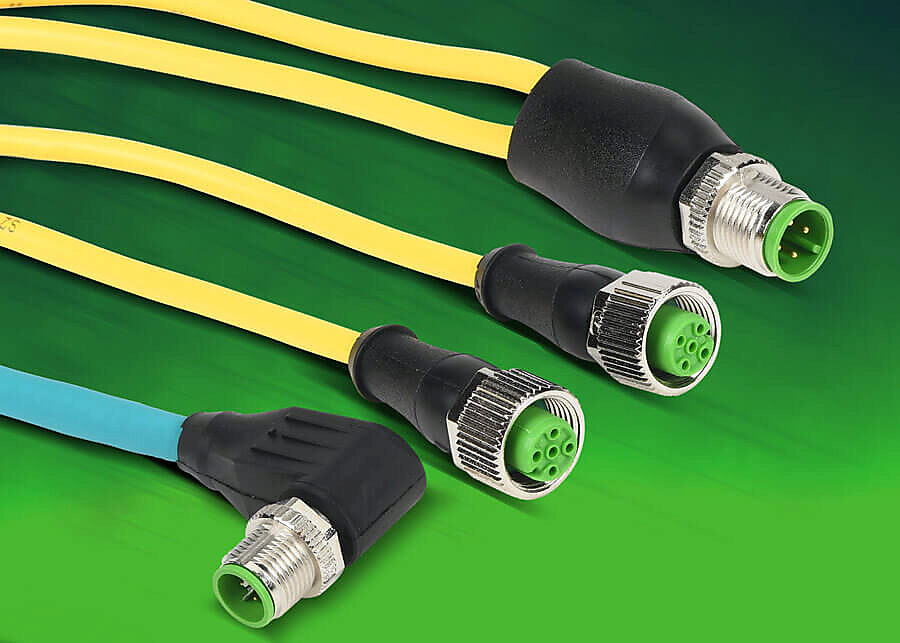

The new M12 field wireable connectors from Murrelektronik add additional cable size options to our current offering. New 5-pin A-coded connectors are available for 4-8mm/26-18 AWG cable sizes, in axial or 90� male or female connector styles. New D-coded connectors are available in 4-pin configurations for 4-8mm/26-18 AWG cable sizes, and in axial or 90� male connector styles. The L-coded connector additions are 5-pin, for 9-13mm/16-14 AWG cable sizes, and axial male or female connector options. The A-, and D-coded versions offer up to IP67 rating, and the L-coded versions are IP65 rated once properly installed. All new additions include push-lock clamp connections.

These Murrelektronik field wireable connector additions start at $16.00 (7000-13901-0000000).

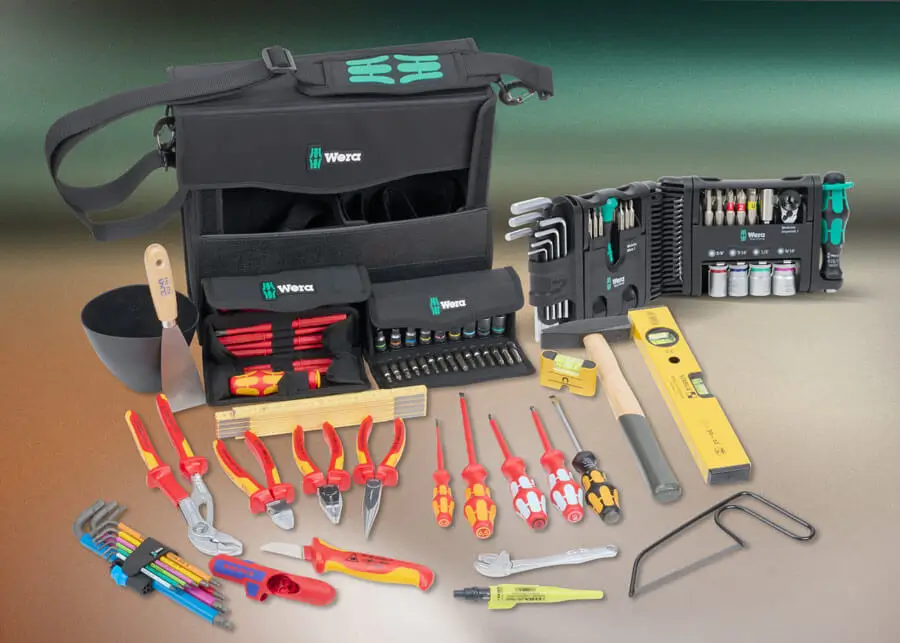

Many more top-of-the-line Wera tool options have been added to our continuously growing Tool and Test Equipment lineup. New tool sets include maintenance sets, a Joker self-setting/ self-adjusting wrench set, a Tool-Check PLUS socket/driver bit set, and Kraftform Kompakt multi-bit screwdriver sets. Screwdriver additions include Kraftform Micro precision screwdriver sets, Kraftform Kompakt multi-bit screwdriver sets and multi-bit handles. More torque screwdrivers including Kraftform Safe-Torque compact adjustable torque screwdrivers and an adjustable torque screwdriver with pistol handle. We've also added more options for Hex-Plus hex and torx L-key wrenches as well as a selection of Joker self-setting/self-adjusting ratcheting wrenches in various sizes.

The new Wera tool sets start at $42.00 (05051025001), multi-bit screwdrivers start at $22.00 (05051492001), torque screwdrivers start at $90.00 (05075815001), Hex-Plus L-keys start at $12.00 (05133180001), and Joker adjustable wrenches start at $38.00 (05020099001).

Endress+Hauser intrinsically safe analog input isolators provide cost-effective galvanic isolation for process instruments located in hazardous locations, ensuring only a safe amount of energy resides in a potentially explosive atmosphere.

Endress+Hauser RN22 0/4 to 20 mA input isolators are offered in 1- channel, 2-channel, or signal doubler options. They feature a 19.2 to 30 VDC operating voltage range, screw or push-in terminal options, and are HART transparent - passing bidirectional communication signals between HART compatible devices.

Endress+Hauser RN42 0/4 to 20 mA single-channel input isolators feature a wide 19.2 to 253 VAC/VDC operating voltage range, are HART transparent, and are offered with screw or push-in terminal options.

The new Endress+Hauser intrinsically safe analog input isolators are UL Listed, CSA approved, CE marked, and RoHS compliant. They offer a 1-year warranty and start at $231.00 (RN22-CB1A-LT).

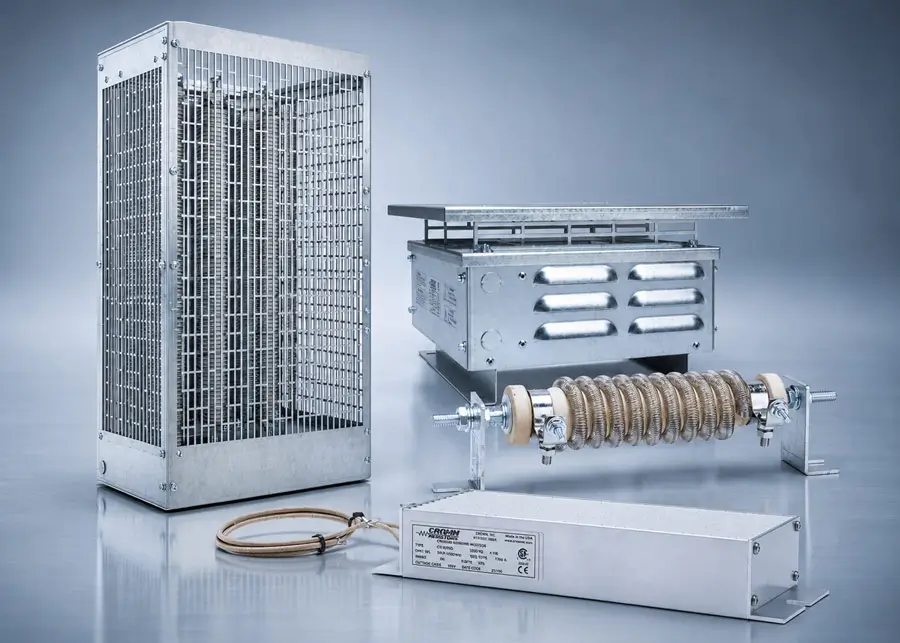

Crohm brand VFD brake resistors are now available, featuring NEMA 1 enclosures and installed thermal switches. These resistors are offered in many popular resistance values from 3.7 ohms to 400 ohms and power ratings from 240 W to 18 kW to ensure a good match per your manufacturer's recommendation. The NEMA 1 enclosures protect users from injury and the resistor from accidental damage. The included thermal switch can be wired directly into the drive control circuit to protect from overheating. Take advantage of a NEMA 1 enclosures by mounting them outside of the control panel, saving valuable space. Crohm brake resistors start at $156.00 (BR-N1-240W150) and come with a standard 1-year warranty.

New LUTZE ELECTRONIC shielded or unshielded flexible control and signal cable is an industrial grade multi-conductor cable ideal for use in machines and machine tools, plant cabling, HVAC technology, assembly/production lines, process instrumentation, and for industrial controls. These cables are 300V rated and are third party evaluated by ECOLAB for resistance to cleaning agents and chemicals commonly used in food and beverage washdown procedures. The polyvinyl chloride (PVC) jacket is oil and sunlight resistant, and this cable is Power Limited Tray Cable UL PLTC rated for use with cable tray applications, and also AWM rated for use in appliance wiring.

Order LUTZE ELECTRONIC cable cut to length in 1-foot increments with a 20 ft. minimum, starting at $0.79 / ft. (A3032203-1).

RHINO PSE-S series power supplies are fully encapsulated in ultra-compact, low-profile housings and are ideal for space-limited applications. These cost-effective power supplies offer a wide input voltage range, up to 89% efficiency, and are available in 5, 12, 15, and 24 VDC output voltage options with up to 4.1A/50W.

The RHINO PSE-S series encapsulated power supplies offer easy chassis or DIN rail mounting using an optional DIN rail mounting kit (purchase separately). They are suitable for industrial, household, and building technology applications and are UL Recognized, CE and UKCA marked, and RoHS compliant. They offer a 3-year warranty and start at $21.50 (PSE24-110-S)

A variety of new Metrol limit switches have been added to our growing lineup of precision limit switches. These ultra-precise mechanical limit switches have a repeatability down to 0.5 microns (�m) and are some of the smallest switches/sensors available. Their tiny size allows them to be mounted in extremely tight locations. The additional offering includes precision touch limit switches with a 1 micron repeat accuracy, 90-degree straight touch limit switches with a 6mm smooth barrel, mini stopper precision limit switches in 8, 10, and 13mm flat head styles, and high precision tool setter limit switches with threaded M4 mounting holes or downward installation options. Non-LED limit switch models are also available for a reduced price.

The new Metrol precision limit switches offer a 1-year warranty and start at $36.00 (STM11A)

New ProSense FSC series mechatronic digital flow sensors monitor liquid media and provide flow sensing up to 50 GPM and temperature measurement up to 212^°F. They feature a stainless steel construction, are available with 3/4", 1", or 1-1/2" FNPT process connections, and provide two analog, frequency, or switch outputs based on flow or temperature. A pushbutton interface offers a quick and easy setup, while a bright two-color digital display prominently displays process variable data.

The new ProSense mechatronic digital flow sensors are UL Listed, CE marked, and RoHS compliant. They feature a high IP65/67 protection rating, offer a 2-year warranty, and start at $260.00 (FSC75-00-42-6H)

ProSense offers a new line of thermistor temperature sensors in a wide range of probe and installation styles. The 10K3 series sensors offer hex nipple probes, attached plug probes, lead wire transition probes, flange mount probes, bolt-on ring probes, cuttable probes, new bead and junction box probe styles, and more. They provide high accuracy and fast response times at a low cost. Also, new wall-mount ambient temperature sensors have been added to the existing line of RTD and thermocouple room sensors.

The new thermistor temperature sensors are NTC 10k Type 3, with a negative temperature coefficient and a nominal resistance of 10,000 ohms at 25 ^°C. They are compatible with many control devices including the AutomationDirect BRX and Productivity PLC platforms, which offer thermistor input modules that support this curve type.

The new ProSense temperature sensors are made in the USA, offer a 1-year warranty, and start at $23.50 (NTC10K3-BR01L06-01)

Master Appliance heat guns are quality heating tools used extensively across various industries for tasks such as shrinking tubing, activating adhesives, bending plastics, thawing frozen pipes, circuit board manufacturing, and so much more. These heat guns deliver high temperatures quickly and efficiently and include various models to fit your application. D-series fixed-temperature heat guns are heavy-duty industrial tools that provide up to a 1200�F heat source with a high 27 CFM and 3400 FPM airflow. Varitemp^� heat guns include an adjustable 130�F to 1200�F temperature dial and provide a high 27 CFM and 3400 FPM airflow. The Master-Mite heat gun is a 650�F continuous-duty bench-top heating system with a quiet motor that performs tasks without excess air flow. The EC-Mini heat gun is a professional grade 640�F heat tool with a small footprint that is lightweight, portable, and a versatile heat source for many tasks and projects. Master-Mite and EC-Mini models include a height- adjustable stand for hands-free use.

Master Appliance D-Series heatguns start at $180.00 (HG-301D), Varitemp heat guns start at $240.00 (VT-751D), Master-Mite heat gun is priced at $140.00 (MA10008), and EC-mini heat gun is priced at $26.00 (EC-MINI).

AutomationDirect announces the addition of more options for the ReeR MOSAIC safety controller family. The MOSAIC-M1S-USBC has all the features and capabilities of the enhanced MOSAIC M1S master controller module but offers a USB-C programming port. The ReeR MOSAIC MZERO controllers are simple standalone safety controllers that have plenty of fixed I/O but do not support expansion I/O. Also available is a proprietary memory card for use with these controllers. All ReeR safety controllers come with a standard 1-year warranty and start at $463.00 (MOSAIC-M1S-USBC).

AutomationDirect has added more 1- and 2-channel E-stop relays, light curtain control relays, motor standstill monitoring relays, and combination speed/standstill monitoring relays from Dold. These additions offer more wire termination options feauring push-in cage clamps and the new combination speed/standstill monitoring relays provide a more versatile motor monitoring solution. All Dold safety relay modules come with a standard 1-year warranty and the new safety relay modules start at $136.00 (LG5924-02PC-61-24).

The Flowline LR80 EchoBeam^® FMCW (Frequency Modulated Continuous Wave) radar level transmitter features Flowline's 80 GHz radar technology, which is unaffected by most media, processes, or environmental factors. Using the change in frequency between the transmitted and reflected signals, the EchoBeam level sensor can measure liquids up to 32.8' (10m) or bulk solids up to 16.4' (5m) and provides a 4-20 mA output signal. Its rugged PVDF thermoplastic housing offers a high IP68 protection rating, making it ideal for applications such as tanks, sumps, canals, reservoirs, or transfer stations.

The wireless LevelTap^™ app connects over Bluetooth for easy configuration and quick access to level information, statuses, and settings from the safety of the ground or a nearby catwalk.

The Flowline Echobeam LR80 FMCW radar level sensor is CSA approved, FCC approved, and CE marked. It has a 2-year warranty and is priced at $795.00 (LR80-0000)

Newly added Endress+Hauser Cerabar PMP23 series hygienic pressure transmitters feature a compact stainless steel housing, a fully welded 1-1/2" sanitary tri-clamp process connection, and are approved for Food and Beverage applications. Select models offer IO-Link compatibility for easy setup, integration, and on-the-fly configuration changes.

Cerabar hygienic transmitters are available in measuring ranges up to 600 psig with a 4-20mA output and are suitable for gas, liquid, and vapor applications as well as CIP/SIP (Clean in Place/Sterilize or Steam in Place) cleaning.

The new Endress+Hauser Cerabar PMP23 series hygienic pressure transmitters are CSA and 3-A approved, CE marked, and have a high IP65/67 or IP66/69 protection rating (depending on model). They offer a 1-year warranty and start at $469.00 (PMP23-CA1M1FF3CJ).

Penn Union power distribution blocks feature a modular design that allows easy assembly into multi-pole block configurations. Penn Union blocks offer a rugged aluminum construction, dual ratings for aluminum and copper conductors, and are suitable for DIN rail or panel mounting.

With amperage ratings up to 760A and voltage ratings up to 600 VAC/VDC, Penn Union APDB series open-style power distribution blocks provide a convenient central location to connect several wires and distribute power from a single source to various loads, while the ASRB series modular splicer/reducer blocks allow for in-line splices or conductor size reduction.

Penn Union power distribution blocks offer a 1-year warranty and are UL listed. The APDB series open-style distribution blocks start at $18.50 (APDB-14-2/0-1) ; ASRB series splicer/reducer blocks start at $17.00 (ASRB-11-2/0-1).

New Gladiator GR series DIN rail or panel mounted quad-port power receptacles provide convenient outlets used in electrical enclosures to temporarily power laptop computers and test equipment. The GR-REC4 consists of two NEMA 5-15R duplex receptacles, while the GR-REC4-GFCI includes one standard NEMA 5-15R duplex receptacle and one GFCI duplex receptacle that provides protection for all four circuits.

The new Gladiator receptacles are UL recognized, and RoHS compliant. They offer a 2-year warranty and start at $48.00 (GR-REC4)

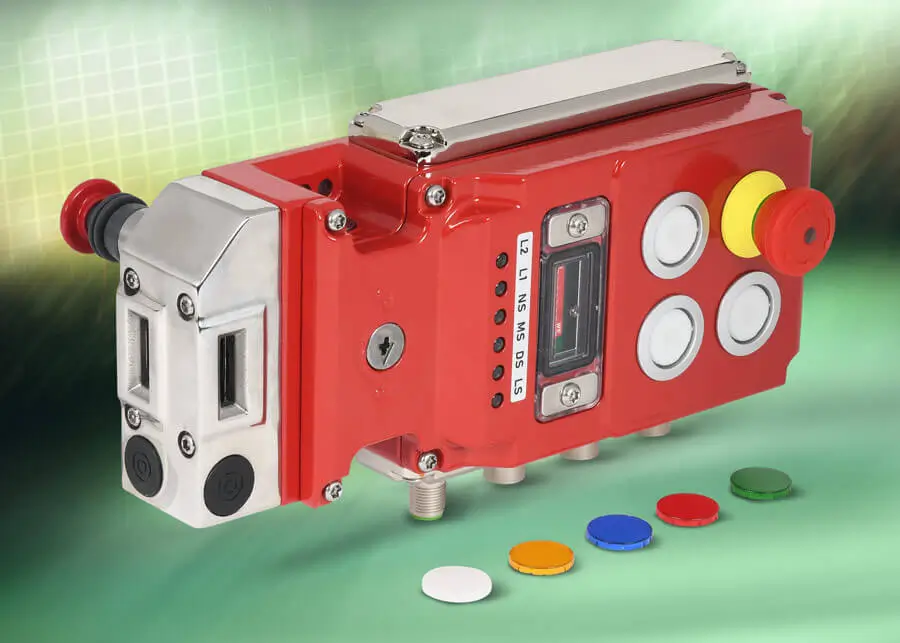

Newly added IDEM universal gate boxes are designed to be installed on machine guard doors and act as an integrated locking guard with a double tamper-resistant interlock mechanism. These boxes provide high-level RFID-coded interlocking and machine control in one unit. Capable of holding guards closed with up to 3,000N holding force, these boxes can be used in conjunction with delay timers for added safety. Models are available that support 2 or 4 pilot devices and rear-release versions prevent personnel from being trapped in a guarded area. Accessories to aid with installation include mounting plates, rear escape handles, pushbuttons, and indicators. The new IDEM universal gate boxes start at $466.00 (UGB2-525001) and come with a standard 1-year warranty.

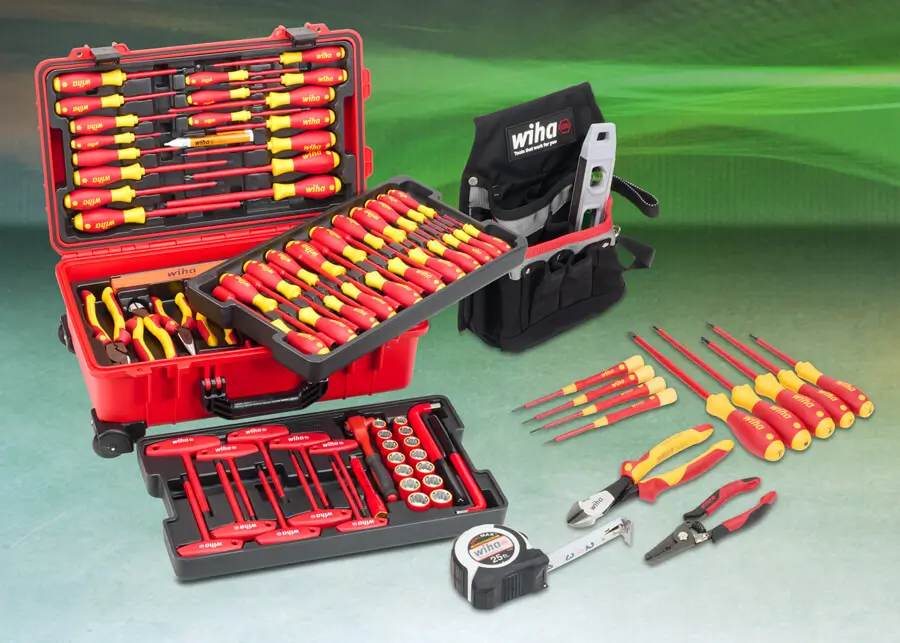

A wide assortment of additional world-renowned Wiha tools has been added to our ever-expanding Tool and Test Equipment lineup, including various types of standard, insulated, electric, and precision screwdrivers, multi-bit drivers, nutdrivers, standard and insulated t-handle hex keys, wing and flag handle torx keys, tool pouches, tool bags, and tool backpacks, many tool set choices, and much more. Wiha tools are built with top-quality materials, ergonomically designed, and engineered with safety and durability in mind to ensure long-lasting, reliable, and safe operation.

The new Wiha screwdrivers start at $3.75 (WT26335), multi-bit drivers start at $14.00 (WT28103), tool storage options start at $14.25 (WT91473), and tool sets start at $20.00 (WT26194).

AchieVe WDW and WDN series wire ducts provide easy wire management at great prices. These rugged, wide and narrow finger wall, rigid wire ducts are made of self-extinguishing UL 94 V-0 rated flame-retardant PVC material. AchieVe wire ducts feature convenient upper and lower score lines to facilitate breaking off individual fingers when extra space is needed for wider cables. AchieVe WDW and WDN series wire ducts are now available in gray or white, are sold in 6.56 ft. (2m) sections with up to a 6-inch width (cover included), and start at $12.00 (WDN-1015G-1).

New general-purpose AC drives have been added to the IronHorse brand. These new VFDs support three control modes, including V/Hz, slip compensation, and sensorless vector, and come in various voltage and horsepower ratings at a very affordable price. The 230 VAC models can support AC motors up to 20hp with 230 VAC three-phase power and up to 10hp with 230 VAC single-phase power. The 460 VAC models support motor sizes up to 30hp with 460 VAC three-phase power and up to 15hp with 460 VAC single-phase power. These drives include ample built-in I/O and embedded Modbus RTU support, dynamic braking, torque limit capability, NEMA 1 conduit boxes, zero-stack installation, and a robust construction that meets military standards. Ethernet communication is supported with an optional card that allows the drive to be controlled and monitored over Modbus TCP or EtherNet/IP. VFD Suite is a free, user-friendly software package that allows configuration of the ACG drive and other advanced features, such as trending. IronHorse ACG drives start at $164.00 (ACG-20P5) and all ACG drives and accessories come with a 2-year warranty.

New BLOCK PM series mini power supplies feature a compact form factor, excellent transient voltage protection, and an affordable price. They are robust and adaptable for a range of applications, offering performance and reliability without the higher cost of full-featured power supplies.

The new BLOCK PM-0624-100-0 redundancy module prevents costly downtime by monitoring two matched BLOCK power supplies and switching to a backup when a failure occurs. The module also decouples the power supply outputs to prevent one supply from overloading the other.

BLOCK PM series power supplies offer 24 to 96W models with 12 or 24 VDC adjustable outputs and start at $49.50 (PM-0124-010-0) ; the BLOCK PM redundancy module accepts power supply inputs up to 144W and is priced at $98.00 (PM-0624-100-0).

AutomationDirect now offers a wide array of vinyl electrical tapes and insulating mastic and splicing tapes from Plymouth Rubber^�. Vinyl electrical tape is a high quality, all-weather tape that easily applies to surfaces and withstands a wide range of temperatures. These tapes include versions that can be used as protective outer jackets over splices, general insulation applications, and applications where elasticity, aggressive adhesion, and resistance to flames are required.

Insulating mastic and splicing tapes offer excellent adhesion and sealing for metals, rubbers, and synthetic cable insulations/jackets. These tapes are available in various types that can be used for applications requiring excellent stretch and conformability to complex shapes, protection for high temperature connections, high dielectric strength, waterproofing, insulation of overhead and direct buried electrical connections, and more.

Most versions are rated for up to 600V, with select versions rated for up to 69kV. Vinyl electrical tapes start at $4.75 / roll (PR-4454-1) , and insulating mastic and splicing tapes start at $7.25 / roll (PR-2006-1).

The new STRIDE SE3 series PoE++ Ethernet switch provides both power and Ethernet communication to connected devices, allowing even more savings in your network design. This switch will auto-detect the presence of a PoE enabled device and provide up to 240W of DC power along with Fast or Gigabit Ethernet communication speeds to the powered device.

STRIDE SE3 Ethernet media converters provide copper-to-fiber and fiber-to-copper conversions. Converting from copper to fiber allows for faster data transmission, less noise interference, and extended ranges. Multi-mode SC 100FX, ST 100FX, or Gigabit SFP fiber optic connections available. SE3 media converters also feature 10/100Base-T or 10/100/1000Base-T RJ45 connections and Link Fault Pass (LFP) technology which will detect a loss of connection and halt any transmissions to make the system aware of the issue.

STRIDE PoE++ injectors provide a convenient way to add power to an Ethernet network where needed, convenient for adding PoE enabled devices, including web cameras and Wi-Fi access points, to an existing standard Ethernet network. PoE injectors provide greater flexibility with network design as the connected devices can be installed in locations without power readily available. STRIDE PoE++ injectors supply up to 100W of power and utilize Gigabit transmission speeds.

A new Small Form Factor Pluggable (SFP) transceiver has also been added to the lineup. This model features a Cat6A RJ45 Gigabit copper connection to easily add an additional copper connection to select STRIDE Ethernet switches and converters.

The STRIDE PoE++ Ethernet switch is priced at $579.00 (SE3-SWP2B5UG-1P-T) , media converters start at $141.00 (SE3-MC2U-C1-T) , PoE++ injectors start at $259.00 (SE3-IJ2B2UG-T) and the new copper SFP is priced at $69.00 (SFP-1GC-T).

New WERMA eSIGN series LED signal towers have the same advanced features as the original series but provide a white polycarbonate housing that offers a crisp, clean look. These signal towers are available in 9- and 15-tier models, with select models offering IO-Link v1.1 compatibility. They offer a variety of customizable operating modes, lighting effects, and audible alarm options and can be base, wall, or tube-mounted (mounting accessories sold separately).

White WERMA eSIGN signal towers are UL listed, CE and UKCA marked, and RoHS compliant. They offer a 1-year warranty and start at $407.00 (65720055).

New SureMotion lighter-duty carriages and guides are available for linear motion applications. Carriage and guide systems are machine elements that move objects in a straight line with minimal friction or resistance. They are offered in two varieties: external carriages with wheels that ride outside the guide tracks, and internal carriages with wheels that ride inside the guide tracks.

These linear carriage and guide products use V-shaped wheels to resist debris in dirty, dusty processes. Ball bearings are sealed inside the hub of the V-wheel. Six sizes are available with load ratings up to 4,700N (1,057lbf). The LU series does not require rail lubrication (perfect for clean room applications), while the LV series uses wheel covers to provide constant rail lubrication. Guide rails are available in lengths from 266mm to 1,520mm (10.5in to 59.8in) and can be positioned end-to-end for longer runs.

Carriages start at $127.00 (LUV-0-3W) with the guide tracks starting at $22.00 (LUV-0-480) and both come with a 1-year warranty.

Murrplastik MP18 series cable / hose drag chains are built from rugged polyamide (PA) and are available in various sizes with support for cables up to 15mm diameter. Drag chains are used to route cables / hoses to moving components while keeping them organized and protected. They help extend cable and hose life, provide protection for personnel, and reduce equipment downtime and repair costs. The hinge and latch design allows quick and easy access for new or existing installations without requiring cable / connector disassembly. In addition, they can easily adapt to various installation configurations, including parallel, overlap, circular, and many more, and have end brackets that provide secure mounting points. Also available are accessories that provide additional support and complement drag chain operations.

Murrplastik MP18 drag chains start at $38.00 (CDC-0.7X0.7R1.1T) and drag chain accessories start at $7.00 (CDC-TR-14.18).

Three new LS Electric XGB PLC models have been released providing advanced control at an even lower cost. Two 16-point 2-axis motion PLC units and a 14-point relay output model are now available. The 2-axis PLC versions support pulse/direction control from the embedded I/O, featuring 4 high-speed inputs and 2 high-speed outputs, as well as EtherCAT motion using EtherCAT expansion modules.

The new relay output PLC provides 8 inputs, 4 of which offer high-speed capability, and 6 relay outputs supporting up to 2A per point. This PLC version can also support EtherCAT motion using the optional EtherCAT expansion modules.

The XG5000 programming software is a FREE download and features four of the five languages included in the IEC 61131 standard for industrial controllers. Ladder diagram, instruction list, sequential function chart, and structured text are all included so programmers can use the method they prefer. This software supports the typical PLC instructions, but also features a variety of specialized and state-of-the-art instructions available to use in your code development.

The motion-centric XG-PM software is provided free of charge in the same download as the XG5000 programming software. This software provides axis configuration, diagnostics, and manual movements. If using the position table, up to 400 moves and various interpolation movements per axis may be configured. Axes may also be controlled straight from the XG5000 program if the position table is not needed.

The new LS Electric PLC models are offered at a lower cost compared to existing models, with the relay output version priced at only $279.00 (XEM-DR14H2) and the new 2-axis models priced at $289.00 (XEM-DN16H2). All three come with the required terminal blocks so there is no need to purchase an additional breakout terminal board resulting in even more savings. The new LS Electric PLCs also come with free technical support, a 45-day money-back guarantee, and a 2-year warranty.

A variety of new NITRA push-to-connect fittings is available featuring durable nickel-plated brass bodies, threads, and release sleeves. These fittings have a maximum pressure rating of 300 psi and can withstand temperatures up to 175^°F. Numerous fitting styles have been added, including male straight fittings, male elbows, branch tees, union straight fittings, union straight reducers, union elbows, union tees, union Y fittings, plug-in reducers, and elbow flow control valves. The new fittings support tubing in sizes from 4 to 12mm and 5/32 to 1/2 inch. Thread styles and sizes supported are #10-32 through 1/2 inch NPT, 1/8 through 1/2 inch R-thread, and G-thread. NITRA nickel-plated brass push-to-connect fitting additions start at $7.50 (MS532-18N-B) and come with a standard 1-year warranty.

Metallic, printable ribbon, and craft paper tape labels have been added to our selection of Epson LabelWorks PX series label printer cartridges. Epson LabelWorks label printers provide industrial-grade labeling solutions for a wide variety of applications.

Metallic labels are great for barcode labels and asset identification applications. They provide a nameplate-like quality with a sleek metallic finish, offering the perfect touch for personal and professional labeling projects.

Printable ribbon is ideal for creating personalized, custom ribbons for cable flags and tool identification. Use with the Epson Label Editor Software or Label Editor Mobile App for a wide variety of fonts and industry-standard images and designs.

Craft paper tape uses textured and uncoated paper material which is excellent for creating custom packaging and small business labels. These authentic-looking labels feature a matte finish and black ink for a classic look.

Metallic and craft paper tape label cartridges are priced at $14.75 (218BMETSPX/212CPBBEPX) while printable ribbon label cartridges are priced at $9.75 (212RBGPX).

Newly added AchieVe LPPT series pressure transmitters offer great value for general industrial applications. These pressure sensors feature a rugged, compact stainless steel construction, are ideal for space limited applications, and are extremely affordable. AchieVe pressure transmitters offer a male 1/4" NPT process connection, measuring ranges up to 5000 psig, and a 4-20 mA analog output.

The new AchieVe LPPT series pressure transmitters are UL recognized, CE marked, and have a high IP67 environmental protection rating. They offer a 3-year warranty and are priced at only $79.00 (LPPT25-20-0015H).

The Ergoswiss SQ series table lifting systems use electrically-driven columns that allow the operator to reposition the height of the worktable, conveyor, etc. to meet their specific requirements. In doing so, the operator can perform their tasks in a more comfortable working posture, helping to reduce work-related injuries. These systems are all electric (no hydraulic mess or manual hand cranks) and each lifting column features an enclosed motor and screw drive to perform the needed height adjustments. Simply raise or lower equipment with simple pushbutton controls and save the preferred position in the controller using the 3 memory settings.

Up to 4 lifting columns can be connected to one control box for up to a 1320lb weight capacity or sync two control boxes and control up to 8 lifting columns. Lifting columns offer stroke lengths of 300mm [11.8"] or 400mm [15.7"] and are sold individually or in convenient kits with everything needed to install a complete lifting system. Ergoswiss lifting systems work well with SureFrame 15 series and 40 series T-slotted rails and include a tilt sensor for added safety that will stop operation if a tilt of more than 2.5 degrees is detected.

The new Ergoswiss lifting system kits start at $1,955.00 (907.42236-PP000001) or purchase components separately, starting at $20.00 (124.00145-PP000001). All lifting system components and kits come with a 45-day money back guarantee and a 1-year warranty.

RJ45 shielded IDC field wireable connectors and adapters from LUTZE have been added to our Wiring Solutions lineup. The RJ45 IDC shielded field wireable connectors with 8-pole configuration provide quick and easy Cat6a connections to non-terminated cables allowing custom built connections to fit your application. The RJ45 to RJ45 8-pole bulkhead adapters can be installed in a control panel cutout to allow easy pass-through for Cat5e or Cat6a connections and include a protective cap to protect the outer connector when not in use. New DIN rail mounted holder modules for RJ45 Cat6a shielded IDC field wireable connectors provide connectivity between the field and the control panel. This holder simplifies the wiring process in just a few simple steps and does not require any tools. The modules' side covers can be removed, allowing several modules to be installed side by side on a DIN rail, which is ideal for tight-spaced installations.

Field wireable connectors start at $35.00 (490174), bulkhead adapters start at $38.00 (492075), and the DIN rail mounted holder modules are priced at $28.00 (490209/490238).

Hammond wireways are designed to house electrical cables and wires, keep them organized, and protect them from environmental contaminants or physical damage. The new CW series carbon steel lay-in wireways are available with a NEMA 1 rating featuring a removable screw cover with keyhole slots and are offered with or without knockouts.

New 1487 series pull-through wireways are available with a NEMA 12 rated carbon steel version. Unlike the lay-in type, pull-through wireways do not open and require cables/wires to be pulled for installation. However, they do provide optimum protection for electrical wiring/cabling runs and are ideal for connections between machines and control panels.

In addition to these wireways, many wireway fittings and accessories for each specific series have been added to help complete installations quickly and efficiently, and to ensure the best possible layout.

Lay-in wireways start at $18.50 (CWSC412), and pull-through wireways start at $111.00 (1487B12).

M.G.M. Electric IEC standard motors and brake motors are manufactured using state-of-the-art, high-quality processes and are rated for general-purpose and inverter duty. IEC motors provide the same power output as NEMA motors but have a smaller footprint and feature a lightweight aluminum construction. IEC standard motors are offered with outputs rated up to 5hp at 1800rpm up to 1hp at 3600rpm. M.G.M. brake motors are available with outputs rated up to 5hp at 1800rpm and feature brakes that are direct 3-phase AC coils (no DC rectifier required). This results in faster response time, higher holding torque, and better cooling. All brake motors have a manual release that can be activated using a tool, which is sold separately. Replacement brakes are also available. M.G.M. IEC and brake motors are extremely cost-effective, starting at only $144.00 (0NX5 ) and all motors come with an 18-month warranty.

Our new addition of Saginaw Enviro-Therm^® air-to-air heat exchangers use the enclosure's ambient air to transfer heat through a core of folded aluminum sheet metal and forced convection. Since the ambient air is the cooling medium, the need for refrigerant is eliminated. Features include corrosion resistant internal components, a filter-less design for max cooling and reduced clogging, simple installation using included threaded mounting studs, a digital programmable controller, and many other great features.

These exchangers are cULus Recognized Type 3R and 12, and start at $1,119.00 (SCE-HE04W120V).

New NextGen series enclosures include modular enclosure bays that can be bolted together to assemble a full freestanding enclosure with as many bays and doors to fit your specific application. Left and right bays with one side open and a center bay with both sides open are available. New freestanding disconnect enclosures protect electrical components and personnel from shock hazards. Saginaw NextGen enclosures are available in carbon steel or stainless steel, in various NEMA ratings, and in various sizes. Enclosure components and accessories include side exterior panels to cover modular bay open ends, filler plates, subpanels, interlocks, defeaters, DIN rails, gaskets, and a baying kit.

Also added are modular disconnect enclosure bays that are right side bays with one side open for bolting onto a modular freestanding enclosure in order to add a disconnect to the system.

NextGen series modular enclosure bays start at $1,990.00 (SCE-N68C4018) , disconnect enclosures start at $1,754.00 (SCE-N68XM2818) , modular disconnect enclosure bays start at $1,896.00 (SCE-N68RX3418) , and components and accessories start at $6.75 (SCE-129751).

LS Electric PHOX servo systems operate with 24-80 VDC input power and accept a wide variety of control inputs. These flexible systems are suitable for both single-axis use and for advanced multi-axis motion control systems.

With output power from 100W to 300W, these four matched sets of servo motors, drives, cables and accessories are perfect for mobile applications or situations where DC power sharing between servo axes is advantageous.

Possible control options include pulse train, velocity or torque control (with analog inputs or predefined setpoints), a built-in indexer, and the use of external encoder feedback (full closed-loop control). The systems can also be controlled by any CANopen over EtherCAT (CoE) compatible PLC/host controller. The drives are fully digital with a 1kHz velocity loop response and offer Safe Torque Off (STO), eliminating the need for large external e-stop contactors.

Network motion control options include Cyclic Mode where all drives are updated every EtherCAT cycle (~1 millisecond) with position, velocity, or torque setpoints, and Profile Mode with drives receiving target setpoints for each move over EtherCAT.

All motion parameters can be stored, loaded, and triggered from an EtherCAT-compatible PLC, simplifying your control scheme. Networked motion control capabilities include storage of up to 400 position setpoints (per axis) in the PLC, electronic camming, registration, flying shear, advanced torque control, and more.

The DC powered EtherCAT-compatible servo drives $434.00 (PHOX-03-080NS-AD). The matching servo motors start at: $267.00 (APMC-FAL01AM8N-8-AD).

The CM5-RHMI headless HMI has all the powerful functionality of the C-more CM5 touch panel HMIs but without display size restrictions. This full HD enabled device (1920X1080) works with televisions, monitors, projectors, and most any other HDMI display device of any size to display real-time operational data or messages. Or skip the local display entirely and use the remote access feature which supports any windows PC (web browser) or Apple iOS and Android smartphones and tablets with the C-more Remote HMI mobile app.

The CM5-RHMI supports numerous screen resolutions including VGA 640x480, SD 720x480, XGA 1024x768, HD 1280x720, and FHD 1920x1080, provides an SD card slot for log files, project memory or graphic media, and offers 90MB of user memory. The integrated USB ports allow connections to industrial touch screen monitor displays that support the USB interface or can be used for USB mouse operations. The two serial ports and two 10/100 Base-T Ethernet ports provide support for all the major protocols and enable easy connections to multiple devices simultaneously.

All CM5 HMIs utilize powerful FREE configuration software that features C-more's legendary ease of use. The software has a built-in time-saving project simulator, a convenient Event Manager, flexible recipes, a huge array of screen objects, trend graphs, PID faceplates, true historical data logging, and much, much more.

The new CM5-RHMI headless HMI is priced at $599.00 (CM5-RHMI) and comes with a 2-year warranty.

New to our Hydraulic Components category are hydraulic power units (HPUs), heat exchangers for HPUs, and hydraulic solenoid valves from Bucher Hydraulics, a well-respected name in the industry. Hydraulic power units contain a reservoir, pump/motor, filter, and all necessary controls to power a hydraulic system. They are offered in the single-phase powered M-series and three-phase powered T-series models. A T-series dual-flow, dual-pressure model is also available. Heat exchangers for hydraulic power units extend the life of a hydraulic system by maintaining a lower fluid temperature. Hydraulic solenoid valves are available in both NFPA D03 and D05 patterns and are 4-port, 4-way, 3-position valves with tandem, closed, open, and float center options. All Bucher hydraulic power supplies, heat exchangers, solenoid valves, and accessories have a 1-year warranty.

New Wall Lenk soldering irons and guns are designed to join different types of metals together to make a strong and permanent bond. Wall Lenk is a US based company manufacturing and providing top-quality soldering equipment for over 50 years. The new pencil style soldering irons are compact and easy to use and include models up to 80 watts in corded versions, and up to 30 watts in cordless versions, with a variety of interchangeable/exchangeable tip options. The cordless version also offers a heat shrink model ideal to for use in tight area heat shrink tasks. The soldering guns are heavy-duty tools designed for challenging soldering jobs that require demanding heating ranges of up to 400 watts. These soldering guns are available in dual-heat models with 3-position (off/low/high) triggers and a variety of interchangeable/exchangeable tip options. All these soldering tools have polycarbonate impact resistant bodies with durable stainless-steel shafts and mica insulated nichrome heating elements.

Wall Lenk soldering irons start at $16.25 (WLL25) , and soldering guns start at $42.00 (WLLG2500K).

The new CPS9E series cylinder position switches are compact general purpose switches designed to detect the position of a cylinder's magnetic piston. This feedback can be used by a control system to determine cylinder position, cycle count, and to confirm operation. These switches are manufactured specifically to fit into extruded or machined 1/4-inch 60 degree dovetail slots. They are superior to reed switches since they utilize solid-state technology with no moving parts for a longer life. They are available in PNP or NPN logic, with a normally open output, and a flying lead pigtail or a 3-pin M8 electrical connection with a 90-degree cable exit. The new NITRA CPS9E cylinder position switches start at $20.00 (CPS9E-AP-A) and come with a 1-year warranty.

New Elesa mechanical position indicators are mounted to the rotating shaft of industrial equipment or machinery and use direct drive roller counters to provide an accurate reading of its position. These rugged position indicators do not require electrical power and are ideal for situations where a simple and reliable readout is needed.

Models are offered in clockwise or counterclockwise options with easy-to-read inclined upper or lower display orientations. Four- or five-digit roller counters are available in a variety of display resolutions and include a graduated scale for accurate readings.

The new Elesa mechanical position indicators are CE marked and RoHS compliant. They offer a 1-year warranty and start at $56.00 (DD51-AN-0.050-D12). Black oxide steel reducer bushings, starting at $7.50 (RB51-6) , are also available to adapt smaller rotating machine shafts to the available position indicator diameters.

HydroMode WPT25 series pressure transmitters are UL Classified NSF/ANSI/CAN 61 and 372 for drinking water applications. They feature a rugged 316L stainless steel construction and provide reliable pressure measurement signals for a variety of applications, such as controls, data collection, and telemetry systems.

The WPT25 series offers full scale pressure ranges from 15 to 300 psig, a 1/4" NPT male threaded process connection, and an industry standard 2-wire, 4-20mA analog output with a convenient M12 quick disconnect.

HydroMode WPT25 series pressure transmitters are CE marked, RoHs compliant, and have an IP54 protection rating. They offer a 2-year warranty and start at $95.00 (WPT25-20-0015H)

New di-soric OGU series photoelectric fork sensors feature a rugged one-piece aluminum or die-cast zinc "U-frame" construction that assures constant alignment. The OGU series fork sensors offer IO-Link v1.1 compatibility, up to a 14kHz switching frequency, and fork openings from 5 to 250mm. Four ready-to-run preset modes optimize the sensors for standard, high-resolution, power, or high-speed operation.

Their innovative dual operation concept provides options to configure all sensor functions, including the four selectable sensor modes, by IO-Link or easy manual switch point adjustment via potentiometer.

The new di-soric fork sensors are UL Listed, CE and UKCA marked, and RoHS compliant. They offer a 1-year warranty and start at $141.00 (OGU010G3-T3)

New CCEA VEGA series recessed industrial LED light bars expand our offering of industrial LED fixtures. Specifically designed for medium and large CNC equipment, these compact fixtures feature a rugged, ultra-slim anodized aluminum housing that is highly resistant to dust and liquids and allows mounting outside the machine's working area. These 24 VDC rated LED lights provide intense, uniform lighting, with up to 3,300 lumen output and a 120� beam angle.

CCEA VEGA series LED light bars are offered in 13.62in (346mm), 18.35in (466mm), and 27.80in (706mm) lengths. They are UL recognized, CE marked, and start at $174.00 (VE0221S01).

Pressure compensators and vent plugs from Bimed help to equalize the pressure difference between the inside and outside of a gasketed enclosure. If left unchecked, pressure fluctuations can cause seal and gasket failures and condensation buildup within an enclosure. Over time, excess condensation can lead to component corrosion, short circuits and electrical arcs, diminished performance, and expensive down time.

Bimed pressure compensators and vent plugs help reduce the strain on enclosure seals, reduce the risk of condensation, and extend the life of the complete system. They are available in various sizes, air flow rates, and feature IP ratings from IP66 to IP69K to align with the specifications of the enclosure. Both UL94 V2 polyamide and stainless-steel versions are available, starting at $3.25 (MBVPG-11-L).

The new DURApulse GS30 drives are high-performance drives that support several control modes including sensorless vector control, closed-loop flux vector control, and torque control modes in a compact package. The GS30 series expands the DURApulse family by adding internal tension control loop expanded parameter sets for greater versatility, as well as optional EtherCAT and single- or dual-port EtherNet/IP communication cards. These drives support up to four (4) independent induction motor (IM) parameter sets or control of a single AC permanent magnet (PM) motor, and are available in sizes up to 3hp for a 230VAC single-phase input, 50hp for a 230VAC three-phase input, and 100hp for a 460VAC three-phase input. Their compact design allows for a zero-stack installation to save even more space. This series offers PID control, built-in PLC functionality, and STO capability typically found with high-performance AC drives. The DURApulse GS30 has CE, TUV, UL, and cUL approvals and all DURApulse GS30 AC drives and accessories come with a two-year warranty.

AutomationDirect announces the addition of more line reactors and VFD output filters for AC drive installations. New line reactors fill the need for installations with smaller horsepower drives from ¼ to 10hp. The added output filters expand the available horsepower range up to 350hp and include models with a UL Type 1 enclosure on select sizes. The new line reactors and output filters start at $87.00 (LR2-10P2-1PH-A). Line reactors offer a 10-year warranty and output filters have a 1-year warranty.
