Pneumatic systems are used extensively in industrial automation and are usually powered by compressed air. Pneumatic systems use actuators such as cylinders that are typically controlled via solenoid valves, and are used when they can provide a lower cost, more flexible, or safer alternative to electric actuators.
Pneumatic Components
Product Categories
- Air Preparation (FRL-Filters, Regulators, Lubricators)
- Modular Directional Control Pneumatic Solenoid Valves
- Pneumatic Basic Directional Control Solenoid Valves
- Vacuum Products
- Solenoid Process (Pipeline) Valves
- Small Directional Control Solenoid Valves
- Air Cylinders
- Rodless Air Cylinders
- Rotary Actuators & Grippers
- Cylinder Position Switches
- Current to Pneumatic (I/P) Transducers
- Flexible Tubing & Hoses
- Fittings, Clamps & Air Couplings
- Special Purpose Pneumatic Fittings
- Pneumatic Manifolds
- Pneumatic Blow Guns
- ProSense® Digital Pressure Switches / Transmitters
- Pneumatic Pressure Gauges
Often regarded as the fourth utility after electricity, natural gas and water, compressed air is widely used in manufacturing facilities. Basic pneumatic components such as valves, cylinders, hoses and fittings can be combined in many ways to provide simple and reliable machine control. Pneumatic power transmission is often the best way to grip, lift, press, shift or stack products. With the addition of some passive or adaptive control - as simple as a regulator in many cases - applications such as tensioning, crimping, cutting and labeling are feasible and practical.
Guide to Pneumatic System design
Pneumatic Air Preparation
(FRL- Filters, Regulators, Lubricators)
Pneumatic air filters, pneumatic pressure regulators, air lubricators, air relief valves and soft-start valves are available in a wide variety of port sizes to meet a broad range of pneumatic air supply filtration, air regulation and compressed air lubrication applications. The modular design allows stand-alone applications and also enables easy field assembly for combining pneumatic filters, pneumatic pressure regulators, air lubricators, and air relief valves (Using modular assembly brackets which must be purchased separately).
Modular Directional Control Pneumatic Solenoid Valves
NITRA modular directional pneumatic solenoid valve systems allow the designer to simplify installation, wiring and plumbing. The space-saving design and flexibility allow pneumatic control to be tailor-made for a specific application. Systems can be controlled via Ethernet/IP communications or hard-wired discrete signals. Systems are available in panel or direct machine mounting styles.
- CMV series compact modular valve systems support up to 16 pneumatic solenoid valves per valve bank
- PAL series (Pneumatic Automation Link) supports a combination of up to 40 pneumatic solenoid valves, 16 digital input modules, 16 digital output modules, 4 analog input modules and 4 analog output modules

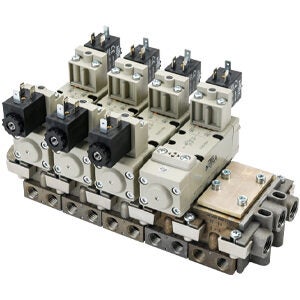

Pneumatic Basic Directional Control Solenoid Valves
Directional control pneumatic solenoid valves are electrically operated to direct airflow to sequence operations in pneumatic systems. Basic solenoid valves are used to control cylinders, rotary actuators, grippers and other pneumatic devices, and are available in a range of body styles and operating characteristics.
- AVP series stackable solenoid valves
- AVS-3 series 3-Port, 2-Position solenoid valves
- AVS-5 series 5-port, 2-Position solenoid valves
- AVS-5 series 5-Port, 3-Position solenoid valves
Small Directional Control Solenoid Valves
Directional control pneumatic solenoid valves are electrically operated to direct airflow to sequence operations in pneumatic systems. Small solenoid valves are particularly useful in space-constrained applications and can be used individually or with manifolds for multi-valve installations.
- BVS series small modular solenoid valves
- BVM series manifolds for use with BVS valves
- GVP series miniature solenoid valves
- GM series manifolds for use with GVP solenoid valves
Vacuum Products
Vacuum products from Schmalz offer an innovative way to safely pick up and move a load in applications such as pick and place.
- Vacuum suction cups in flat and bellowed styles for flexibility
- Flat cups made of Elastodur; bellowed cups are available in Elastodur, silicone or nitrile rubber
- Ejectors offer a variety of port connection sizes and styles as well as suction rates to fit specific applications
- Spring plungers for vacuum cup mounting aid in moving products of variable sizes
- Couplers to connect operators to air system
Solenoid Process (Pipeline) Valves
Glass filled nylon or brass bodies, Viton seals, brass or stainless operators.
- 2 and 3-way poppet style valves
- 2-way diaphragm style valves
- 1/8" to 1" FNPT ports
- 2-position, N.C., spring return
- 24VDC, 24VAC or 120VAC
- DIN style wiring connector
Air Pilot Valves
AVS-5 series directional control air valves are body ported 5-port (4-way) spool valves.
- 1/8", 1/4", 3/8" or 1/2" NPT ports
- 2-position, single pilot normally closed, spring return; 2-position, double pilot; 3-position, double pilot center closed
- Single valve or multiple manifold mounted valve applications
Manual Air Valves
- Pneumatic Manual Pushbutton Valves and Operators
- Compact Manual Valves
- Miniature Manual Valves
- General Purpose Foot & Manual Valves
Solenoid Valve Cables and Connectors (Square DIN Style)
These high quality, square DIN style connectors and over-molded solenoid cables dramatically reduce wiring time.
- 8mm, 9.4mm, 10mm, 11mm and 18mm DIN 43650 sizes
- 24V AC/DC, 110V AC/DC and 230V AC/DC models available
- PVC jacketed cables in 1, 3 or 5 meter lengths
- Field wireable valve connectors on select models

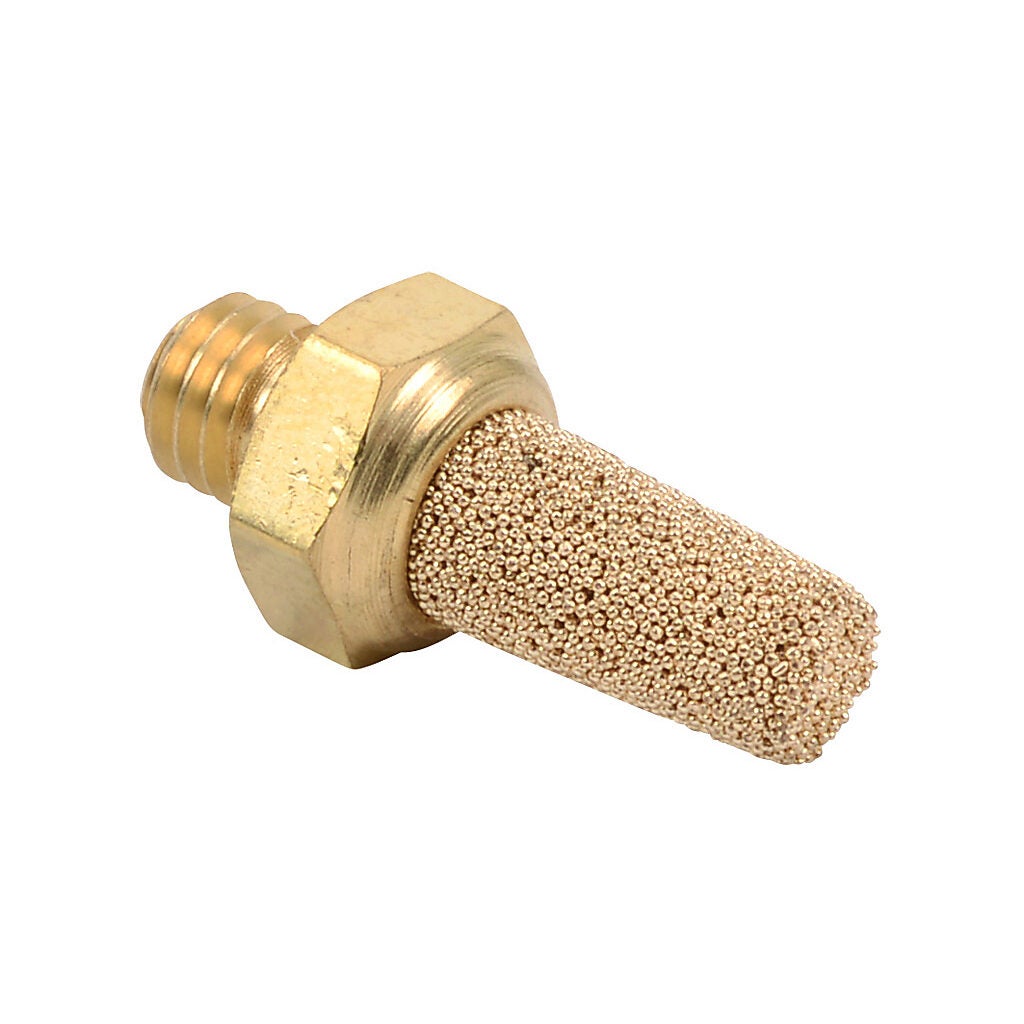

Exhaust Silencers
Add exhaust silencers (pneumatic mufflers) to the exhaust ports of NITRA directional control solenoid valves to reduce noise.
- Inch (NPT) and metric (BSPT) sizes
- Cone and flat style bronze exhaust silencers
- Cylindrical plastic silencers
Pneumatic Air Cylinders
Pneumatic cylinders use compressed air acting on a piston with rod inside a cylinder to move a load along a linear path. Both single acting (single air port for actuation with spring return) and double acting (dual air ports for both actuation and return) cylinders are available with various stroke lengths and bore sizes.
- Non-repairable
- Compact
- NFPA Tie Rod
- Dual Guide Rod
- All stainless steel non-repairable
- ISO 15552
- Compact Extruded

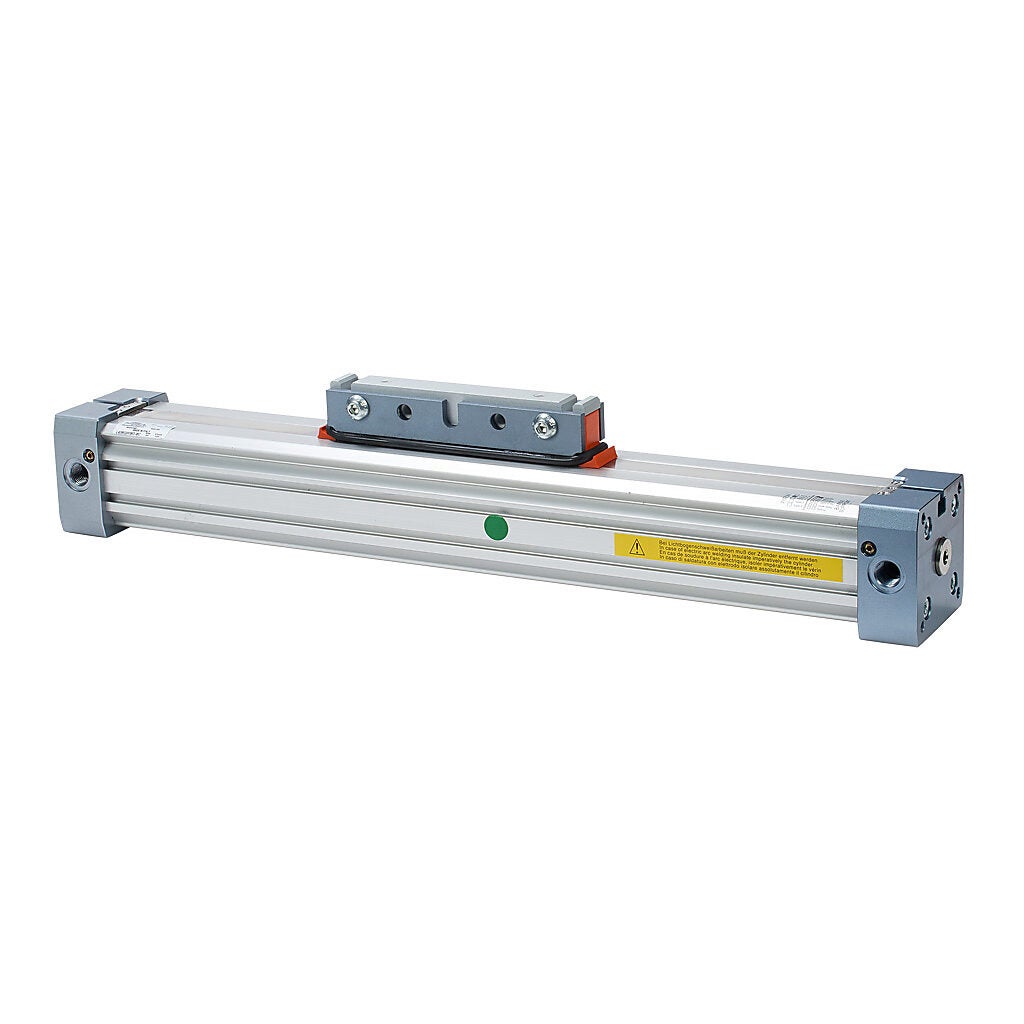

Rodless Air Cylinders
Rodless cylinders perform the same function as rodded cylinders but instead of pushing/pulling a load with a rod attached to a piston, the load is carried alongside the piston and does not require the space needed to extend/retract a rod. Various stroke lengths are offered up to 1000mm.
Rotary Actuators & Grippers
NITRA Rotary Actuators are available in four body sizes with or without shock absorbers. All are double acting and have an adjustable travel range from zero to 190 degrees. Anodized aluminum bodies include integral mounting slots for position switches.
Starting at
$233.00
NITRA Grippers are available in both parallel and angular travels in seven different body sizes. Grippers are either double acting, single acting normally closed or single acting normally open. Anodized aluminum bodies include integral mounting slots for position switches.
Pneumatic Air Cylinder Switches/ Cylinder Position Sensors
The NITRA CPS Series of cylinder position switches offers a robust, yet cost-effective, interface between pneumatic or hydraulic actuators and electrical control systems. Using state-of- the-art magnetic sensing technology, these switches are designed for use with cylinders that have a magnet incorporated in the cylinder piston. They can be used to provide cylinder position indication, cycle count, or to confirm operation. NITRA cylinder position switches are available in nine styles with accessories to fit many different styles of cylinders or actuators.
Current to Pneumatic (I/P) Transducers
I/P Transducers are electro-pneumatic regulators that control air pressure with a 4-20mA signal. NITRA NCPx Series electro-pneumatic transducers (I/P) convert a 4-20 mA current signal (I) from a PLC or other controller to a linear pneumatic output pressure (P).
- 4-20 mA input compatible with PLCs and other controllers
- Several output pressure ranges applicable for industrial pneumatic and process control applications
- Direct or bracket mounting (bracket included)
- Optional pipe and DIN rail mounting kits available (NCP2)
- Rated for NEMA 4X (IP65) environments
- Approved for Hazardous Locations
Flexible Pneumatic Tubing & Hoses
Tubing and hose are a convenient way to connect pneumatic control components. All-purpose tubing options accommodate a variety of application needs. Hose generally refers to tubing with connectors pre-attached.
NITRA Pneumatic Fittings, Clamps & Air Couplings
Push-to-Connect NPT Pneumatic Fittings (Thermoplastic)
Push-to-Connect R-Thread Pneumatic Fittings (Thermoplastic)
Push-to-Connect G-Thread Pneumatic Fittings (Thermoplastic)
Push-to-Connect Union Pneumatic Fittings (Thermoplastic)
Quick-connect fittings and quick release air fittings require no tools for connection and dis-connection of tubing.
Push-to-Connect Pneumatic Fittings (Stainless Steel)
These fittings are made with 316 stainless steel bodies and 303 stainless steel gripping collets with internal Viton o-ring. Threaded components are 316 stainless steel.
Threaded Fittings
Threaded fittings are machined from quality brass bar stock or
forgings. They work well with air, water, oil, oxygen, nitrogen and
argon. Available in most popular styles and sizes, the fittings all
have NPT threaded connections.
Hose Clamps
Secure hoses with plated steel adjustable or stainless steel interlocking hose clamps; hose clamp crimping tools are available
Quick-Disconnect Air Couplings
These couplings allow easy changing of tools or hose connections. The quick
disconnect couplings (female) and plugs (male) are available in
three of the most popular styles: IND, ARO and Truflate.
Swivel Air Fittings
These fittings allow easy changing of tools or hose connections and prevent kinking
and strain on supply lines.
NITRA Special Purpose Pneumatic Fittings
- Flow Control Valves
- Quick Exhaust Valves
- Shutoff Hand Valves
- Pressure Regulators / Gauges / Indicators
- Check Valves / Stop Valves
- Shuttle Valves / Bleed Valves
- Accessories - Special Purpose Fittings

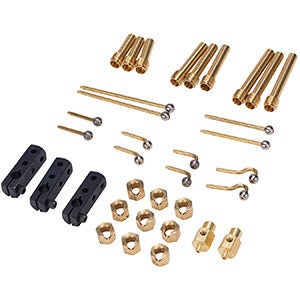

Air Jets
NITRA brass pneumatic air jets are useful for numerous applications including cooling, chip removal, moving small parts, etc.
- 30 possible air jet combinations
- Several component options
- Can mount to manifolds for multiple use applications
- Made in USA
- 2-year warranty
NITRA Pneumatic Manifolds
Manifolds provide a convenient junction point for the distribution of fluids or gases. Simply thread fittings into the ports to produce an organized method of supplying multiple lines from a single source.
Aluminum Pneumatic Manifolds
- Aluminum manifolds are anodized for corrosion and wear resistance
- Operating pressure: 1000 psi air, 3000 psi hydraulic
Starting at
$9.25 (MRA-4BA)
Nylon Pneumatic Manifolds
- Non-metallic Nylon manifolds are more chemical resistant.
- Operating pressure: 200 psi air, 3000 psi hydraulic
Starting at
$30.00 (MRN-2CB)
Polypropylene Pneumatic Manifolds
- Non-metallic polypropylene manifolds are more chemical resistant.
- Operating pressure: 150 psi air, 3000 psi hydraulic
Starting at
$27.50 (MRP-2CB)
NITRA Stainless Steel Pneumatic Manifolds
- Stainless steel manifolds are ideal for use in highly corrosive environments.
- Operating pressure: 3500 psi
Starting at
$55.00 (MRS-2CB)
Pneumatic Blow Guns
Pneumatic blow guns (or air gun nozzles) are available in heavy duty palm type with safety tip or in aluminum and plastic pistol grip versions.
- Maximum input pressure 120 psi
- Connection: 1/4 female NPT thread size on inlet
Pneumatic Pressure Sensors
Pressure switches and sensors are designed to monitor relative system pressure in many applications such as hydraulics and pneumatics.
- Pneumatic Pressure Switches/ Pressure Sensors
- Mechanical Pressure Switches
- Pneumatic Pressure Transmitters
- Pneumatic Digital Pressure Switches / Transmitters

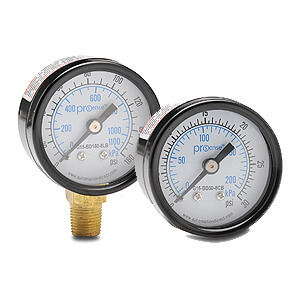

Pneumatic Pressure Gauges
Pneumatic Dial Pressure Gauges and Digital Pressure Gauges
- Mechanical Dial Pressure Gauges (1.5, 2.0, 2.5 Inch Dials)
- Pneumatic Digital Pressure Gauges
