The most popular pneumatic actuator style uses compressed air acting on a piston inside a cylinder to move a load. Single-acting cylinders have a single port (air inlet) to extend the piston; an internal spring or sometimes gravity retracts the piston. Double-acting cylinders have separate ports to extend and retract the piston.
This page will refresh momentarily.
Warning
Some of the selected facets have been selected by the {{ assistanceData.title }} Help.
Resetting/clearing ALL facets will end {{ assistanceData.title }} Help.
![Help icon]()
Selection Assistance - {{ assistanceData.title }}
Pneumatic Cylinders
Category Selection
There are thousands of industrial applications requiring a linear motion during their operation sequence. One of the simplest and most cost effective ways to accomplish this is with a pneumatic cylinder. Rodded cylinders consist of a piston and rod moving on a linear path inside a closed cylinder when air is applied. This actuator style can be sub-divided into two types based on the operating principle: single acting and double acting.
- Single acting cylinders have a single port to allow compressed air to enter the cylinder to move the piston to the desired position, with a spring or gravity providing the return motion when air is removed.
- Double acting cylinders have a port at each end and move the piston forward and back by alternating the port that receives the high-pressure air.
Pneumatic cylinders are very clean operating devices because the operating fluid is a gas, which prevents drippings from leakage that could contaminate the surroundings. A wide range of body styles, stroke lengths, and bore sizes are available to choose from, with accessories that include position switches and mounting brackets.
For part listings and specifications, go to Shop Now
Imperial Non-repairable Air Cylinders
Non-repairable cylinders, also known as throw-away cylinders, are designed so that no repairs can be made if/when they no longer function properly; however, replacing these parts is simple and typically costs less in the long run.
- Single-acting and double-acting air cylinders
- Bore sizes up to 2 inches; stroke lengths up to 18 inches
- 3 cylinder mounting configurations
- Type 304 stainless steel round cylinder body with high-strength aluminum alloy end caps

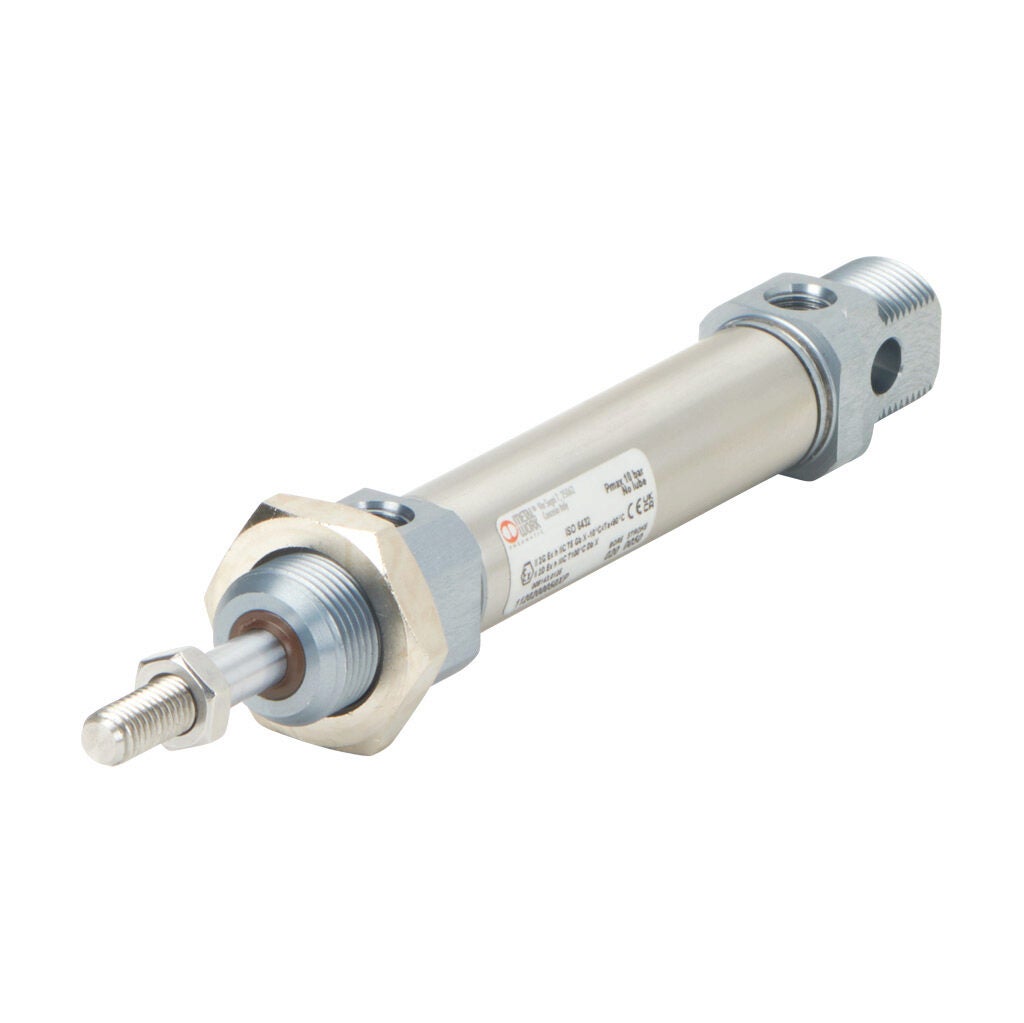

ISO 6432 Non-Repairable Air Cylinders
New!
ISO 6432 cylinders are a type of non-repairable cylinder that adheres to an international metric standard. These cylinders are inexpensive and can be used to replace any ISO 6432 cylinder regardless of the brand.
- Double-acting
- Bore sizes from 12mm to 25mm; stroke lengths up to 300mm
- Universal mount with many optional installation accessories available
- Chamfered 304 stainless steel barrel
Compact Air Cylinders
Compact stainless steel round body cylinders meet a broad range of applications where space is a concern. These small cylinders are also sometimes referred to as mini cylinders, mini actuators, flat cylinders or pancake cylinders.
- Double-acting mini air cylinders
- Bore sizes up to 3 inches; stroke lengths up to 4 inches
- Interchangeable with other pneumatic mini cylinder brands (pancake cylinders)
- Type 304 stainless steel cylinder body with high-strength aluminum alloy end caps
- Made in the USA
NFPA Tie Rod Air Cylinders
NFPA tie-rod cylinders are held together by four or more threaded tie bolts that run the length of the cylinder and meet the standards established by the National Fire Protection Association. These cylinders are ideal for applications where abusive conditions are a concern.
- Double-acting cylinders
- Bore sizes up to 4 inches; stroke lengths up to 32 inches
- Interchangeable with other common brands of heavy duty cylinders
- Solid high alloy aluminum pistons fitted with magnet and PTFE wear band
- High tensile strength chrome-plated steel piston rods
- High tensile steel torqued tie rods, to allow flexure
- Made in the USA

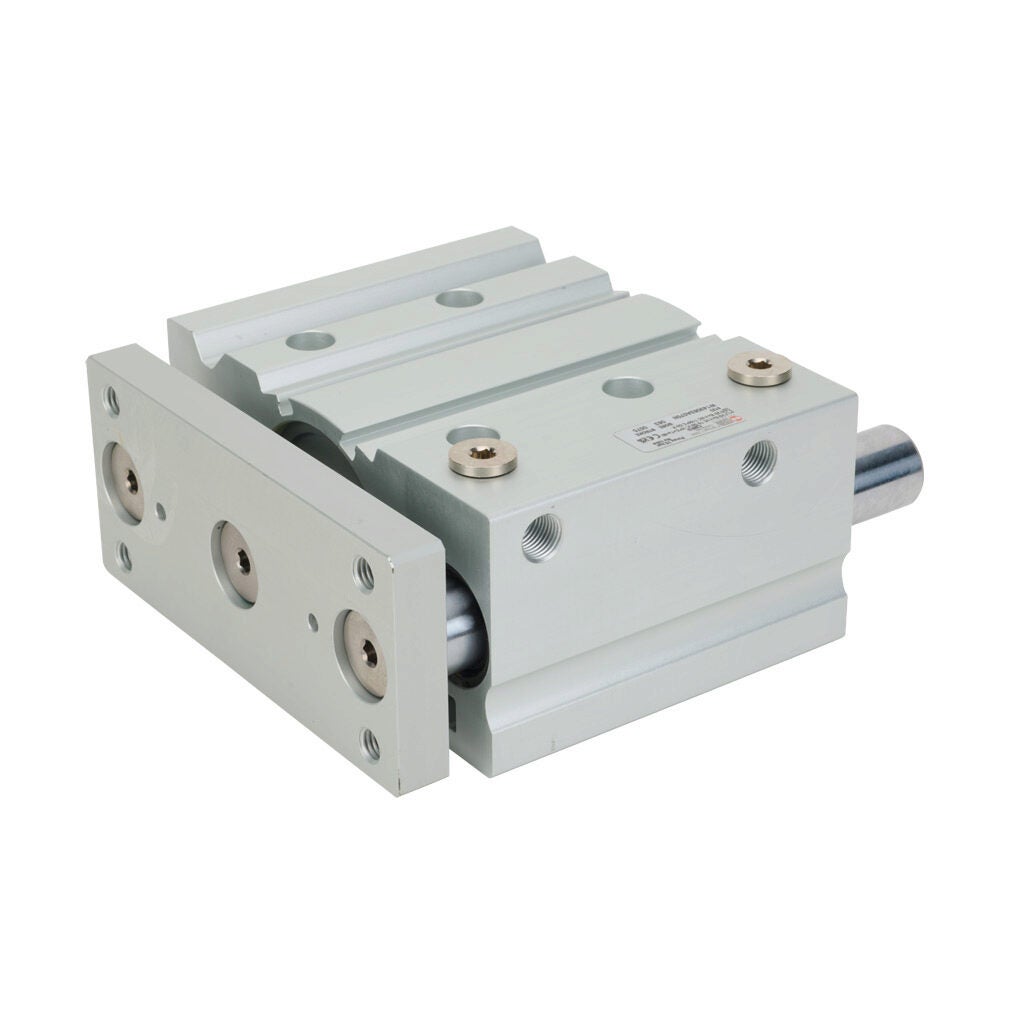

Dual Guide Rod Air Cylinders
Newest Additions!
- Metal Work heavy-duty dual guide rod air cylinders
Guided pneumatic cylinders include two adjacent rods to aid in operation stability and position accuracy. The two guide rods and piston are attached to a yoke plate, which prevents the piston from rotating when transverse loads are applied.
- Double-acting cylinders
- Bore sizes up to 63mm; stroke lengths up to 400mm
- Interchangeable with other common brands of guided rod cylinders
- Non-rotate tolerance of +/-0.10° or less
All Stainless Steel Air Cylinders
These non-repairable cylinders feature all stainless steel components to ensure a long cylinder life.
- Double-acting air cylinders
- All stainless steel body, end caps, and rod
- Bore sizes up to 2 inches; stroke lengths up to 18 inches
- 3 cylinder mounting configurations
- Interchangeable with other common brands of round body cylinders
- Made in the USA

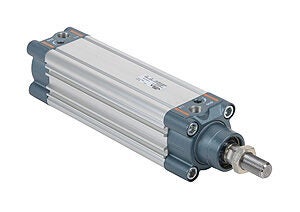

ISO 15552 Air Cylinders
ISO 15552 cylinders are very similar in design to NFPA cylinders (US version). They have dimensions that conform to the ISO 15552 standard and include magnetic material on the piston for sensing position.
- Double-acting cylinders
- Fully metric designed to the ISO 15552 standard
- Bore sizes up to 100 mm; stroke lengths up to 600mm
- Flange, pivot and clevis cylinder mount options available
- Adjustable cushions at both ends
Compact Metric Extruded Air Cylinders
Space-saving, compact air cylinders in metric sizes meet a broad range of limited space applications. These high quality cylinders are constructed with hard anodized extruded aluminum bodies and end caps.
- Double-acting compact air cylinders
- Bore sizes up to 100mm; stroke lengths up to 100mm
- Cylinder switch mounting slots are built in to the bodies
- All sizes include a magnet in the piston and a chrome plated steel piston rod
- Nitrite/Buna-N "O" ring rod and piston seals
- Cylinders are factory lubricated for optimum performance and long, reliable life
Air Cylinder Accessories
Accessories for air cylinders include mounting hardware and brackets such as clevis joints, mounting brackets, rod end connectors and locking nuts.
