> Pneumatic Components > Pneumatic Air Cylinders > Compact
  •   Shop
  •   Overview
  •    In Depth
Compact
Compact Pneumatic Air Cylinders

Compact round body cylinders are often referred to as pancake cylinders and are perfect for space-constrained applications or anywhere high force and shorter stroke are required. These double-acting air cylinders are interchangeable with other similar-style cylinder brands.

Stride Interactive Product Tour Request
Company Name:
Last Name:
First Name:
Business Email:
Country:
Job Title:
Category Selections
Imperial Non-repairable
Imperial Non-repairable
Newest Additions!
ISO 6432 Non-repairable
ISO 6432 Non-repairable
Newest Additions!
Compact
Compact
Newest Additions!
NFPA Tie Rod
NFPA Tie Rod
Newest Additions!
Dual Guide Rod
Dual Guide Rod
Newest Additions!
All Stainless Steel Non-repairable
All Stainless Steel Non-repairable
Newest Additions!
ISO 15552
ISO 15552
Newest Additions!
Compact Extruded
Compact Extruded
Newest Additions!
Air Cylinder Accessories
Air Cylinder Accessories
Newest Additions!
Shop Now

Compact Air Cylinders

NITRA Compact Pneumatic Actuators - mini cylinders - pancake cylinders
NITRA All Stainless Steel Pneumatic Cylinders - F Series

For applications that require a short stroke within a very limited space, compact air cylinders can provide a solution. These low-profile cylinders can fit in the tightest of spaces and can provide actuation of flaps and levers or they can be used to bend, clamp, eject, lift and/or lower parts.

  • Bore sizes from 9/16" to 3"
  • Stroke lengths from 1/4" to 4"
  • Double-acting
  • Interchangeable with other mini actuator, flat cylinder or pancake cylinder brands

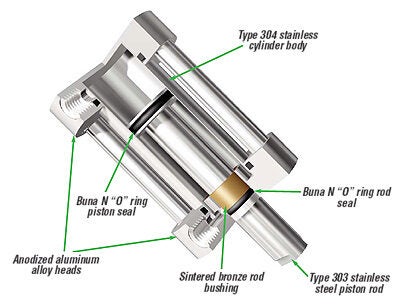

  • Constructed with stainless steel bodies and high strength aluminum end caps with full flow ports.
  • To minimize friction, the inside of the pneumatic cylinder body is polished to a mirror finish and all mini air cylinders are pre-lubricated for optimum performance and long, reliable life.
  • The high strength aluminum alloy piston is securely attached to a piston rod that is ground and roller burnished 303 stainless steel for exceptional strength.
  • Buna N "O" ring rod and piston seals.
  • Made in USA

Starting at
$57.00
(C090025D)

For part listings and specifications, go to Shop Now
