Sensors & Encoders

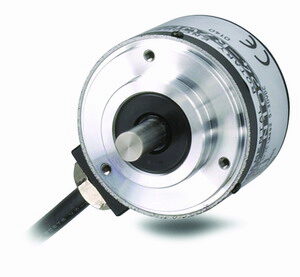

Incremental and Absolute Encoders

Use these optical encoders for your motion control applications or with our PLC high-speed counter modules and our Variable Frequency Drives (VFDs) with encoder feedback.

• Light duty 4mm and 6mm solid shaft
• Light duty 8mm hollow shaft
• Light duty solid shaft SAE-dimension
• Medium duty solid shaft and hollow shaft
• Medium duty solid shaft SAE-dimension
• Heavy duty standard shaft
• Absolute medium duty standard shaft
• Accessories (couplings, mounting brackets, cables & connectors)

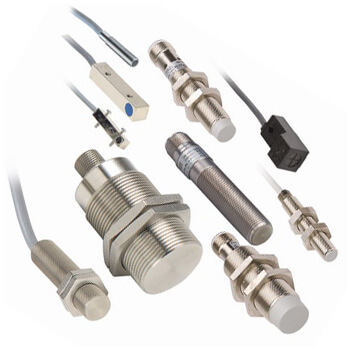

Inductive Proximity Sensors

Inductive sensors detect metallic objects. IP69K sensors are rated for harsh duty (food grade) applications; new metal face and rectangular proximity sensors offer more options.

• 3mm / 4mm / 5mm round
• 6.5 mm round ... New!
• 8mm round
• 12mm round
• 18mm round
• 30mm round
• Rectangular
• Cables & Accessories

Magnetic Proximity Sensors

316L stainless steel and polybutylene terephthalate housings, IP69K prox sensors rated for food and beverage or other harsh duty applications.

• 8mm round
• 12mm round IP69K
• 18mm round IP69K
• Rectangular

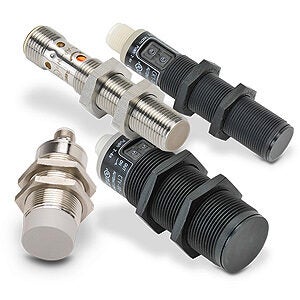

Capacitive Proximity Sensors

Inductive sensors detect metallic objects, while capacitive sensors detect all other materials.

• M12 (12mm) Diameter - DC Power
• M18 (18mm) Diameter - DC Power
• M30 (30mm) Diameter - DC, AC/DC Power
• Rectangular - DC Power
• ZIPport Multi-Port Junction Blocks
• Field Wireable Connectors and T-Couplers
• Accessories

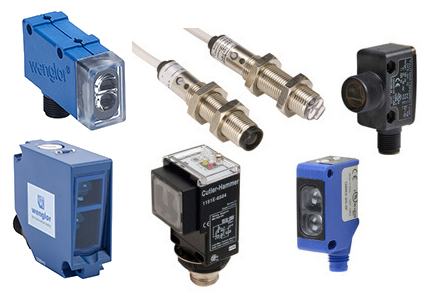

Photoelectric Sensors

Photoelectric sensors and photo eyes allow non-contact detection of objects using red or infrared guided light. New IP69K sensors are rated for harsh duty (food grade/ washdown) applications.

• High Performance AC/DC
• Light Screens
• DC rectangular
• 5mm round - stainless
• 8mm, 12mm, 18mm round - metal
• 18mm round - IP69K
• 18mm round and cube - non-metal
• 18mm AC powered

Area Sensors

Area Sensors are multi-beam, through-beam sensors used to sense wide areas. MD area sensors are available in basic and advanced versions.

• Basic Area Sensors - CX0 and BX80 Series (detection height up to 320mm)
• Advanced Area Sensors - CX2 Series (detection height up to 960mm, blanking function, analog output)
• Area Sensors Accessories

Laser Sensors

Laser sensors are available in diffuse, background suppression and retroreflective styles for object sensing, or with CMOS or transit time technologies for accurate distance measuring.

• Laser distance sensors - OPT series
• Diffuse DC FAL4 series
• Polarized retroreflective FALN series
• Through-beam FALH & FALD series
• Cables and accessories

Fiber Optic Sensors

Supreme noise protection and small sizes for tough applications. 18mm round and DIN-rail amplifiers. 4mm, 6mm and 7mm fiber heads available. 2.2mm cuttable plastic fibers.

• OPT Series single and multi-fiber units
• 18mm round amplifiers
• DIN-rail amplifiers
• Cuttable plastic fibers
• Metal covered glass fibers
• Cables & accessories

Color Sensors

Wenglor Color Sensors reliably select colored objects in automated high-speed processes based on previously defined reference colors.

• 3 Color Sensor
• 12 Color Fiber-Optic Amplifier Sensor
  multispectral sensor with 12 switching outputs
• Color Sensors Fiber Optic Cables
  for installation in tight spaces

Contrast Sensors  ... New!

Contrast sensors determine contrast using RGB light emission to detect the difference in the reflected light between mark and background.

• Wenglor sensors - white light emission
  12 - 40mm sensing distance
• DataLogic S8 series - RGB emission
  6 - 12mm sensing distance
• DataLogic TL46 series - RGB emission
  6 - 12mm sensing distance

Fork Sensors

Fork sensors (also called slot sensors or "U" sensors) offer advantages over standard through-beam sensors including identical mechanical / optical axis, operational reliability and repeatability with transmitter and receiver built into the same housing.

• Red light PSUR series
• Laser PSUL series
• Laser clear (transparent) object PSTL series

Ultrasonic Proximity Sensors

Ultrasonic proximity sensors are ideal for applications in which the sensed object is made of clear, transparent or varying surface color materials.

• 18mm round
• 30mm round
• Miniature, rectangular sensors for limited mounting spaces
• Ultrasonic liquid level sensors

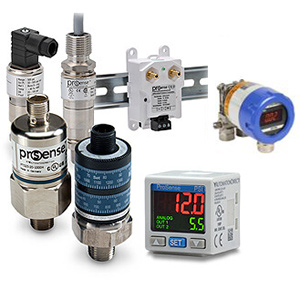

Pressure Sensors / Pressure Switches

ProSense pressure switches and pressure sensors are designed to monitor system pressure in hydraulic and pneumatic applications and vacuum systems.

• Electronic pressure switches
• Mechanical pressure switches
• Compact pressure and vacuum transmitters
• Digital switches / transmitters with LCD display
• Pressure transmitters with ceramic or stainless steel sensing element
• Differential pressure transmitters

Pressure Gauges & Dial Thermometers

• ProSense mechanical dial Pressure Gauges are available in a variety of configurations for displaying pressure readings in most pneumatic, hydraulic, HVAC, plumbing, industrial and commercial applications.
• General purpose 3" and 5" dial thermometers, have bi-metallic sensing elements for reliable readings and are back mount (3" dial) or adjustable angle (5" dial) with 1/2" NPT connection.

Temperature Sensors & Transmitters

ProSense temperature switches, sensors, transmitters, thermowells, and thermocouples provide accurate temperature monitoring and control.

• Temperature switches
• Digital temperature switches and transmitters
• Thermocouple probes and sensors
• RTD temperature probes and sensors
• Temperature Transmitters (T/C or RTD)
• Programmable Transmitters (T/C or RTD)
• Temperature transmitters with M12 quick-disconnect for fast mounting
• Thermowells and fittings
• Thermocouple wire and RTD extension wire

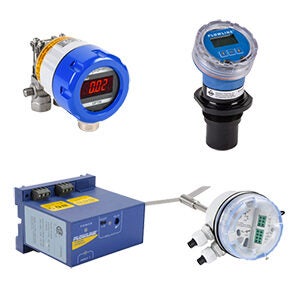

Level Sensors - Ultrasonic & Float

• Flowline® Ultrasonic Level Sensors / Switches
  Replace float, conductance and pressure sensors in small, medium and large capacity tanks.
• Flowline® Level Sensors (Contact)
  Ultrasonic, vibration point, capacitance, buoyancy contact level sensors.
• ProSense® Float Level Switches
  Provide a low-cost general purpose solution for single point monitoring of liquid levels.
• ProSense® Submersible Level Sensors
  SLT series submersible level sensors provide continuous liquid level measurement by sensing hydrostatic pressure.

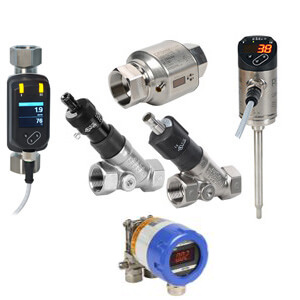

Flow Sensors

ProSense FSD Series flow switches, FSA Series flow transmitters and FMM Series flow meters monitor liquid media and provide reliable flow detection for various flow applications.

• FSD Series Flow Switches
  - monitor 0.26 to 26.4 GPM
• FSA Series Flow Transmitters
  - measure up to 27 GPM
• FMM Series Flow Meters ... New!
  - measure up to 160 GPM

Current & Voltage Sensors (AC & DC)

The AcuAMP family of high performance AC and DC current sensors offers outstanding features, flexibility and durability at incredible prices.

• AC and DC current transducers
• AC current transformers
• AC current transducers - true RMS
• AC current switches - single and multi range
• AC current switches with time delay
• DC current switches
• AC current indicator
• AC and DC voltage transducers

Ground Fault Sensors

AcuAMP ground fault sensors help protect people, products, and processes from damage that can be caused by ground fault conditions.

• Wide range of options
• Jumper-selectable setpoints of 5, 10, 30 mA
• Relay outputs with Auto or Manual reset
• Use on single- and three-phase systems
• Use up to 14 AWG copper wires
• Protect personnel, equipment and meet regulatory requirements

Limit Switches

Our limit switches feature the most popular actuator styles (plungers, short and adjustable levers with rollers, and steel and plastic rods) and a wide variety of cable entry options.

• Precision limit switches
• Stopper limit switches ... New!
• Eaton NEMA limit switches
• Compact limit switches
• Heavy duty IEC limit switches
• Double insulated (PBT) limit switches
• Miniature double insulated (PBT) limit switches
• Pneumatic limit switches ... New!

Cloud Data Logger with IO

Pocket Portal (Cloud Logger with IO) ... New!
Low cost data logging from industrial equipment and sensors to the IoT cloud. Limited control capability with Modbus RTU write capability or discrete output logic.
