Ultrasonic sensors emit a sound impulse and measure the elapsed time of the echo from an object. They sense most materials (metal, wood, plastic, glass, liquid, etc.) and are unaffected by color, transparency, shininess, or lighting conditions. Models are available with discrete (object detection) or analog (distance sensing) outputs, in sensing distances up to 8000mm.
Ultrasonic Proximity Sensors and Liquid Level Sensors
Category Selection
Ultrasonic Proximity Sensors
Ultrasonic Liquid Level Sensors

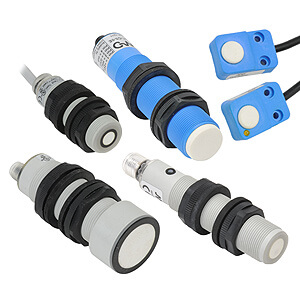

SU, UK, UT and TU series round body and UQ series cubic plastic ultrasonic distance sensors emit a sound impulse and measure the elapsed time of the returned echo signal reflected from a detected object. The ultrasonic beam is well reflected by almost all materials (metal, wood, plastic, glass, liquid, etc.) and is not affected by colored, transparent, or shiny objects.
UHZ series thru-beam ultrasonic sensors use sound wave technology and are specifically designed for applications with limited mounting space. Thru-beam pair sensors are often the most accurate and reliable sensor configurations.
Ultrasonic sensors are ideal for applications in which the sensed object is made of clear, transparent or varying surface color materials. You can standardize on one sensor for many materials, without any extra setup or sensing concerns.
Flowline ultrasonic liquid level sensors replace float, conductance and pressure sensors and are available with single and multi-function capabilities including continuous level measurement, switching and control.
Diffuse 300mm Sensing Range
UQ1A Series - 40 to 300 mm
UK6A Series - 40 to 300 mm
UK1A Series - 50 to 400 mm
- M18 (18mm) cubic plastic housing (UQ series)
- M18 (18mm) plastic housing (UK6 series)
- M18 (18mm) metal or plastic housing (UK1 series)
- Discrete and/or analog output models available
- Discrete models available with adjustable sensitivity
- 10 to 30 VDC models available
- IEC IP67 protection rating
- LED status indicators
- Short body for flexible mounting (UK6 series)
- 2m output cable or M12 quick disconnect models available
- Lifetime warranty
Diffuse 400mm Sensing Range
UK1A Series - 50 to 400 mm
- M18 (18mm) metal or plastic housing
- Discrete and/or analog output models available
- Discrete models available with adjustable sensitivity
- 10 to 30 VDC models available
- IEC IP67 protection rating
- LED status indicators
- Short body for flexible mounting (UK6 series)
- 2m output cable or M12 quick disconnect models available
- Lifetime warranty
Diffuse 600-900mm Sensing Ranges
UQ1C Series - 60 to 800 mm
UK6C Series - 60 to 800 mm
UK1C Series - 80 to 900 mm
SU1 Series - 100 to 600 mm
- M18 (18mm) metal or plastic housing (UK1 series)
- M18 (18mm) cubic plastic housing (UQ series)
- M18 (18mm) plastic housing (UK6, SU series)
- Discrete and/or analog output models available
- Discrete models available with adjustable sensitivity
- 10 to 30 VDC models available
- IEC IP67 protection rating
- LED status indicators
- Short body for flexible mounting (UK6 series)
- 2m output cable or M12 quick disconnect models available
- Lifetime warranty
Diffuse 1200-1600mm Sensing Ranges
UQ1D Series - 80 to 1200 mm
UK1D Series - 150 to 1600 mm
SU2 Series - 200 to 1500 mm
- M18 (18mm) metal or plastic housing (UK series)
- M18 (18mm) cubic plastic housing (UQ series)
- M18 (18mm) plastic housing (SU series)
- Discrete and/or analog output models available
- Discrete models available with adjustable sensitivity
- 10 to 30 VDC models available
- IEC IP67 protection rating
- LED status indicators
- 2m output cable or M12 quick disconnect models available
- Lifetime warranty
Diffuse 2200-2500mm Sensing Ranges
UK1F Series - 200 to 2200 mm
TU Series - 300 to 2500 mm
- M18 (18mm) metal or plastic housing (UK series)
- M18 (18mm) plastic housing (TU series)
- Discrete or analog output models available
- Discrete models available with adjustable sensitivity
- 10 to 30 VDC (UK series)
- 19 to 30 VDC (TU series)
- IEC IP67 protection rating
- LED status indicators (UK series)
- 2m output cable or M12 quick disconnect
- Lifetime warranty
Diffuse 3500mm Sensing Range
UT Series - Ultrasonic 30mm Proximity Sensors
- M30 (30mm) metal or plastic housing
- Discrete or analog output models available
- Models available with analog and discrete switching outputs
- Discrete models available with adjustable sensitivity
- 10 to 30 VDC
- IEC IP67 protection rating
- LED status indicators
- 2m output cable or M12 quick disconnect
- Lifetime warranty
Diffuse 6000-8000mm Sensing Ranges
UT Series - Ultrasonic 30mm Proximity Sensors
High-resolution with extremely long sensing ranges up to 8000mm.
- M30 (30mm) metal or plastic housing
- Discrete or analog output models available
- Models available with analog and discrete switching outputs
- Discrete models available with adjustable sensitivity
- 10 to 30 VDC
- IEC IP67 protection rating
- LED status indicators
- M12 quick disconnect
- Lifetime warranty
Through-Beam 300mm Sensing Range
UHZ Series - Rectangular Miniature Ultrasonic Sensors
- Miniature size: 30 x 20 x 12 mm rectangular housings
- Emitter / Receiver through beam pair
- 18-30 VDC operating voltage
- 150Hz switching frequency
- NPN or PNP, NO or NC models
- LED status indicator
- 2-meter axial connection cables
- IEC IP67 protection rating
Ultrasonic Liquid Level Sensors
The Flowline EchoPod®, EchoSonic® II, Echotouch™, EchoSpan® and EchoSwitch® are innovative ultrasonic liquid level sensor families that replace float, conductance and pressure sensors that fail due to contact with dirty, sticky and scaling liquids in small, medium and large capacity tanks. These liquid level control sensors can be used in either open or enclosed tanks. PC software configured or pushbutton configured models are available.
- Applied in chemical, water and wastewater applications, these general purpose fluid level sensors are available with single and multi-function capabilities including continuous level measurement, switching and level control
- Measurement outputs include current, voltage, frequency and relays
- PC configuration of software configured units is simple using the FREE WebCal™ software and a programming fob with a USB adapter
- Pushbutton configured units are easily configured using the built-in pushbuttons (no PC required)
- PVDF transducer and NEMA Type 6P polycarbonate enclosure for corrosive liquids
- Automatic temperature compensation for accurate measurement
