Linear encoders ride above a magnetically coded strip to sense extremely accurate linear position as they move. The coded strip is available with adhesive-backed flexible tape or as a rigid rail. Quadrature output provides 0.01mm precision with magnetic strip lengths up to 20 meters.
This page will refresh momentarily.
Warning
Some of the selected facets have been selected by the {{ assistanceData.title }} Help.
Resetting/clearing ALL facets will end {{ assistanceData.title }} Help.
![Help icon]()
Selection Assistance - {{ assistanceData.title }}
Linear Encoders
New!

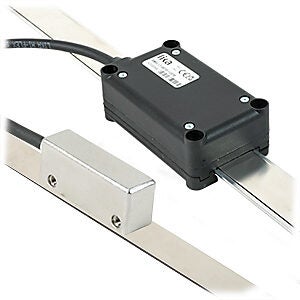

The Lika medium-duty incremental linear encoders combine a sliding encoder body and a magnetically coded strip to provide extremely accurate linear position over distances up to 20 meters. A quadrature output results in accuracy up to 0.01mm, with single-increment repeatability (0.01mm/count) at speeds up to 20 m/s.
- AME95 series IP67 encoder bodies are user-positioned above adhesive-backed elastomer tape
- ATI series tape is available in lengths up to 20 meters and can be cut to length
- Stainless steel cover material is provided to protect the tape
- End clamps are available to protect the ends and provide additional mounting security
- AMIG series IP65 encoder bodies are captive-to and slide along a rigid rail
- ATIG series aluminum rails contain and protect the magnetically coded material
- Sliding arrangement maintains the proper positional gap
- Single bolt mounting provides alignment flexibility
- Rails are available in six lengths, from 195mm to 650mm
- Support for both line driver (differential) or push-pull (totem) output types
- Available with integrated two-meter pigtail cables or 8-pin M12 quick disconnects
- M12 cables are available in two-meter, shielded, continuous-flexing variants for use in cable carrier drag chain
Starting at
(AME95-L1-010-I-L02B)
For part listing and specifications, go to Shop Now
