> Sensors / Encoders > Encoders > Encoder Accessories
  •   Shop
  •   Overview
Encoder Accessories
Accessories for Encoders

Encoder accessories include mounting brackets, flanges, clamps, configuration software. replacement encoders and measuring wheels. Flexible couplings and bushings, in metric and inch sizes, connect encoders to rotating shafts. Cables and connectors enable configuration and wiring of encoders.

Stride Interactive Product Tour Request
Company Name:
Last Name:
First Name:
Business Email:
Country:
Job Title:
Category Selections
Rotary Encoders
Rotary Encoders
Modular Kit Encoders for Stepper Motors
Modular Kit Encoders for Stepper Motors
Draw Wire Encoders
Draw Wire Encoders
Encoder Accessories
Encoder Accessories
Shop Now

Encoders

Category Selection

  • Rotary Encoders
  • Modular Kit Encoders for Step Motors
  • Draw Wire Encoders
  • Encoder Accessories

Incremental Encoders, Absolute Encoders, Measuring Wheel Encoders, Draw Wire Encoders, Modular Kit Encoders, and Accessories

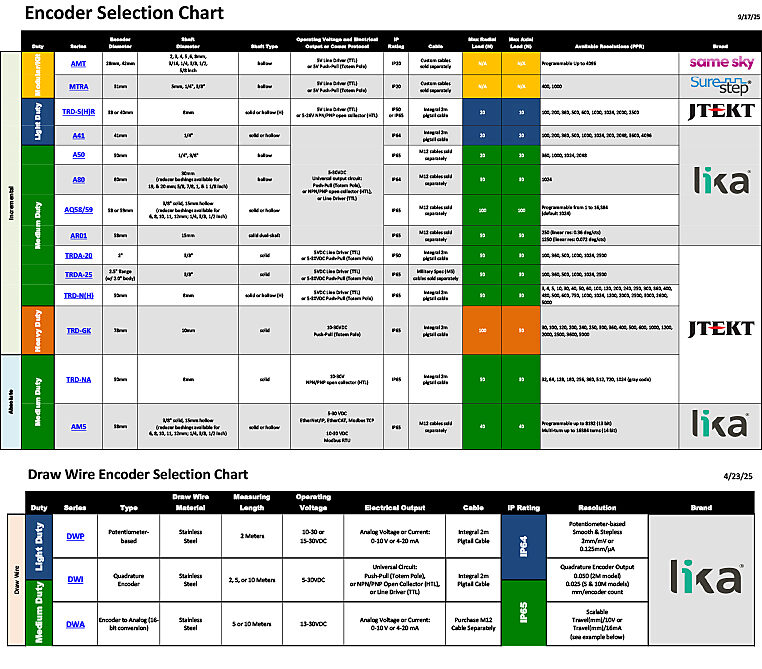

This link opens a PDF. Encoder Selection Chart
(click to download)

This link opens a PDF. Encoders Overview

This link opens a PDF. What is an Encoder?

This link opens a PDF. Frequently Asked Questions

This link opens a PDF. Encoder White Paper

Encoders are used in all types of motion sensing applications, including machine tooling, semiconductor positioning and multi-axis positioning. All encoders feature plastic or reinforced aluminum diecast casings and come equipped with an integral two-meter pigtail cable or are connectorized for easy replacement or troubleshooting. All kit encoders (for stepper motors) are ready-to-mount, with hardware and shaft adapters included.

Use incremental encoders with our PLC high-speed input modules for accurate position monitoring. Absolute encoders (Gray code, Ethernet, or serial communications output) provide immediate position information on power-up (without a homing sequence). Gray code encoders can be wired to standard PLC DC input cards. Use draw wire encoders to measure linear distance or displacement of machine elements and connect them to high-speed pulse inputs or analog inputs on the PLC. Cables, mounting brackets, shaft reducer bushings and flexible couplings are also available.

Availability-Price-Quality

  • All our encoders are typically in stock and available for immediate shipment
  • As with all our product lines, our prices are often well below the list prices of traditional automation suppliers
  • All encoders carry a 1-year warranty and have a 45-day money-back guarantee

For part listings and specifications, go to Shop Now

Light Duty Incremental Encoders

Rotary Encoders

Newest Additions!

  • Lika Electronic absolute encoders with EtherNet/IP, EtherCAT®, or Modbus TCP/RTU
  • Lika Electronic rotary and measuring wheel encoders

Rotary encoders utilize an optical or magnetic disc and sensing head internal to the encoder to measure rotational motion. The resolution is typically expressed in pulses per revolution (PPR) or lines per revolution (LPR). The pulses produced by these encoders can be used to calculate an object's velocity, distance traveled, position, etc.

Rotary encoders are available in two main types:

  • Incremental encoders provide relative information about the motion of the shaft (angular displacement and direction of travel). They provide no information about the shaft angle on power-up and usually require a homing routine for initialization.
  • Absolute encoders provide the angular position of the shaft at all times and can detect the exact shaft angle on power-up. Multi-turn, absolute encoders also track "turns" for applications where the measurement point (shaft) cycles repeatedly. Energy harvesting models track rotary position and "turns" even when system power is off.

Several models are available with various output types, speed ratings, diameters, connections, and resolutions (up to 16384 PPR).

Starting at
$101.00
(A41S-0200-HZCP6-AL2)

LEARN MORE
CUI Configurable Modular (Kit) Encoders for Step Motors

Modular Kit Encoders for Step Motors

SureStep® modular encoders for stepper motors and motor/drives are traditional optical encoders with convenient bolt-on options (dual shaft SureStep motors have the proper mounting holes predrilled). Replacement modular encoders for select SureStep® integrated motor/drives are also available.

Extremely rugged AMT series encoders from Same Sky® use state-of-the-art capacitive technology and are available in fixed resolution or configurable models. Configurable models use either DIP switches or the free AMT Viewpoint configuration software to set the resolution (software also allows alignment of the Z-pulse)

  • Capacitive or optical encoder technology
  • Configurable and fixed resolution models
  • Compatible with all dual-shaft stepper motors in various NEMA sizes
  • Compatible with select integrated motor/drives
  • Quadrature output signals
  • Single-ended (totem-pole) and line driver output models
  • FREE downloadable configuration software for appropriate models

Starting at
$25.00
(AMT102-V)

LEARN MORE
Draw Wire Encoders

Draw Wire Encoders

New!


Draw wire encoders use a steel cable wrapped on a spring-loaded reel to measure distance. The reel is connected to a rotary encoder or potentiometer that can provide very accurate feedback of how far the steel cable has been extended.

Typical applications include linear measuring and vertical lift or cylinder stroke measurement.

  • Encoder output models offer quadrature pulse output with measuring lengths up to 10m
  • Fixed resolution analog output models offer 0-10 V or 4-20 mA output with 2m measuring length
  • Programmable analog output models offer scalable 0-10 V or 4-20 mA output with measuring lengths up to 10m

Starting at
$249.00
(DWI-2M-H0500-RL2)

LEARN MORE
Encoder Accessories

Encoder Accessories

Simplify your installation with ready-to-use couplings, mounting brackets / flanges, and wiring cables / connectors. Couplings provide a connection between encoders and solid shafts. We offer fiberglass and aluminum couplings for metric, S.A.E. and metric-to-S.A.E. applications. Signal & configuration cables and connectors are also available where optional or required.

  • Encoder configuration software
  • Encoder couplings
  • Encoder mounting brackets and flanges
  • Servo mount clamps
  • Shaft reducer bushings for hollow shaft models
  • Replacement encoders and wheels for linear measuring wheel systems
  • Programming cables and software for configurable models
  • Encoder cables and connectors
