Digital Pressure Switches/Transmitters

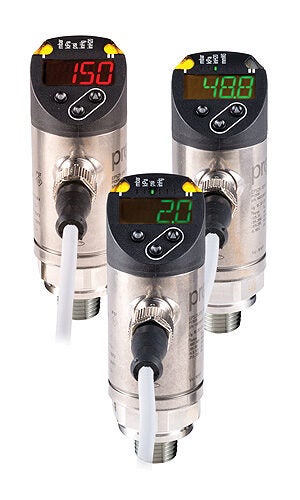

EPS Series Digital Pressure Transmitters

EPS series digital pressure sensors are ideal for industrial pressure measurement and indication in both gas and liquid applications. Their compact and robust design and construction withstands extreme shock and vibration, provides high accuracy and reliability, and incorporates the best combination of overpressure, burst pressure, and long-term stability for each measuring range.

• Measuring ranges from vacuum to 5800 psig
• PNP or NPN, N.O. or N.C. selectable discrete switch outputs
• 4 to 20 mA or 0 to 10 VDC selectable analog output, depending on model
• 18 to 30 VDC operating voltage
• Simple pushbutton setup
• Selectable engineering units such as psig, bar, mbar, kPa, MPa, inches of water column, and inches of mercury can be displayed on the built-in two-color, 4-digit display
• Optimum visibility and orientation with 345^° rotatable stainless steel housings
• 1/4" NPT male process connection
• IP67 ingress protection rating
• 4-pin M12 electrical connection
• 3-year warranty
