Continuous flexing data cable is designed and tested for constantly moving applications with high mechanical load. Available with up to 4 twisted pairs, these overall-shielded cables are resistant to sunlight, oil penetration and are flame retardant. Order cable cut to your specified lengths, or in any bulk length.

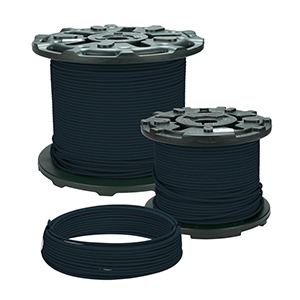

Continuous Flexing Control and Signal Cable
Click or go to
www.automationdirect.com/VID-WD-0016for a short introduction on our cut to length cable
igus Chainflex CF211 and CF11 series control and signal cable is specifically designed, tested, and manufactured to reliably serve continuous flexing, high mechanical load application requirements. It is an excellent choice for connecting low-voltage signals such as encoders, position sensors and analog signals. This cable will provide a guaranteed service life between 5 million and 10 million cycles when operated within specified conditions.
- 0 .14 mm2 to 0.50 mm2 (26 AWG to 20 AWG)
- 1, 2, 3 or 4 twisted pairs with overall shield
- Color-coded TPE mixture insulation
- Halogen-free PUR, halogen-free PVC or standard PVC outer jackets
- Flame retardant, sunlight / oil resistant low-adhesion pressure extruded outer jacket conforms to e-chains requirements
- UL Recognized type AWM (appliance wiring material)
- Cut to length in 1-foot increments (20 foot minimum)
Starting at
$1.48 / ft.
(20 ft. min.)
(CF211-02-01-02-1)
For part listings and specifications, go to Shop Now
