Cables > Bulk Multi-Conductor Cable > Continuous Flexing Industrial Ethernet Cable

Continuous Flexing Industrial Ethernet Cable

Continuous flexing industrial Ethernet cable is designed for constantly moving applications such as robotic arms or on moving equipment. Rugged outer jackets provide weather and hazard resistance, as well as flame retardance. Cable is available in shielded or unshielded styles with up to 4 twisted pairs. Order cable cut to your specified lengths, or in any bulk length.

Unshielded

Shielded

Shop Now

Heavy Duty Continuous Flex Ethernet Cable

Quabbin� Shielded and Unshielded Continuous Flexing Ethernet Cable

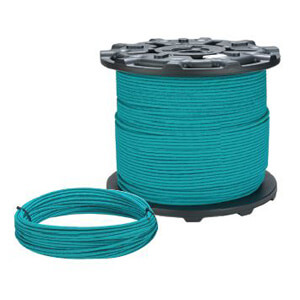

Flexing Industrial Ethernet Cable

[enlarge image]

Flexing Ethernet Cable
(unshielded & shielded)
2-pair cables also available

Designed for use in EtherNet/IP� systems

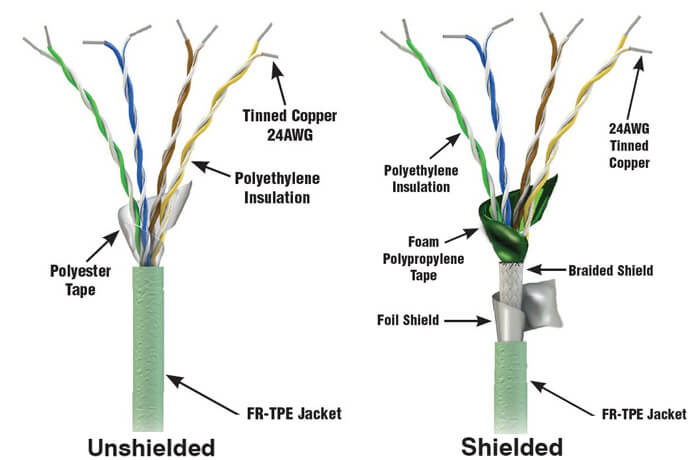

24 AWG, 2 or 4 twisted pairs with high density polyethylene insulation
Unshielded or overall braid and foil shields
Pressure extruded FR-TPE jacket for excellent chemical, moisture, and flame resistance, and exceptional low temperature flexibility
Available in Category 5e and 6/6a ... New!

Commercial Ethernet cables have a tube jacket surrounding the conductor pairs. This jacket design has room for the pairs to move around and even untwist in flexing applications, resulting in early mechanical or electrical failure of the cable.

Quabbin� DataMax Extreme Industrial Ethernet cable jackets were developed to survive the many industrial hazards that commercial jackets will not.

DataMax Extreme cable jackets are pressure extruded over the cable core, effectively "locking" the conductor pairs in place. This type of jacket construction provides very stable electrical performance, even when the cable is impacted, bent, or repeatedly flexed. Pressure extrusion also provides a very smooth, round, and firm jacket allowing the cable to be flexed up to 10 million cycles without failure.

Unshielded - prices start at
$0.64 / ft.
(20 ft. min.)

Shielded - prices start at
$0.96 / ft.
(20 ft. min.)

Continuous Flexing Industrial Ethernet Cable Overview

Applications - Flexing versus Flexible

Continuous Flexing Cables: Cables designed to be exposed to constant flexing during their operation and withstand millions of these flex cycles.
Flexible Cables: Cables designed to be bent and routed in an installation then remain static. Think of this as "bendability". Note: Our current offering of Multi-Conductor Control Cable is Flexible not Flexing.

Features

Designed and tested for continuous flexing Industrial Ethernet applications
In compliance with TIA 568-C.2 Category 5e (Cat5e) and TIA 1005
Designed for use in EtherNet/IP� systems
24 AWG, 2 or 4 twisted pairs with color coded high density polyethylene insulation
Unshielded or overall braid and foil shields
Pressure extruded FR-TPE jacket for excellent chemical, moisture, and flame resistance, and exceptional low temperature flexibility
Mechanical properties tests include:
- minimum of 1 million cycles (10x cable O.D. minimum radius)
- minimum of 10 million cycles (20x cable O.D. minimum radius)
- minimum of 3 million cycles torsion test
UL Type CMX OUTDOOR - CM and UL AWM Style 2463 (80�C, 600V)
Cut to length in 1 foot increments with a 20 foot minimum length
Made in the USA
