Flexible multi-conductor control cable is commonly used to organize and simplify control signal wiring for facilities and machine assembly. Ideal for stationary or flexible (not continuous flexing) applications, these cables' outer jackets are resistant to sunlight, oil, and moisture, making them suitable for most environments. Order cable cut to your specified lengths, or in any bulk length.
Multi-conductor flexible control cable from well-known brands LUTZE and Southwire is available in a variety of gauge sizes from
20 AWG to 10 AWG with 3 to 41 unshielded or shielded conductors.

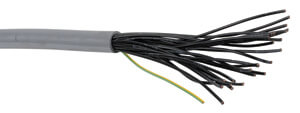

Individual copper conductors are stranded for flexibility, with black PVC / Nylon insulation and marked with numbers for
A convenient ground conductor wire is included in the conductor count of each cable and has insulation that is green with a yellow
Shielded and unshielded versions available; Shielded versions include a drain wire and tinned copper braid for maximum
effectiveness against external electrical noise interference.
Premium grade outer jacket is flexible, and resistant to sunlight, oil, and
moisture penetration, making these cables suitable for wet and dry locations as well as outdoors.
Tray Cable Exposed Run, UL Type TC-ER (600V rating), allows these cables to be installed between a cable tray and the utilization
equipment or device without the need for metal conduit and/or armor, resulting in installation and maintenance savings.
These cables are ideal for both stationary and flexible applications with limited mechanical stress and free movement without
any tensile stress, loads or forced movements (NOT suitable for continuous flexing applications).
When combined with AutomationDirect ZIPport multi-wire connectors, our flexible multi-conductor cables provide an economical
way to organize and simplify control wiring in facilities and during assembly of machinery.
Proudly made in the USA
Cut-to-length flexible control cable starts as low as
/ ft. (20 ft. min.)
For part listing and specifications, go to Shop Now
