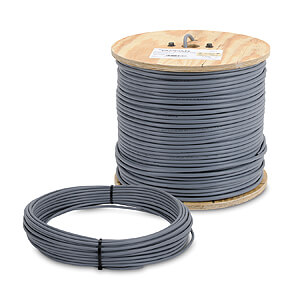

RS-485, RS-232, and RS-422 Data Cables

High quality, low-capacitance data cables from Southwire and Quabbin are designed with impedances specific for RS-232, RS-422, and RS-485 communication applications in industrial environments.

Features

• Tinned copper conductors in 20, 22, or 24 AWG twisted pairs to reduce electrical noise sensitivity.
• These multi-conductor cables are available in up to four twisted pair conductor color coded constructions.
• The polyethylene conductor insulation provides a very high insulation resistance with a low, stable dielectric constant resulting in lower capacitance and excellent velocity of propagation for superior signal transmission.
• The overall foil shield has 100% cable coverage for excellent protection against higher frequency noise. A drain wire is provided to easily terminate and ground the foil shield. A second shield layer consists of a woven braid that is ideal for minimizing low frequency interference while providing superior structural integrity to the overall cable.
• Cut to length in 1 foot increments with 20 or 25 foot minimum lengths
