Power entry modules are general-purpose single-stage IEC inlet filters specifically designed as line filters for 120/240 VAC, single-phase devices. Available with or without fusing and power switches, these modules typically mount through the electrical enclosure wall.
This page will refresh momentarily.
Warning
Some of the selected facets have been selected by the {{ assistanceData.title }} Help.
Resetting/clearing ALL facets will end {{ assistanceData.title }} Help.
![Help icon]()
Selection Assistance - {{ assistanceData.title }}

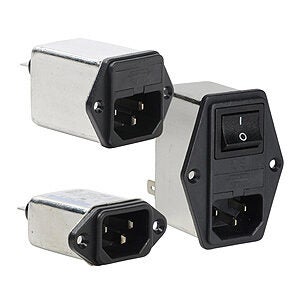

Power Entry Modules
Category Selection
Power entry modules provide low-cost in-line filtering of incoming power supplied using a standard 3-conductor IEC power cable. These modules provide power entry into an enclosure while at the same time preventing EMI from propagating on the power line. Models with integrated fuses and a power control switch are available.
For part listings and specifications, go to Shop Now
RID Series 1-phase Power Entry Modules
Roxburgh RID series power entry modules are general purpose single-stage IEC inlet filters specifically designed as line filters for 120/240 VAC devices.
- 0-250 VAC, 0-60 Hz, single-phase
- Current ratings: 1A, 3A, 6A, and 10A
- Metal case, miniature type
- Screw mount with 1/4" quick disconnect terminals
- Designed to be through-hole mounted in a cabinet or enclosure
- Protective boot available for extra protection (PN: SLV45)
- RoHS compliant, UL and CSA recognized (RID-1042-H is not CSA)
Starting at
$10.50
(RID-0142-H)
RIR Series 1-phase Power Entry Modules
Roxburgh RIR series power entry modules are specifically designed as single-stage line filters for 120/240 VAC devices where fusing is desired.
- 0-250 VAC, 0-60 Hz, single-phase
- Current ratings: 2A, 4A, and 6A
- 5mm x 20mm glass fuse included in each module; one spare fuse in fuse tray
- Screw mount with 1/4" quick disconnect terminals
- Compact, slim profile with metal case
- Replacement fuses available
- Protective boot available for extra protection (p/n: SLV48)
- RoHS compliant, CE, UL, and CSA recognized
Starting at
$26.00
(RIR-0222-H)
RIP/RIQ Series 1-phase Power Entry Modules
Roxburgh RIP/RIQ series power entry modules are specifically designed as single-stage line filters for 120/240V AC devices where fusing and a power switch are desired.
- General purpose fused and switched IEC inlet filter
- 0-250 VAC, 0-60 Hz, single-phase
- Current ratings: 2A, 4A, and 6A
- Single fuse and double pole switch
- 5mm x 20mm glass fuse included in each module; one spare fuse in fuse tray
- Snap-In (RIQ) or flanged screw mount (RIP) with 1/4" quick disconnect terminals
- Compact, slim profile with metal case
- Replacement fuses available
- Protective boot available for extra protection (p/n: SLV47)
- RoHS compliant, CE, UL, and CSA recognized
Starting at
$43.00
(RIQ-0242-H2)
