Open and closed-type devices are available that meet UL1449 Type 1 requirements for surge protection in power applications. Mersen STXR series NEMA 4X-rated enclosed devices are ideal for branch panel or equipment power protection up to 600 VAC. Dehn DG-MU series modular DIN-rail mount devices are suitable for common electrical systems up to 550 VAC; replacement protection modules are available.
Surge Protection Devices

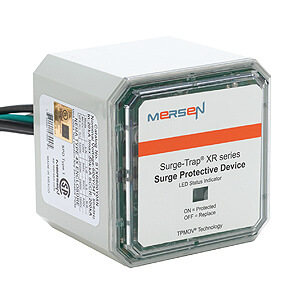

Mersen STXR Series Surge-Trap® Surge Protective Devices
The Surge-Trap® STXR series meets requirements for UL1449 Fourth Edition and is ideal for the replacement of obsolete surge arrestors. The TPMOV® technology makes these some of the safest products available.
- The small, compact design and line or load installation flexibility makes this unit perfect for branch panel and/or individual equipment protection.
- Protect sensitive equipment from costly downtime or damage with these high-performance surge protective devices.
Features:
- Designed with industry leading Mersen TPMOV Technology
- LED status indicator
- NEMA 4X enclosure for outdoor or indoor use
- Fits 3/4" knockouts with 3' leads for easy installation
- Optional mounting bracket for surface mount applications
- For use in ANSI/UL Type 1 or 2 SPD installations
- Up to 7 modes of Protection (L-N, L-L, L-G optional, N-G optional)
- 5-year warranty
Ratings:
- Volts (Un): 120-600VAC
- Nominal Discharge Current Rating (In): 10 - 20 kA
- Surge Capacity: 50kA
- Short-Circuit Current Rating (SCCR): 200kA
Approvals:
- ANSI/UL 1449 4th Edition, Type 1 SPD, File E210793
- CSA C22.2, Type 1 SPD, File 162842
- ANSI/IEEE C62.41.1, C62.41.2, C62.45
- UL96A Lightning Protection
Applications:
- AC Distribution
- Power supplies
- Drive protection
- Fire alarms
- Control panels
- Telecommunications
- Residential
- IT / Data centers
Starting at
$143.00
(STXR120P05)
Mersen Surge Protection Devices

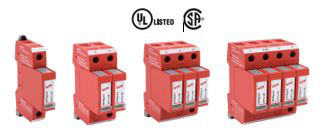

DEHN RED/Line Modular DIN-Rail Surge Protective Devices
The modular DEHNguard surge protectors are DIN-rail mounted units that set new standards of safety and user-friendliness. These SPDs are UL 1449 4th Edition certified, are deigned for all common electrical power system configurations, and are ideal for use in the United States and Canadian electrical panel markets.
For maximum reliability, the Thermo Dynamic Control monitoring device evaluates the intensity of the discharge current and the surface temperature of the heavy-duty varistor.
Features:
- Prewired complete unit
- No additional overcurrent protection devices needed
- High discharge capacity due to heavy-duty zinc oxide varistors (Imax 50kA, 8x20µs)
- Replacement protection modules available
Ratings:
- Surge Capacity: 50kA
- Short circuit current rating (SCCR) 200kA
Approvals:
- ANSI/UL 1449 4th Edition, Type 1 SPD, File E319777
Surge Protector Types:
- DEHNguard SU-1P: For use in 1-phase applications
- DEHNguard MU 3PY:: For 3-phase Wye electrical systems
- DEHNguard MU 3PD:: For 3-phase Delta electrical systems
- DEHNguard MU 3PH:: For 3-phase High-leg Delta electrical systems
Starting at
$62.00
(908090)
DEHNguard Replacement Modules
The DEHNguard varistor based protection modules distinguish themselves by their outstanding performance and sophistication. These compact protection modules incorporate the complete protective circuit as well as the monitoring and disconnection device.
Features:
- Inspection window shows a green flag to indicate the protection module is available
- Mechanically coded to ensure against incorrect module installation
- Protection modules are easily replaced without tools by simply pressing the user-friendly module release button
- High discharge capacity due to heavy-duty zinc oxide varistors
- High reliability due to Thermo Dynamic Control SPD monitoring device
Ratings:
- Surge Capacity: 50kA
- Short circuit current rating (SCCR) 200kA
Approvals:
- ANSI/UL 1449 4th Edition, Type 1 SPD, File E319777
Starting at
$59.00
(908011)
