Multi-Function Digital Counter / Timer / Tachometers
Versatile digital multi-function relay units are easily configured as a digital counter, timer, combination timer-counter, or tachometer. The two-color LCD shows values, settings, and setup parameters, easily set using the externally accessible DIP switches and the lockable keypad.

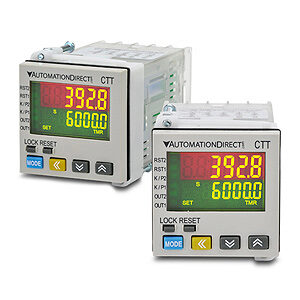

Multi-Function Digital Counter / Timer / Tachometer
The versatile CTT series multi-function devices are easily configured for operation as a digital counter, digital timer,
combination timer-counter or digital tachometer. They can also be used as totalizers.
The two-line, 6-digit, two-color LCD display shows the counter, timer, or tachometer present values,
setting values, and menu parameters during setup. Additional individual indicators are provided for inputs, outputs, and functions.
Process control parameters are easily set using the externally accessible DIP switches or the lockable keypad.
Accepts inputs from a wide variety of NPN, PNP, or dry contact sensors
Selectable counting speeds from 1 to 10,000 cycles per second
Output 1 is a single-pole, single-throw (SPST) relay and NPN transistor that operate concurrently.
Output 2 can be ordered as either a single-pole, double throw (SPDT) relay or NPN transistor.
Standard 1/16 DIN size with included panel mounting clip and gasket.
Available in 100-240 VAC and 24 VDC powered models
UL508 listed (E311366), cULus, CE marked
For part listings and specifications, go to Shop Now
