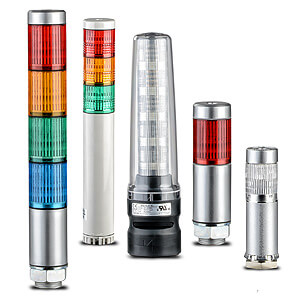

Patlite signal towers provide illuminated and audible status indication for machines, systems and processes. Convenient preassembled units in four diameters include optical elements in the most popular combinations of colors; easily replace or add high-intensity LED elements with no rewiring necessary.
Patlite® Pre-Assembled Stack Light Units and Accessories
Category Selection
Patlite LED Signal Towers and Accessories
Signal Towers
- 5 family sizes: 25mm, 30mm, 40mm, 70mm and 100mm
Accessories
- Replacement / add-on light elements
- Mounting brackets and poles
- Various replacement parts
- O-rings
- Assembly screws
Features and Benefits
- Aluminum and ABS body construction –superior impact and heat resistance
- Prism-cut lens design for enhanced visibility from any direction
- Impact and heat resistant polycarbonate resin lens for superior durability and light transmission
- High intensity LED illumination
- Easily Interchangeable modules do not need re-wiring, even after installation
- Various mounting options available
25mm (ME & MES Series)
MES-A and ME-A 25mm Super Slim Signal Towers
These rust-free aluminum body signal towers are designed to be direct mounted. LED module lenses are clear and change color when activated. The super slim design is ideal for tight spaces.
- Aluminum and ABS body construction –superior impact and heat resistance
- Prism-cut lens design for enhanced visibility from any direction
- Impact and heat resistant polycarbonate resin lens for superior durability and light transmission
- High intensity LED illumination
- Easily Interchangeable modules do not need re-wiring, even after installation
- Various mounting options available
- 1 to 4 tiers (LED modules)
- PNP models IP65, NPN models IP42
Patlite 25mm LED Stacklight Signal Towers Overview
30mm (MP & MPS Series)
MPS and MP 30mm Signal Towers
These LED towers offer superior impact and heat resistance and have an ABS resin main body; designed for direct mounting and have double insulation for enhanced durability and safety.
- 1 to 4 tiers
- IP65 (IEC 60529)
40mm (LR4 Series)

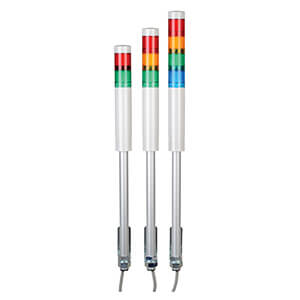

LR4 40mm Signal Towers
LR4 Series Tower Lights conform to the new RoHS2 directive of CE. A modular "Twist and Lock" system easily customizes and reconfigures the LR4 LED and sound modules.
- 2, 3 and 4 tiers (LED modules)
- Easily add or replace LED modules, no tool needed,
- Interchangeable LED Modules, even after installation
- Optional alarm module with selectable sound patterns
- IP54 for pole-mounted models; IP65 for direct mount; NEMA type 4x and 13 for both
40mm (LCE Series)
LCE 40mm Signal Towers
The LCE Series features low maintenance and energy efficiency using LED technology.
- 2 to 4 tiers
- Two built-in alarms (FB model) with selectable sound patterns
- IP54 for pole mounted models; IP65 and UL type 4, 4x, and 13 for direct mount
70mm (LS7 Series)
LS7 70mm Signal Towers
The LS7 Series feature a smooth body surface that reduces adhesion of water and dust. There are no exposed screws, shafts or other metals making these signal towers adaptable in many environments. This model is suitable for high pressure and high temperature wash down environments.
- 3 tiers and 5 tiers
- Available buzzer models
- IP65 (buzzer models IP54; WC9 models IP69k)
100mm (LKEH Series)
LKEH 100mm Signal Towers
Large signal horn and light tower combination, ultra-bright LEDs with 100mm lens, alarm volume up to 105 dB.
- Signal tower with continuous or flashing lights, 32 alarms
- 1, 2, 3 and 4 tiers (LED modules)
- Meets IP53 standards
