Patlite 100mm Pre-Assembled Stack Light Units
Patlite 100mm combination signal towers provide large-footprint illuminated and audible status indication for machines and systems. LKEH series preassembled units with polycarbonate main bodies are available in the most popular combinations of colors, with interchangeable light modules that require no rewiring. An optional SD card for field configurability is available.
Stride Interactive Product Tour Request Form
Select a job title

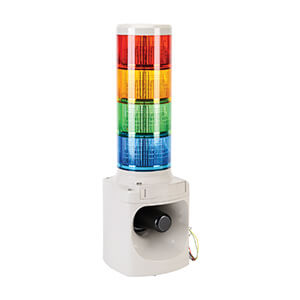

PatliteŽ 100mm (LKEH Series) Signal Towers
LKEH Series 100mm Stack Light Units and Accessories
Large signal horn and light tower combination
Ultra-bright LEDs with 100mm lens
Alarm volume up to 105 dB LKEH Series Features
Signal tower with continuous or flashing lights, 32 alarms
1, 2, 3 and 4 tiers (LED modules)
Prism-cut lens design for enhanced visibility from any direction
Optional alarm module with selectable sound patterns
Meets IP53 standards
Designed to operate in temperatures from
-10°C to +50°C [+14°F to +122°F]
Body length from 265 to 445mm [10.4 to 17.5 inches]
Available in both PNP and NPN polarity
Defaults to 1-4 tiers of lights, depending on model
Optional SD card for field configurability (sold separately)
Lens is superior impact-resistant and light-translucent polycarbonate resin
Conforms to CE requirements
UL Recognized Components (File No. E215660)
UL 508, CSA-C22.2 No.14, RoHs Directive (EN 50581)
Optional/replacement accessories: LED modules, center screws, replacement head cover, replacement slot cover, wall mount bracket, 2GB SD card with adapter
Patlite 100mm LKEH series stack lights start at
LKEH series LED module colors available
