Stacklights > Patlite Pre-Assembled Stack Light Units and Accessories > 25mm (ME & MES Series)

Patlite 25mm Signal Towers

Patlite 25mm signal towers provide illuminated and audible status indication for machines and systems. MES-A and ME-A series preassembled units in the most popular combinations of colors with rust-free aluminum bodies are designed to be direct mounted; the super slim design is ideal for tight spaces. Interchangeable light modules require no rewiring.

25mm (ME & MES Series)

30mm (MP & MPS Series)

40mm (LR4 Series)

70mm (LS7 Series)

100mm (LKEH Series)

Shop Now

Patlite� 25mm (ME & MES Series) Pre-Assembled Stack Light Units

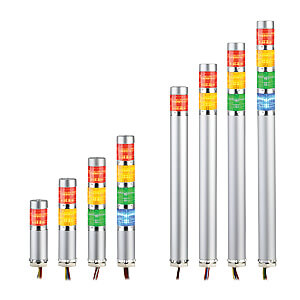

ME and MES 25mm Super Slim (Aluminum Body) Signal Towers

These rust-free aluminum body signal towers are designed to be direct mounted. LED module lenses are clear and change color when activated. The super slim design is ideal for tight spaces.

1 to 4 tiers (LED modules)
Two main body lengths: ME and MES (short)
Prism-cut lens design for enhanced visibility from any direction
Impact and heat resistant polycarbonate resin lens for superior durability and light transmission
High intensity illumination design
Direct mount installation with a single hole
Interchangeable modules do not need re-wiring, even after installation
Corrosion resistant anodized aluminum body
NPN models IP42; PNP models IP65
UL 508, CSA-C22.2 No.14, RoHs Directive (EN 50581)
Optional/replacement accessories: LED modules, center screws, mounting bracket, cap
